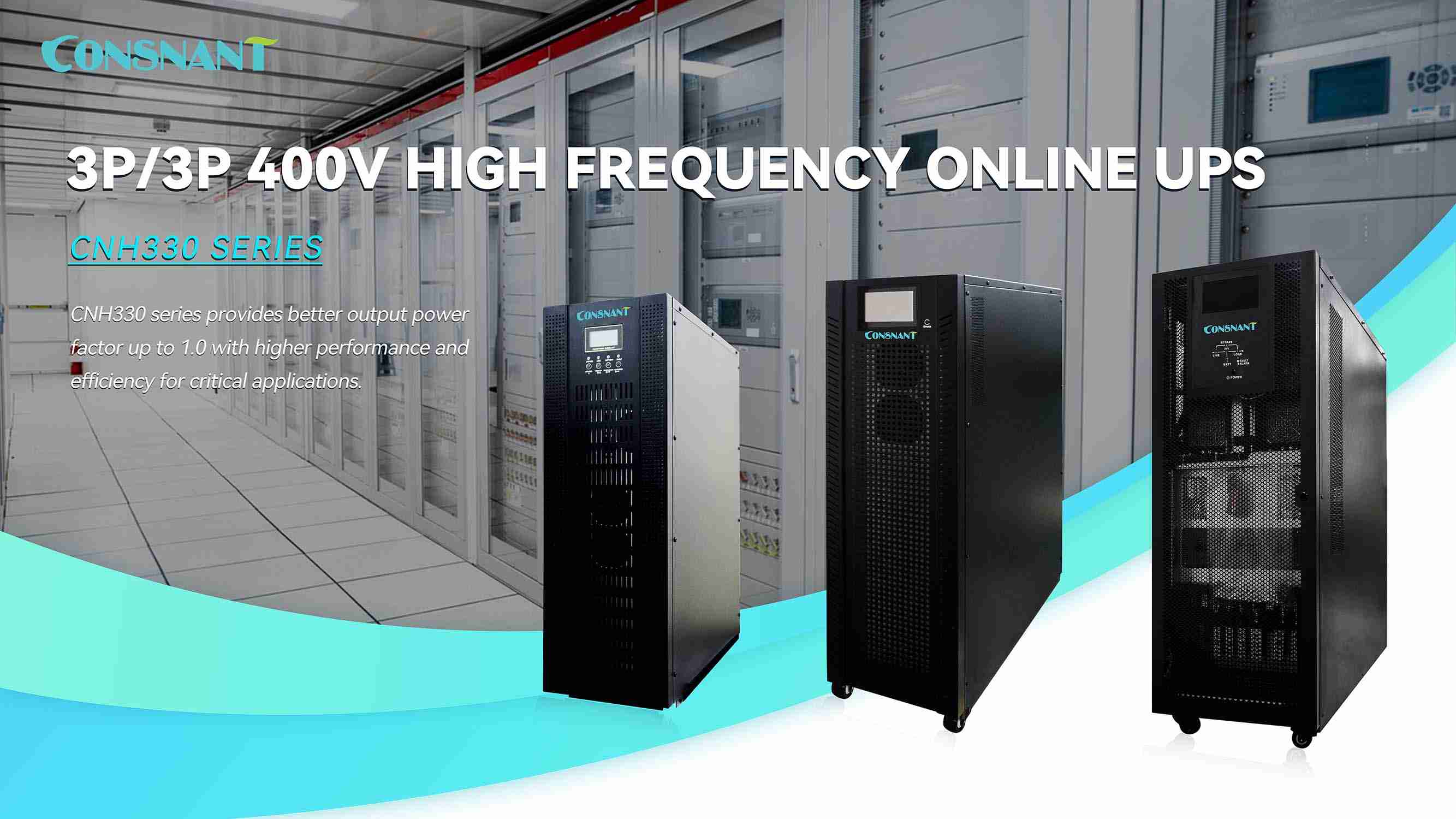

Consonant Three Phase High Frequency Online UPS 10-100KVA（CNH330 series）

Introduction

In today's digital age, the reliability of power supply is paramount for both businesses and critical infrastructure. A consistent and clean power source is essential to prevent downtime, data loss, and damage to sensitive equipment. This is where the Consonant Three Phase High Frequency Online UPS (Uninterruptible Power Supply) comes into play. Designed for applications ranging from 10KVA to 100KVA, this UPS system provides robust power protection for a wide range of industries, including telecommunications, healthcare, data centers, and manufacturing.

Key Features

● DSP technology guarantees high reliability

DSP and MCU dual chips to secure the product reliability.

● Output power factor 1

For critical applications,this 3-phase online UPS with output power factor 1.0 ensures higher efficiency and advanced performance.

● Adapting the latest Silicon carbide diodes to enhance the system efficiency

Through adapting the latest Silicon carbide diodes,no matter it's in AC mode and battery mode, the efficiency ishigher than 96%.

● Dual Inputs

CNH330 series is also available for optional dual inputs to support various in puts to have flexibility for systemconfiguration.

● Very powerful charger to shorten the recharge time

Adapting the charger rating equals to 30% of UPS capacity on 10/20Kva.Charger rating is also 20% of UPS capacity for 30Kva and above models.

● Adjustable charging current

Users can adjust charging current via LCD setting based on various battery configurations.

● Parallel up to 6 units with common battery pack

Supports maximum 6 units in parallel with common battery pack for the parallel system.

● 5" color touch type LCD display

Inbuilt 5"color touch type LCD display with 500 event/data logs.

● Optional programmable relay dry contact card

Configurable4 dry contact ports definition through software for various applications.

● Voice warning / error code notice

Inbuilt the speaker to have human voice for the warning / error codes notice instead oftraditional beeps.

● High overload capability

Supporting 110% overload capacity for 60 min and up to 1 min overload condition at 150% load.

● Adjustable battery design

The number of connected batteries can be adjusted flexibly based on different power demands.

● Dynamic password feature optimizes service performance

This dynamic password is automatically generated from our exclusive utility tool. Each time when it is required to change service-related settings, this utility tool would generate an unique password on time basis. It secures UPS from unexpected operation due to unauthorized settings.

● Power walk-in function

CNH330 is designed to have flexible power walk-in by way of adjusting the power walk-in time. This setting will optimize generator sizing and reduce the impact to the AC source by having different walk-in time period for different paralleled UPS system when AC grid is recovered.

 Applications

The Consonant Three Phase High Frequency Online UPS is suitable for a variety of applications:

- **Data Centers**: Ensuring continuous operation of servers and networking equipment.

- **Healthcare Facilities**: Protecting critical medical equipment and ensuring patient safety.

- **Telecommunications**: Maintaining reliable communication networks during power outages.

- **Manufacturing**: Safeguarding sensitive machinery and production lines from power disturbances.

The Consonant Three Phase High Frequency Online UPS (10-100KVA) represents a significant advancement in power protection technology. With its high efficiency, robust design, and comprehensive features, it provides reliable and uninterrupted power supply to meet the demands of modern businesses. Investing in a high-quality UPS system like the Consonant model not only ensures operational continuity but also protects valuable assets against the unpredictable nature of power supply interruptions. As businesses continue to rely on technology for their operations, having a dependable power solution is no longer optional—it's a necessity.
