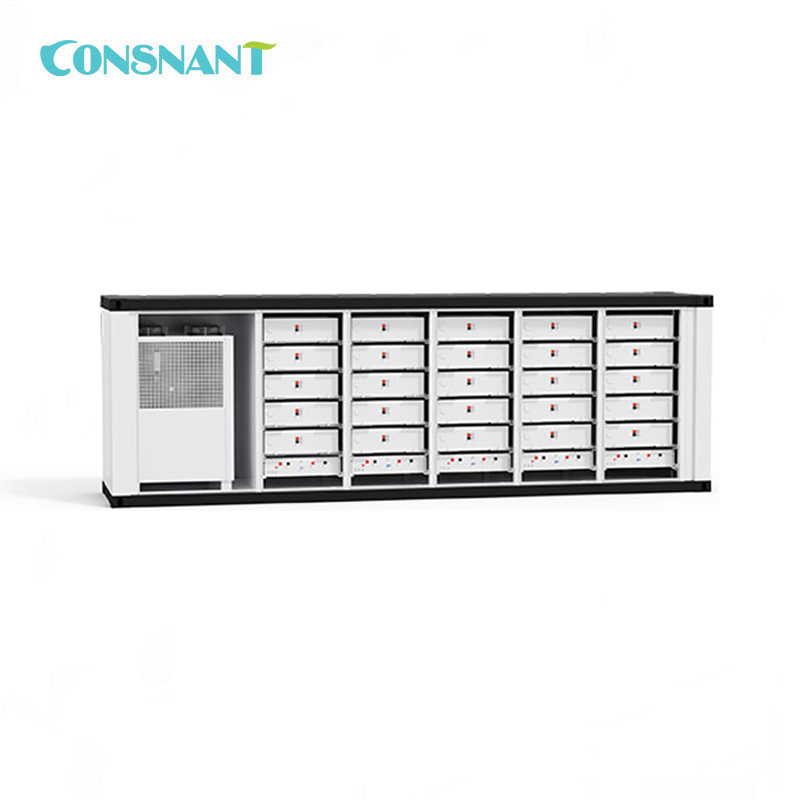

Model: ESS1-500/1075-0.4-L(DC plus AC)
Nominal energy: 1075kWh
Working voltage: 600V~876V
AC rated power: 500kw
Operating temperature: -30℃~55℃
Commercial and industrial user side, grid side, power generation side applications.
Item No :
ESS1-500/1075-0.4-L (DC plus AC)Order(MOQ) :
1 pcsPayment :
T/TProduct Origin :
ChinaColor :
White ,GreyShipping Port :
ShenzhenLead Time :
45 daysWeight :
11500 Kg1000V 2MWh Industrial and Commercial Energy Storage System
From standardized battery boxes to configurable modular energy storage systems, achieving adual-platforms and multi-series product system, to meet the whole scenario energy storage application on the user side, grid side, and power generation side for commerce and industry.
Product Features:
High Security: Three-dimensional security system, aviation-level extreme security
Ultra-high Yield: 3-5 years payback
Long Life: 15 years super long life
Intelligent and Friendly: Independent control of the cloud platform, simplified operation and maintenance
Super High Efficiency: Charge and discharge efficiency 92.5%, discharge depth 100%
Strong and Durable: 10,000 cycles
Super Low Cost: LCOS is reduced by 40%, and operation and maintenance costs are extremely low
Other Service
Service hours: 9:00am-19:00pm (China time)
Product service:
1. Pre-sales consultation; After-sales worry-free.
2. Support OEM.
3. Online guidance and Technical support.
Product Warranty:
Five year warranty period against the B/L date 45 days later.
Technical Parameters:
| Product Name | CNESS CUBE Mega 1000V platform (Energy configurable 0.4~2MWh) |
CNESS CUBE Mega 1500V platform (Energy configurable 0.7~4MWh) |
| Model | ESS1-500/1075-0.4-L (DC plus AC) |
ESS1-935/1860-0.7-L (DC plus AC) |
| DC side parameters | ||
| Cell type | LFP cell special for energy storage | |
| Group mode | 5*IP240S | IP416S*5 |
| Nominal energy | 1075kWh | 1860kWh |
| Working voltage | 600V~876V | 1040V~1518V |
| Rated charge/discharge ratio | 0.5P | |
| AC side parameters | ||
| AC rated power | 500kW | 935kW |
| Rated grid voltage | 380V | 690V |
| Rated grid frequency | 50HZ | |
| System parameters | ||
| System efficiency | ≥92.0% | ≥92.5% |
| Discharge depth | 100% | |
| Number of cycles | ≥10000 | |
| Operating temperature | -30℃~55℃ | |
| Cooling mode | Liquid cooling | |
| Fire protection system | Perfluoro+ Active early warning | |
| Size | DC side:6058*1300*2000(mm) AC side: 1300*1300*2200(mm) |
DC side:6058*1300*2896(mm) AC side:1300*1300*2400(mm) |
| Weight | 11500kg | 16500kg |
