Home ESS SmartCube Series

Capacity:10/15/20/25kwh

Rated voltage:51.2V

Application:

Household, Office

Item No :
SmartCube 10-25KW
Order(MOQ) :
1 pcs
Payment :
T/T
Product Origin :
China
Color :
White
Shipping Port :
Shenzhen
Lead Time :
2 weeks
Weight :
130-340 Kg

Inquire Now

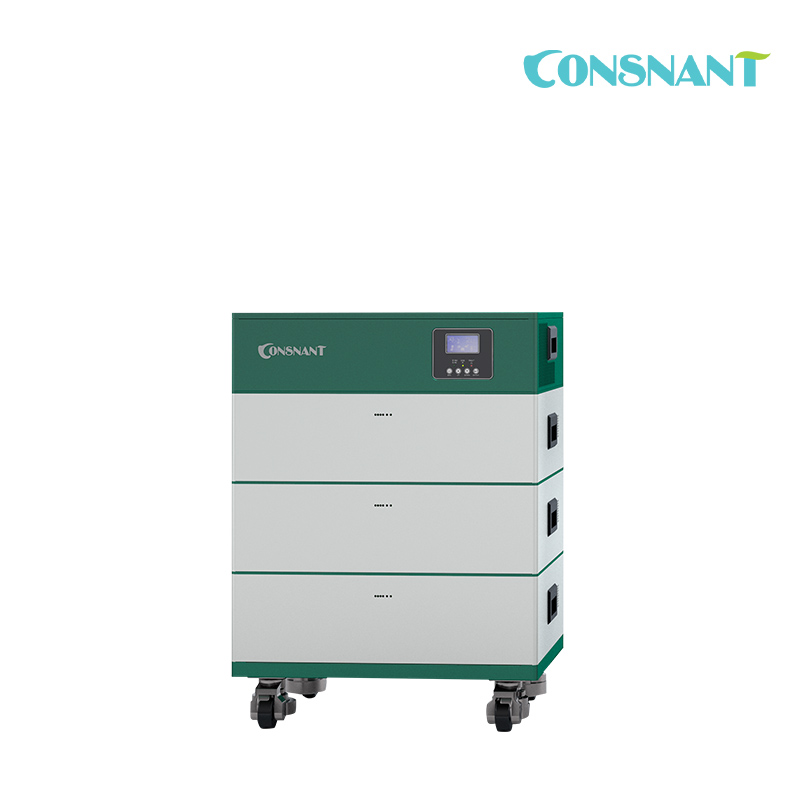

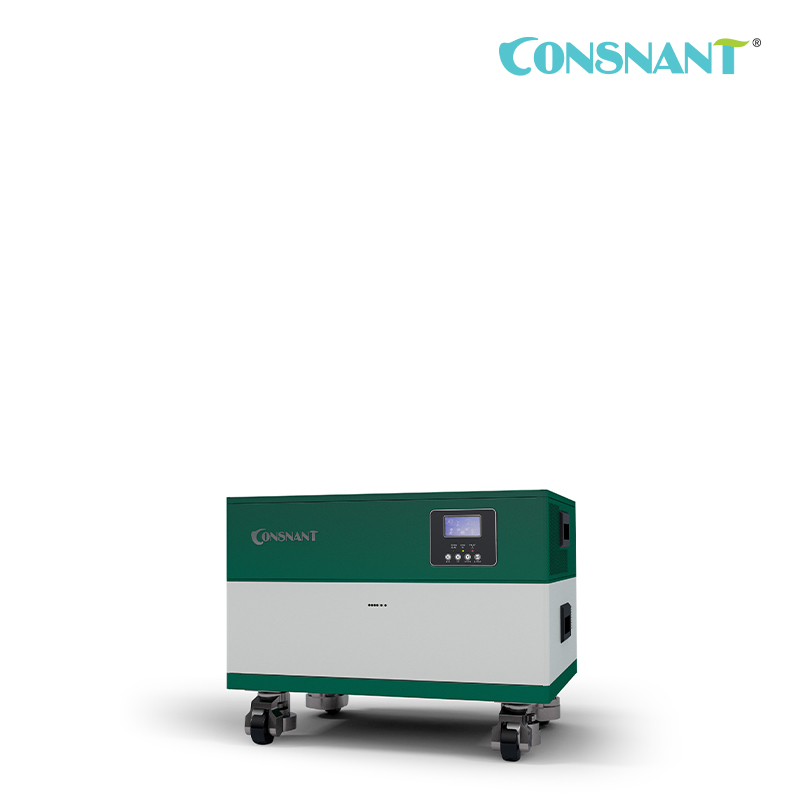

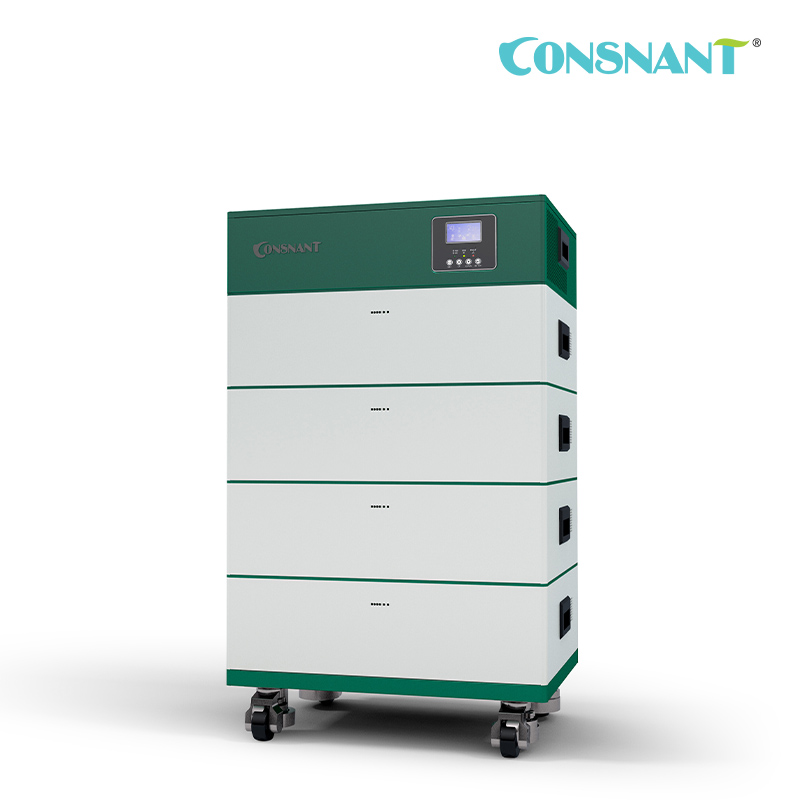

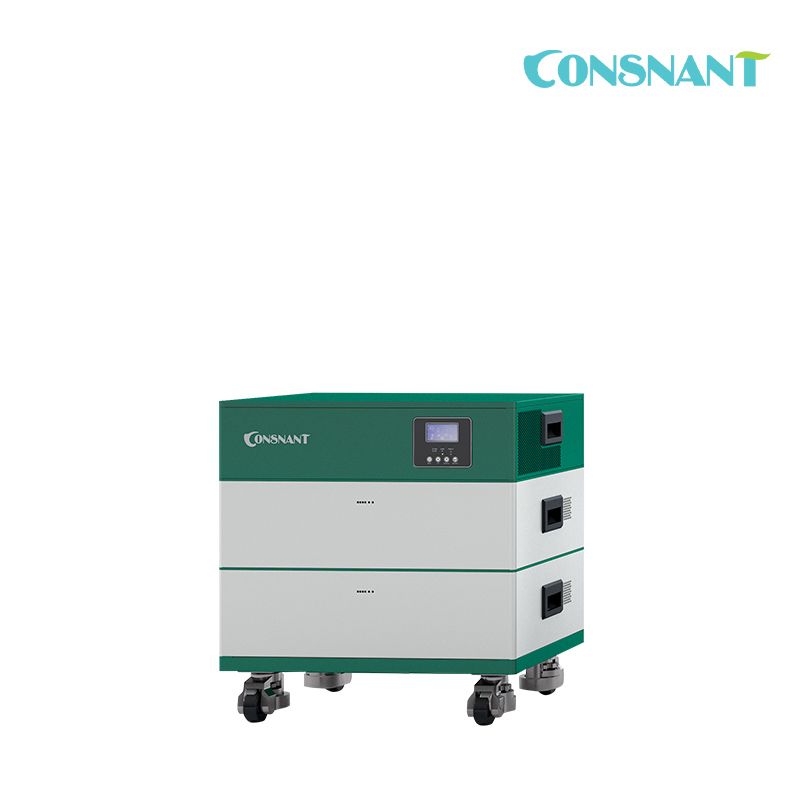

Home Energy Storage System Smart Cube 10-25KW

Description

Smart features:

All in one-battery with inverter

Integrated hybrid solar inverter with 100A MPPT,

Grade A LFP battery,

Smart LCD display and remote monitoring.

Modular Stacking Design:

Flexible power usage allocation,easy to expand capacity.

Built-in BMS:

Safeguard for battery, easy to maintance.

Pulley Design:

Chassis with pulley, easy to move.

Easy to use:

Intelligent user interface, internal plug and play, barrier-free operation.

Home Energy Storage System

Product Size:

Technical Parameters:

Model	SmartCube
Capacity	5KWH	10KWH	15KWH	20KWH	25KWH
Phase	Single-phase
Output power	3.5kw/5.5kw optional
Rated voltage	25.6V/51.2V
Rated capacity	100AH	200AH	300AH	400AH	500AH
Max.Solar Charge Current	100A
Max.AC Charge Current	60A
Expandable battery quantity	1~5 units
Optional capacity range	5~25KWH
Cooling-down method	Fan Cooling
Battery type	Lithium iron phosphate
Battery life	>15 years @25℃
Cycle life	6,000 times(25±2℃,0.5C charge and discharge)
Rated grid frequency	50Hz/60Hz(automatic detection)
Grid voltage range	170-280VAC(for personal computer); 90-280VAC(for home appliances)
Maximum PV input power	5000W/6000W
MPPT voltage range	120~450VDC
The charge/discharge efficiency	up to 93.5%
Compatible parameters
Certification	CE
Safety regulations	IEC 62109-1&-2,IEC 62477,EN61000,UN38.3
Mechanical parameters
Inverter Dimensions /Weight	610430158mm/16.5KG
Battery size / weight	610430180mm/48KG (per layer)
Chassis size / weight	610430110mm/8KG
Installation method	Stacking type
Enviromental parameters
Storage humidity	5% to 95% relative humidity (no condensing)
Operating temperature	-10℃~50℃
IP Class	IP21

Home energy storage systems in Germany

Home Energy Storage System 10-25KW.pdf
