Item No :
CNW310 6-10KVAOrder(MOQ) :
10 pcsPayment :
T/TProduct Origin :
ChinaColor :
RAL7035Shipping Port :
ShenzhenLead Time :
3 weeksWeight :

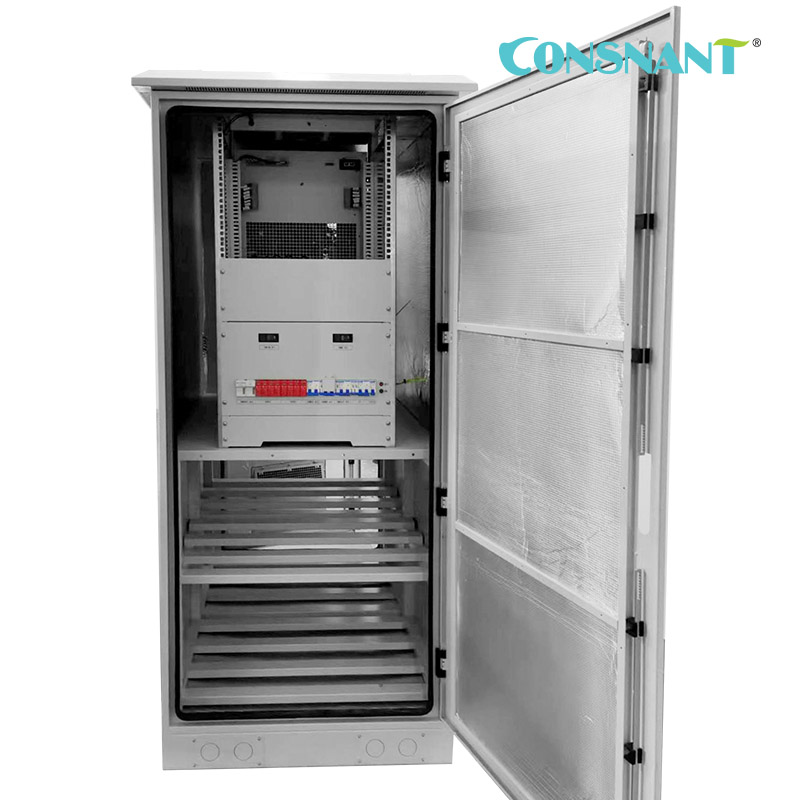

85-155 KgIP56 Outdoor Industrial UPS 6-10KVA with VRLA battery with cabinet air conditioner
Description
Application:
Outdoor communication/network equipment and traffic control system are usually used in corner of city, remoteroads, mountainous area, desert, island and other harsh environment, where the quality of the power grid is verypoor(the voltage has been in the range of lower than 160V or higher than 260V for a long time, and the frequencyhas changed abnormally). The low frequency outdoor UPS CNW310 series are specially design for these equipments, they has unique features like high temperature resistance, frost resistance, corrosion resistance, dustresistance, water resistance, lightning protection, remote control and detection and other advanced functions.They also have a wide range of input voltage and frequency, can meet the requirements of the outdoor powergrid, and provide stable power supply.
Product detail drawing
Features:
• Double-conversion online design, provides continuous pure sine wave AC power supply.
• Input and output are equipped with dual isolation transformers, provides double protection that is more secure.
• Equipped with a bypass isolation and bypass voltage stabilizing device, enables better compatibility withgenerator access.
• Wide input voltage range and frequency range (-45% to +35% of rated voltage and±10% of rated frequency),enables to well adapt to the power grid.
• Powerful comprehensive protection function.
• The protection level can reach IP56.
• Unattended and intelligent monitoring.
• The input and output system can be 1phase in / 1phase out, 3phase in/1phase out, or 3phase in / 3phase out.
Advantages of outdoor UPS：
• All-weather, wide-temperature outdoor uninterruptible power supply.
• Up to 18 hours backup time and 8,000 watts output power.
• Voltage regulation, noise filtering, and surge suppression.
• Unistrut, pad, and pole mounting options.
• Padlock hasp and optional key lock.
• Space to house customer-provided equipment.
• Lowest operating costs in the industry.
• No assembly required.
• Customization available.
Other Service
Service hours: 9:00am-19:00pm (China time)
Product service:
1. Pre-sales consultation; After-sales worry-free.
2. Support ODM and OEM.
3. Online guidance and Technical support.
Product Warranty:
One year warranty period against the B/L date 45 days later.（Possible to extend the warranty period to three years by add money）
Technical Parameters
|
Model |
CNW310-6KVA | CNW310-10KVA |
| Capacity | 4.8kw | 8kw |
| Type | True online double conversion and dual isolation transformer | |
| Norminal Voltage | 380/400/415Vac 3phase+Neutral+Ground | |
| Frequency | 50Hz/60Hz | |
| Built-in | Bypass isolation and bypass voltage stabilizing device | |
| Input | ||
| Input Votage Range | 380/400/415Vac±15%,3phase+Neutral+Ground | |
| Input Frequency Range | 50/60Hz± 5% | |
| Soft Start | 0-100% within 10 seconds | |
| Maximum Input Current |
27A | |
| Bypass Input | ||
| Voltage Range | 400 V± 15% 3phase+ground (can be set from the control panel to+ 5%～+25%) | |
| Frequency Range | 50/60Hz(automatic detection)±15% | |
| Inverter to Bypass | <2ms | |
| Output | ||
| Rated Output Voltage | 230 V±1%(steady load),230V±3%(dynamic load) | |
| Rated Output Current | 18 | |
| Output Voltage Setting | Output voltage can be set through LCD, range (210-240V) | |
| Crest Factor | 3:1 | |
| Frequency Accuracy | 50/60Hz±0.05Hz(battery powered) | |
| Power Factor | 0.8 | |
| Output Voltage Waveform Frequency Regulation | ±0.05 | |
| Adjustment range of AC output Voltage | ±2 | |
| Voltage Transient Change under Dynamic Loading | In a cycle of battery charging and discharging, the fluctuating of the output voltage from no-load to full-load will not exceed 5V | |
| Waveform Distortion | Linear load<5% | |
| Steady State Response Time | <10ms | |
| Overload Capacity | Rated current 110% for Continuous: 125% for 10 min: 150% for 1 min | |
| Battery | ||
| Battery Type | Lead acid (standard)/ lithium(optional) | |
| Nominal Battery Voltage | 192VDC | |
| Battery Capacity | 150Ah | |
| Floating Charge Voltage | 216VDC | |
| Equalizing Charging Voltage | 224VDC | |
| Cut-off Voltage | 168VDC | |
| Charging Current | Maximum 30A | |
| DC Bus Ripple | <1%(100% loading within 2H) | |
| Display | ||
| LCD touch screen | DC voltage,DC current,charging/discharge,output voltage,output current,input voltage,frequency,system temperature. | |
| Communication | ||
| Computer Interface | MODBUS TCP/IP (optional), RJ45 | |
| Dry Contact Function | 1.Battery discharge; 2.battery low voltage; 3.remote control to bypass output | |
| Alarm | Battery low;mains failure,low-voltage,over-voltage,over temperature, overload | |
| Working Enviroment | ||
| Working Temperature | -10℃~50℃ | |
| Relative Humidity | Maximum 95%( non condensation) | |
| Working Altitude | <1000m;>1000m(power derate 1% for every 100m; maximum 4000m) | |
| Storage Temperature | -5~45℃ | |
| Storage Humidity | 0~90% | |
| Noise(1 meter) | 48~54dB | |
| Physical Characteristics | ||
| Cooling Mode | Air conditioner + fan | |
| IP Class | IP56 | |
| Incoming Line Way | Bottom inlet | |
| Maintenance | Front,rear | |
| Estimated Weight(KG) |
1246 | |
| Dimension: WxDxH(mm) |
756*1200*1856 |
|
-----------------------------
