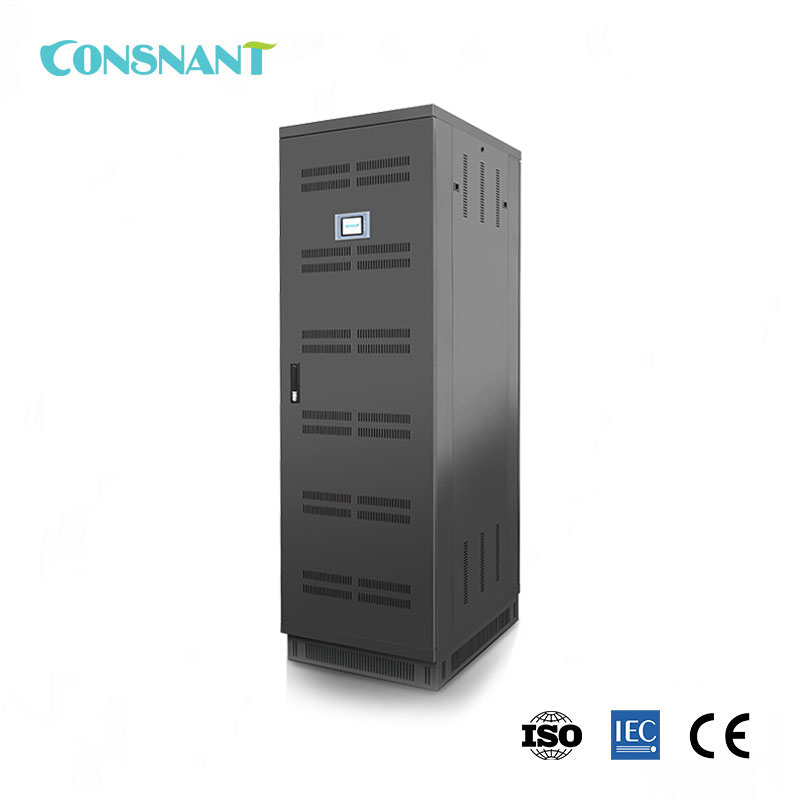

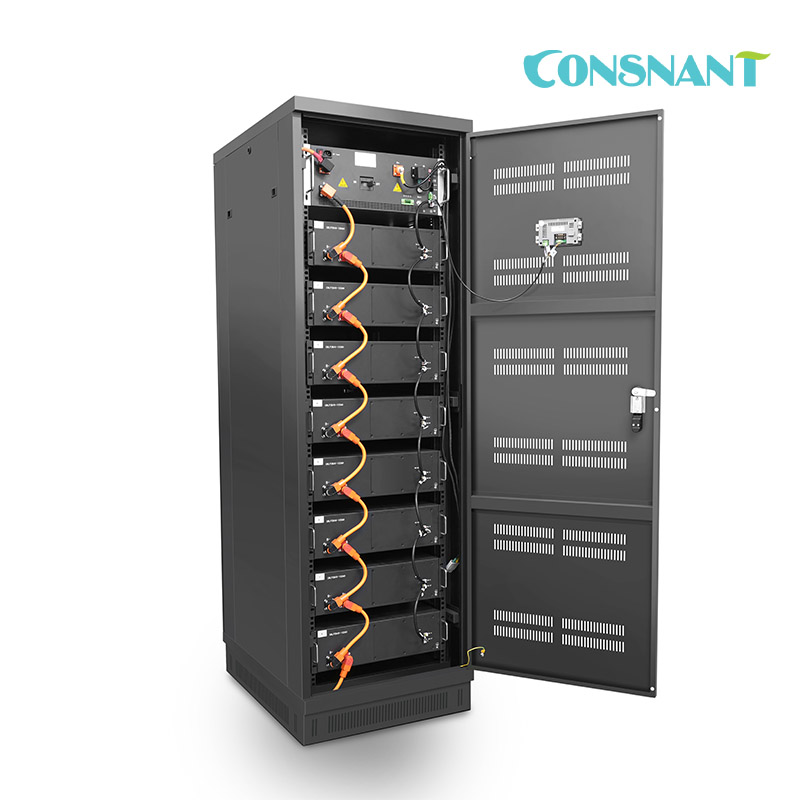

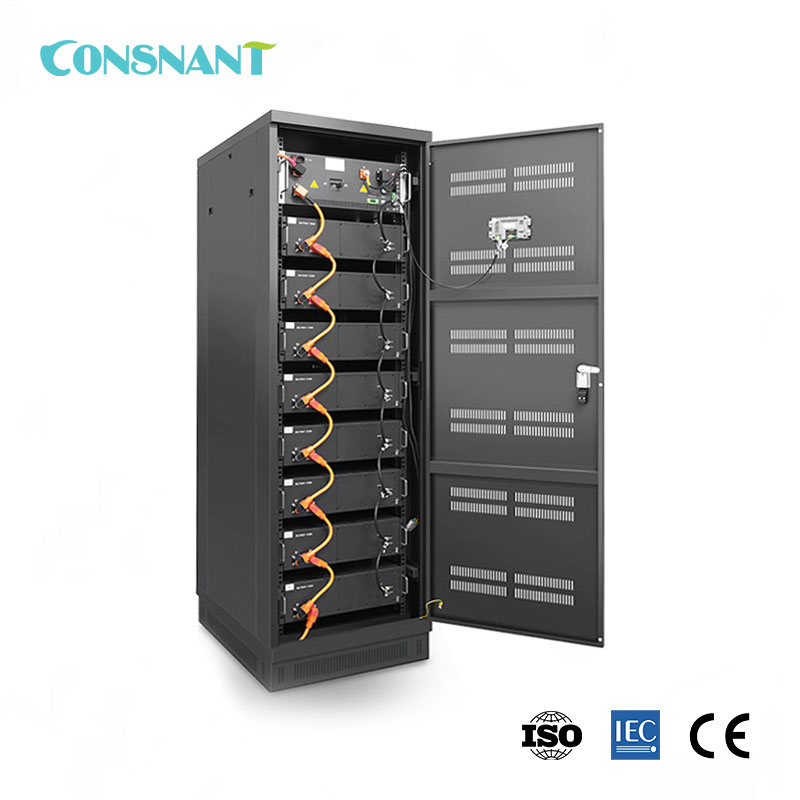

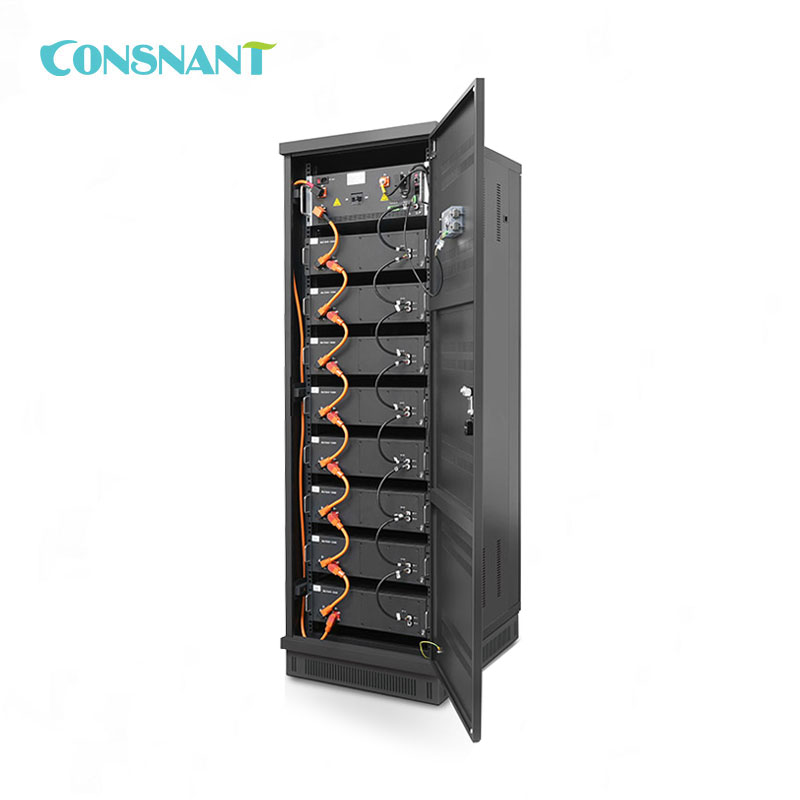

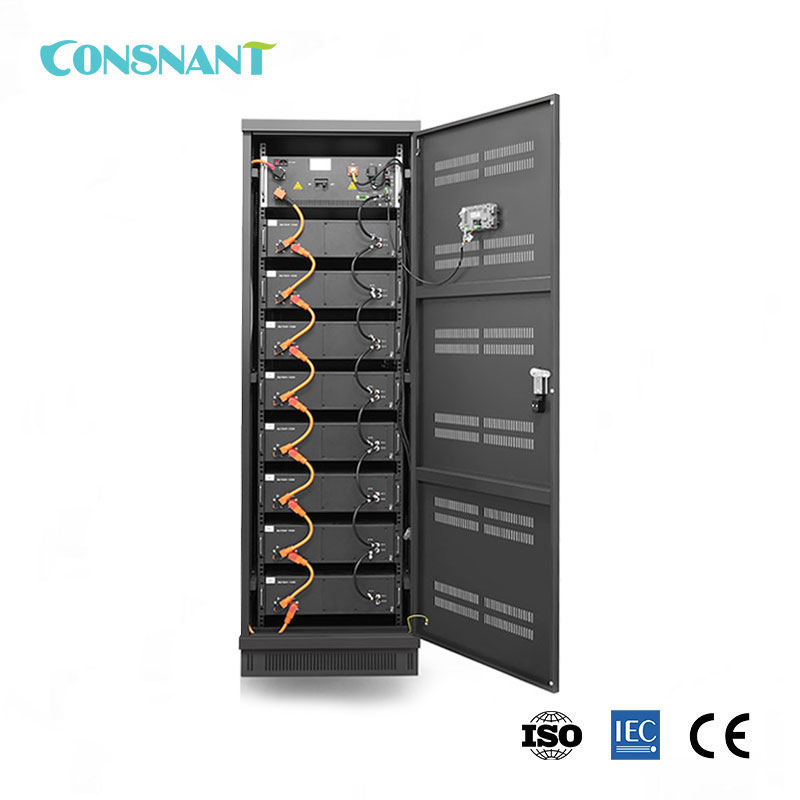

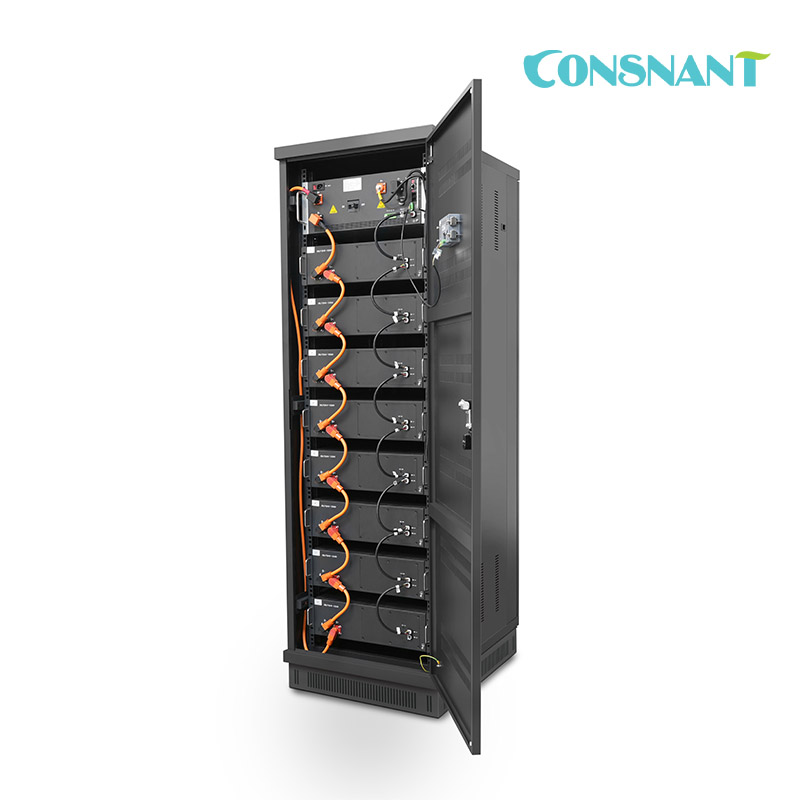

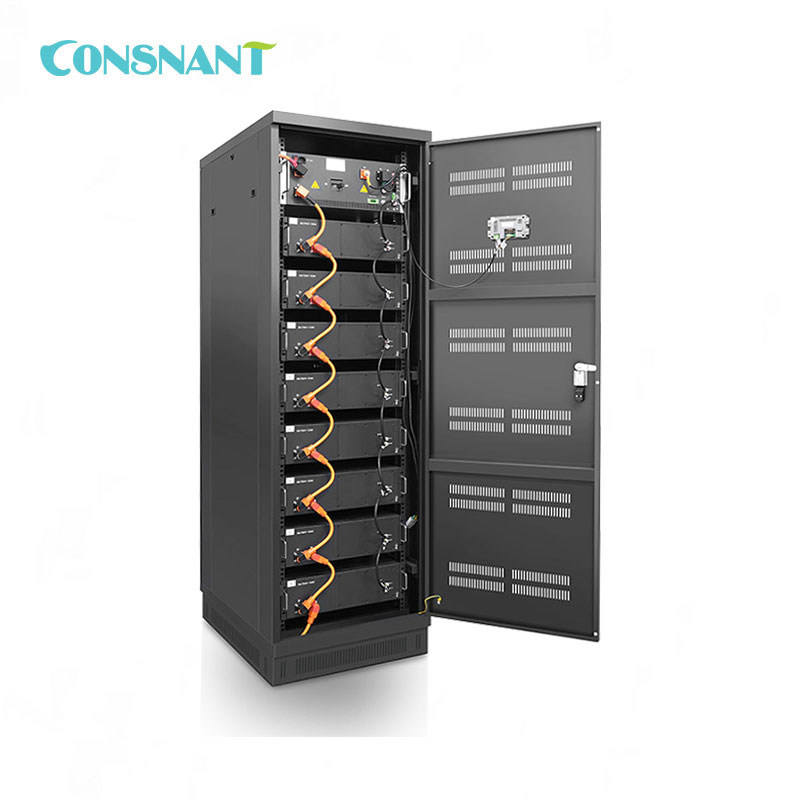

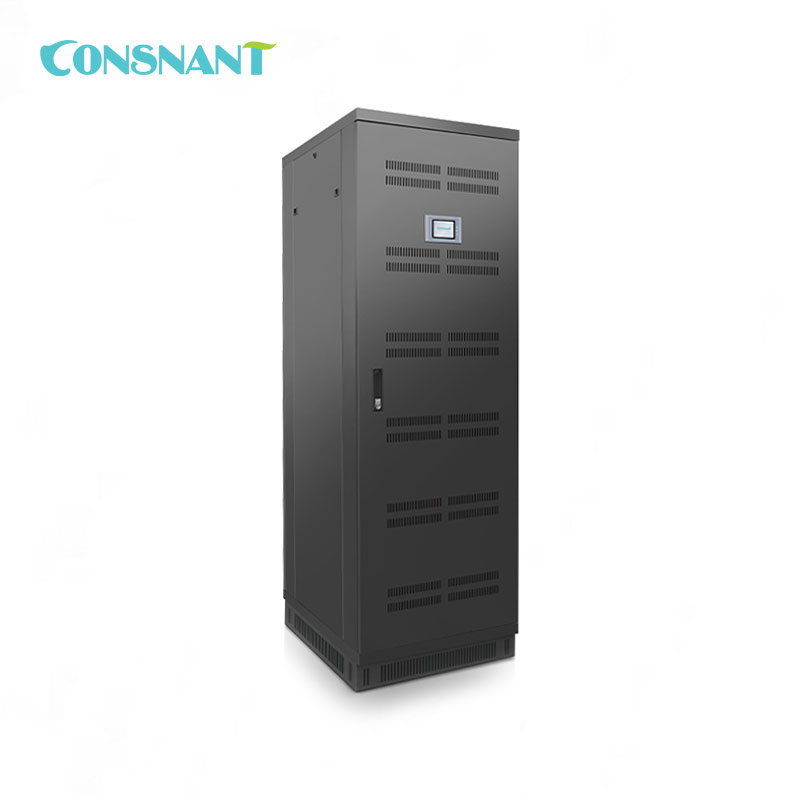

Lithium Battery System Backup Power 384V 50A (LiFePO4 Battery)
Model:CNS-LFP38450
Nominal voltage:384V
Nominal capacity:50Ah
Application:
Data center, UPS backup, Solar power backup
Item No :
CNS-LFP38450Order(MOQ) :
1 pcsPayment :
T/TProduct Origin :
ChinaColor :
BlackShipping Port :
ShenzhenLead Time :
2 weeksWeight :
82 KgLithium Battery System Backup Power 384V 50A (LiFePO4 Battery)
Description
Backup Power Series (LiFePO4 Battery)
For UPS Power manufacturer, the Overall solution center-tapped BMS with flexible and strong configurability, its dual battery cluster backup means double protection on the continuous power supply to clients. BMS can adapt to the requirements of UPS for the environment and perform tasks such as battery protection and continuous power supply. It is a good helper for solving problems.
Products Advantages over Lead-acid Battery:
● Larger energy capacity
● Longer cycle life
● Lighter weight
● Higher power
● Wider temperature range
● Superior Safety
● Accurate power calculation
Technical Parameters
| Model | CNS-LFP38450 |
| Battery type | Lithium iron phosphate battery |
| Display (optional) | LCD |
| Nominal voltage | 384V |
| Nominal capacity | 50Ah |
| Cell | 3.2V/50Ah |
| Battery cell grouping method | 30 pieces connect in series |
| Battery module grouping method | 4 modules connect in series |
| Size of battery module | W440 ×D6 40 ×H 132 (mm ) |
| Weight of battery module | 60kg |
| Size of power control module | W482×D500×H180(mm ) |
| Weight of power control module | 22kg |
| Size of system cabinet | W600×D700×H880(mm ) |
| Charge cut-off voltage | 438V |
| Discharge cut-off voltage | 300V |
| Nominal charge current | 0.5C |
| Maximum charge current | 1.0C |
| Maximum discharge current | 1.0C |
| Charge temperature | 0～55℃ |
| Discharge temperature | -20～65℃ |
| Working humidity | ≤95%(40℃±2℃) |
| Working altitude | 0 ～ 4000m |
| Working atmospheric pressure | 70kPa-106kPa |
| Noise | 0dB |
