Item No :
APF 3P3W 50A – 200A, APF 3P4W 50A – 200AOrder(MOQ) :
10 pcsPayment :
T/TProduct Origin :
ChinaColor :
7035 grey (customization acceptable)Shipping Port :
ShenzhenLead Time :
3-5 daysWeight :

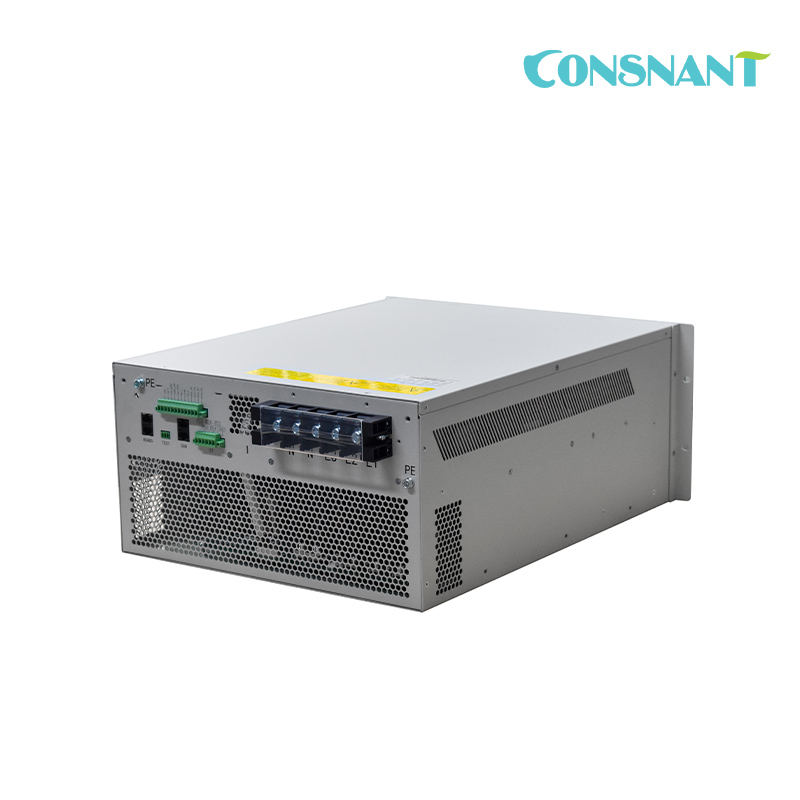

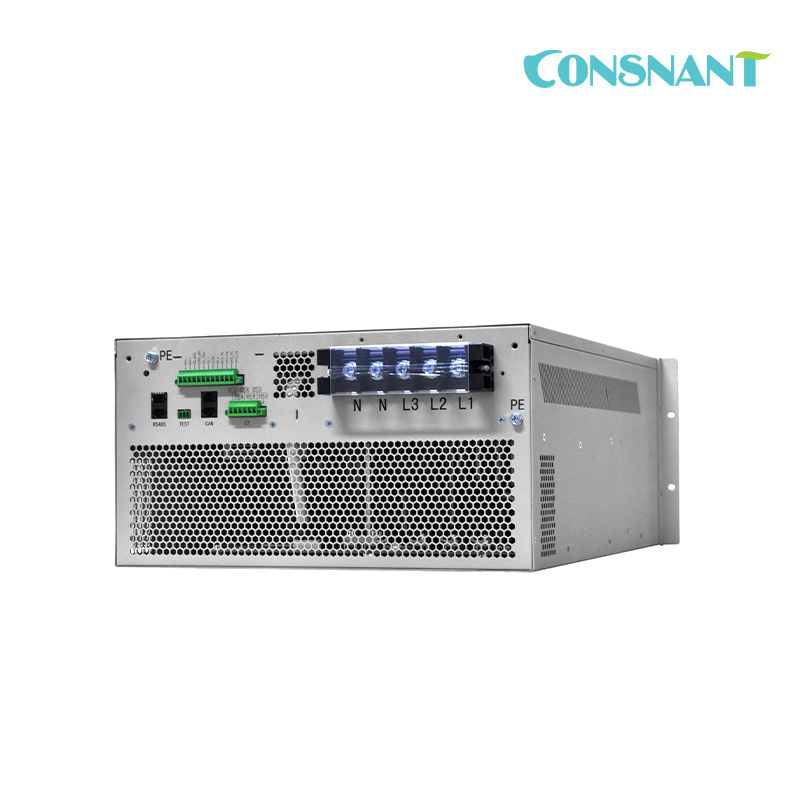

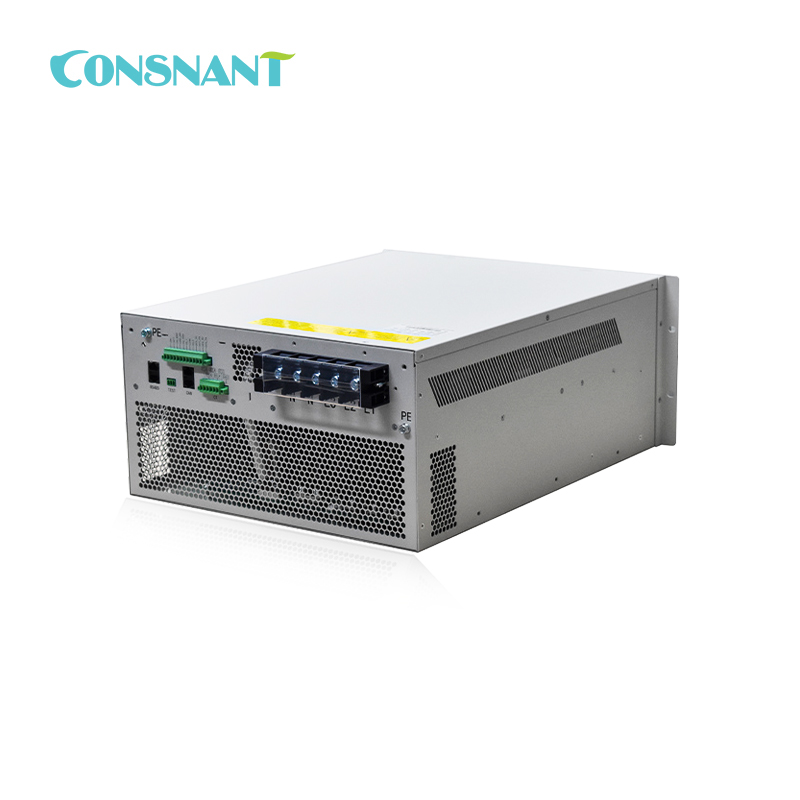

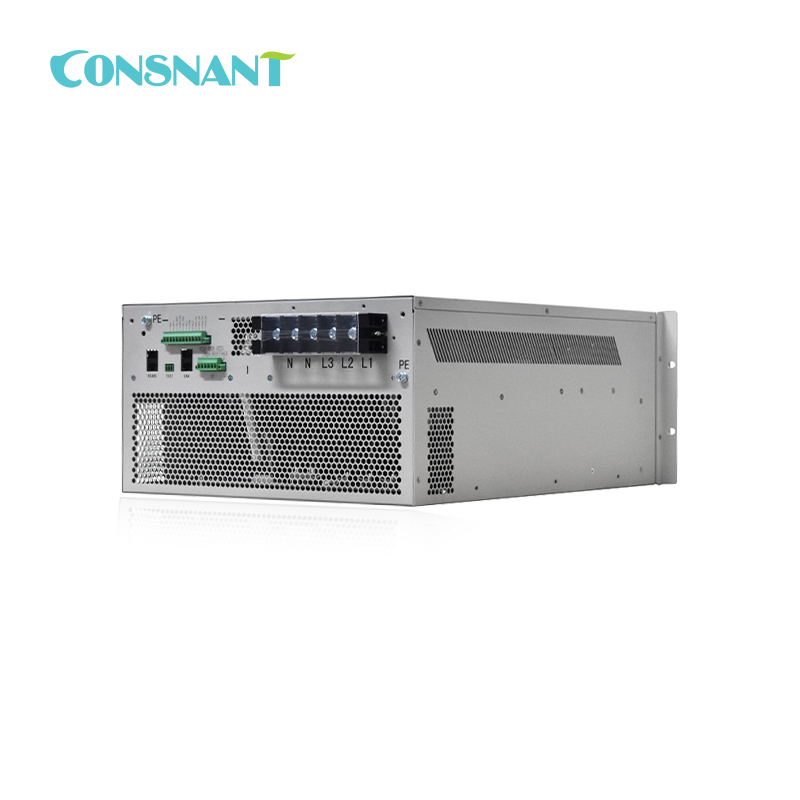

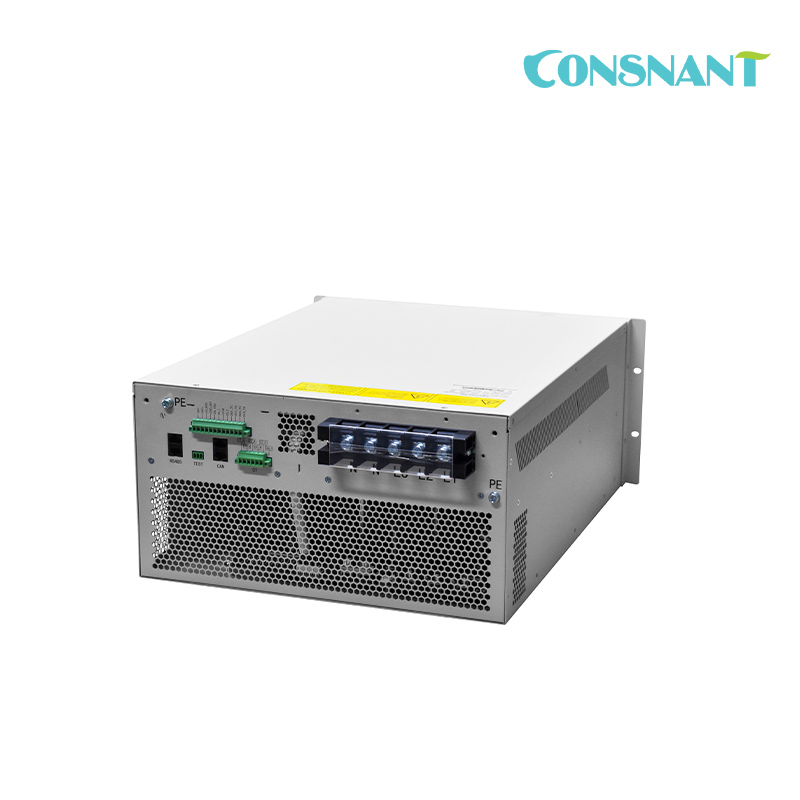

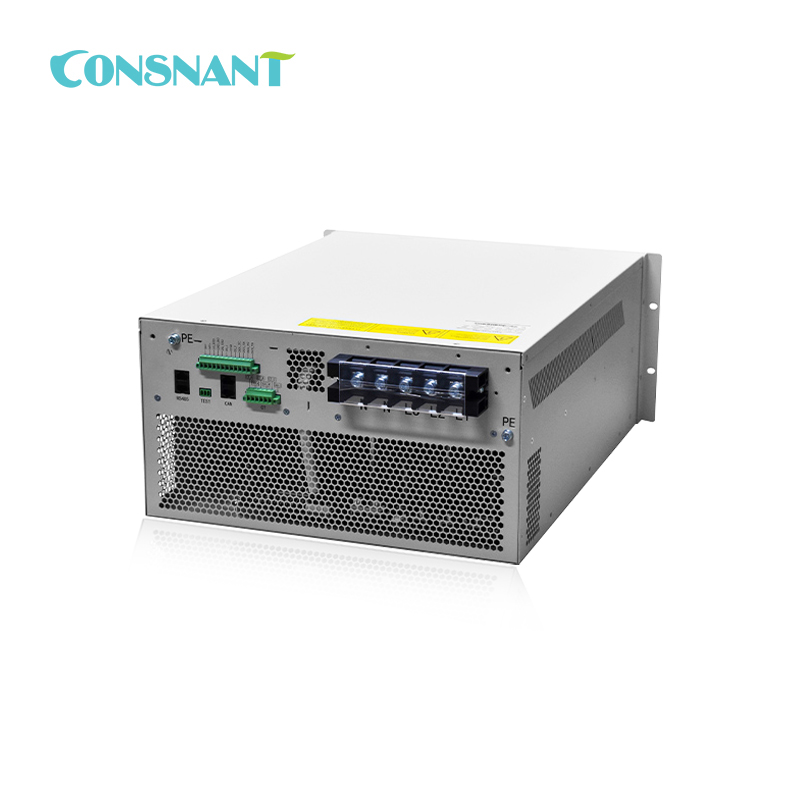

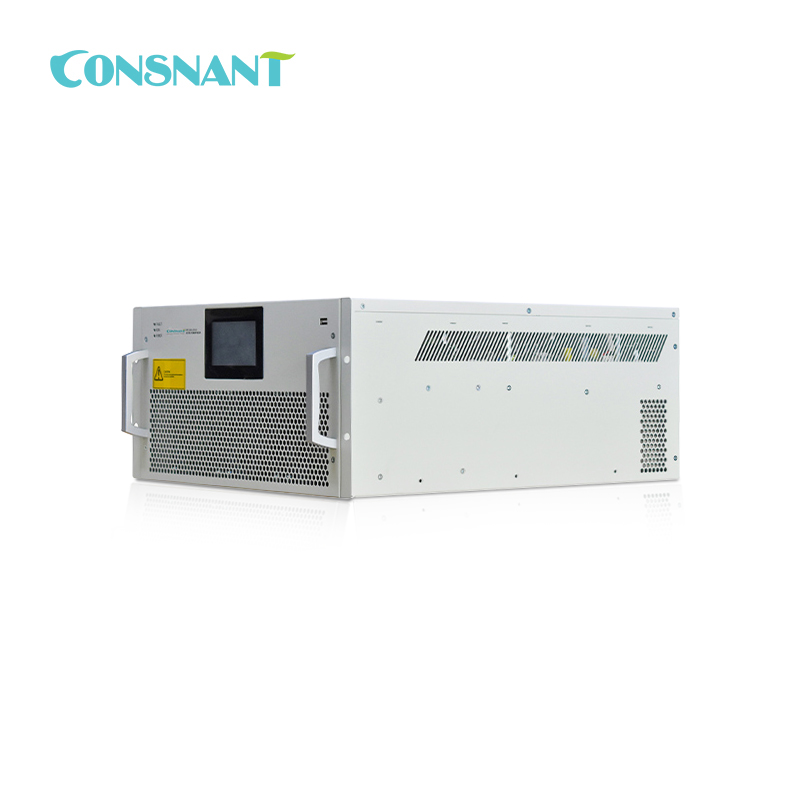

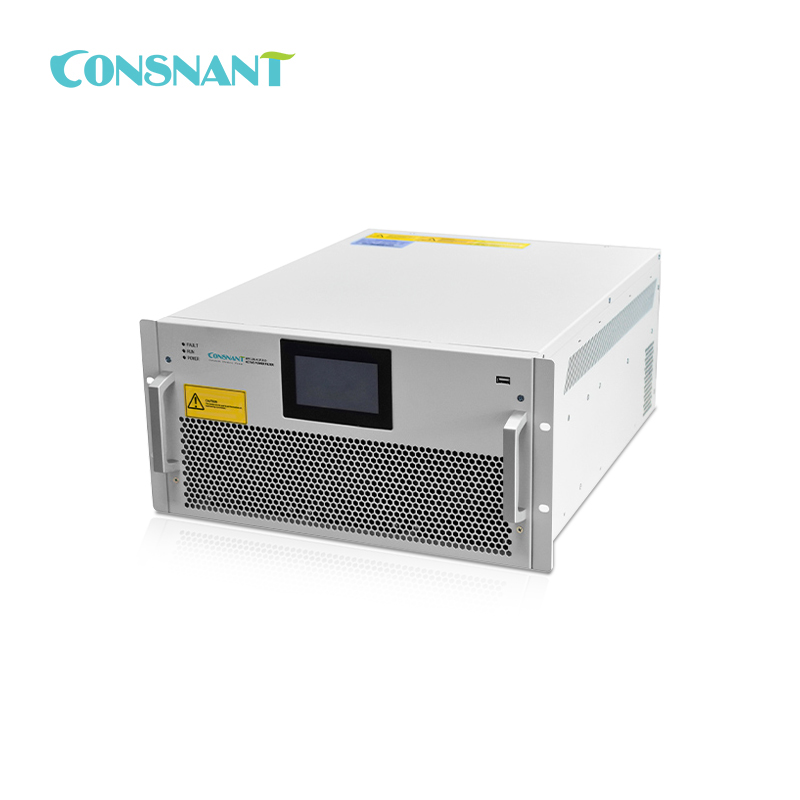

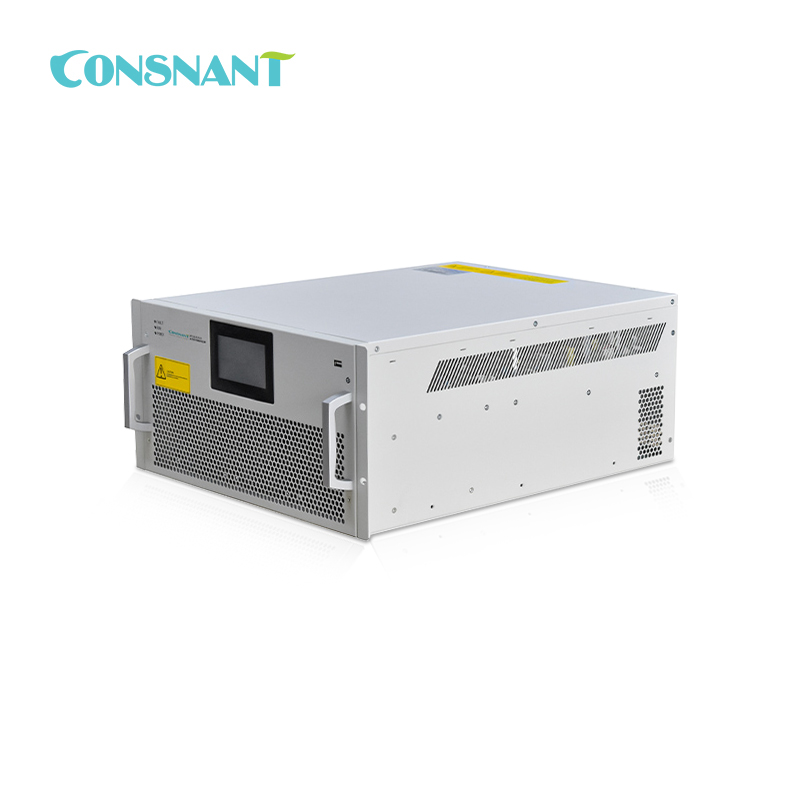

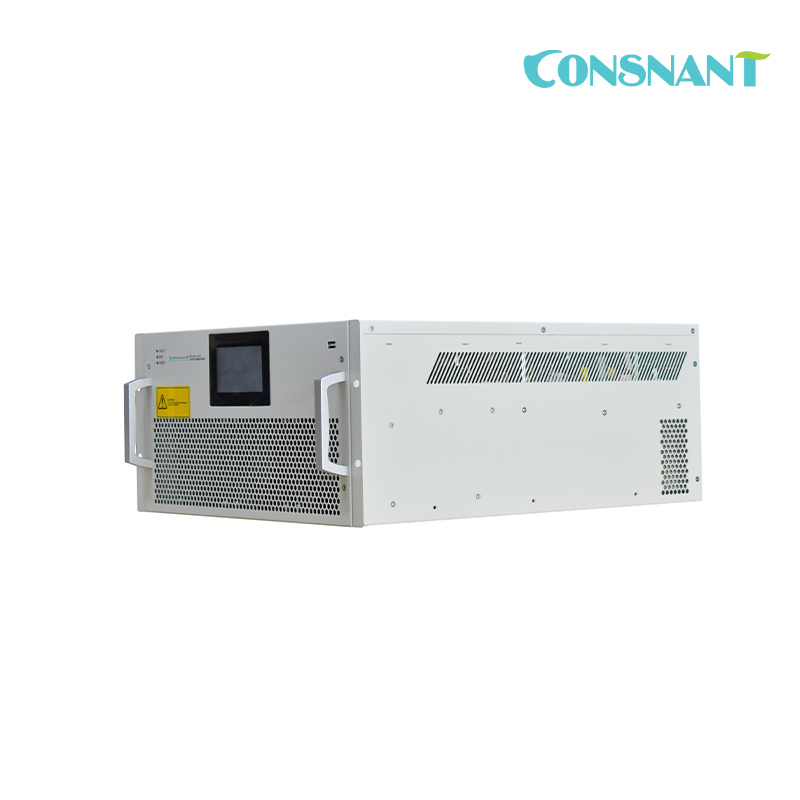

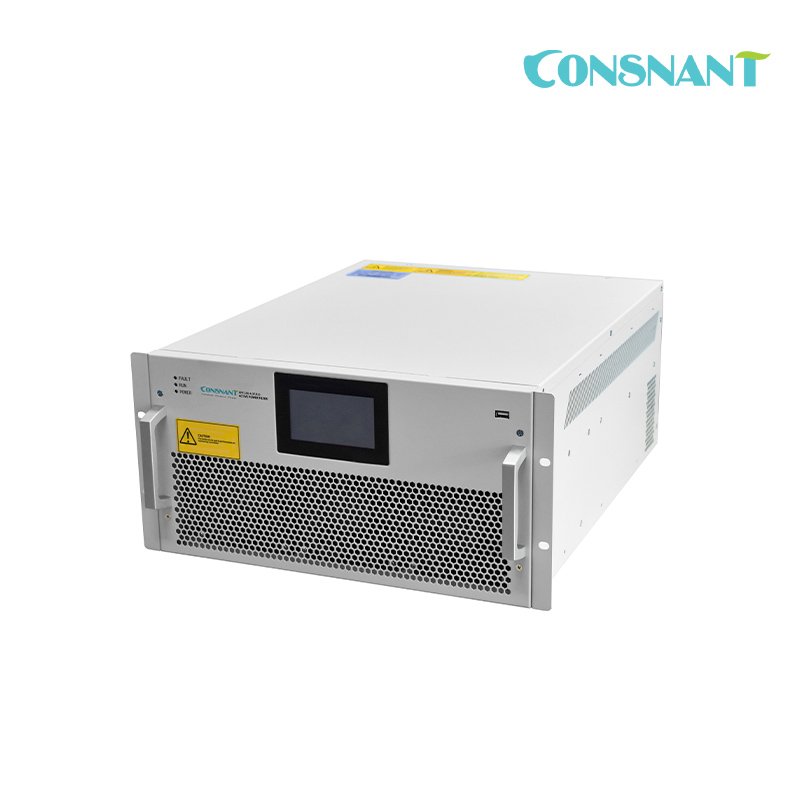

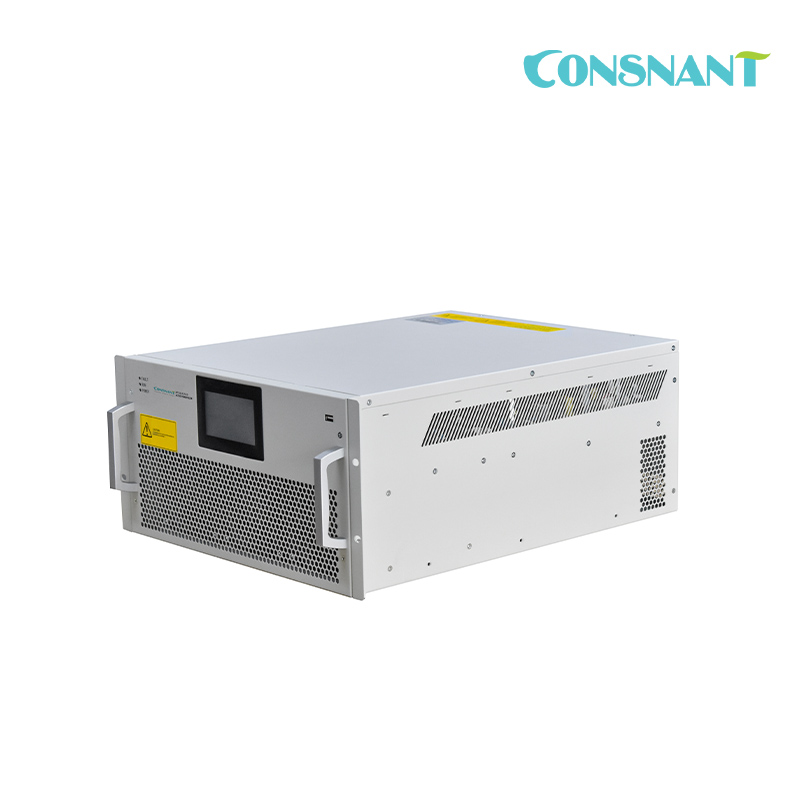

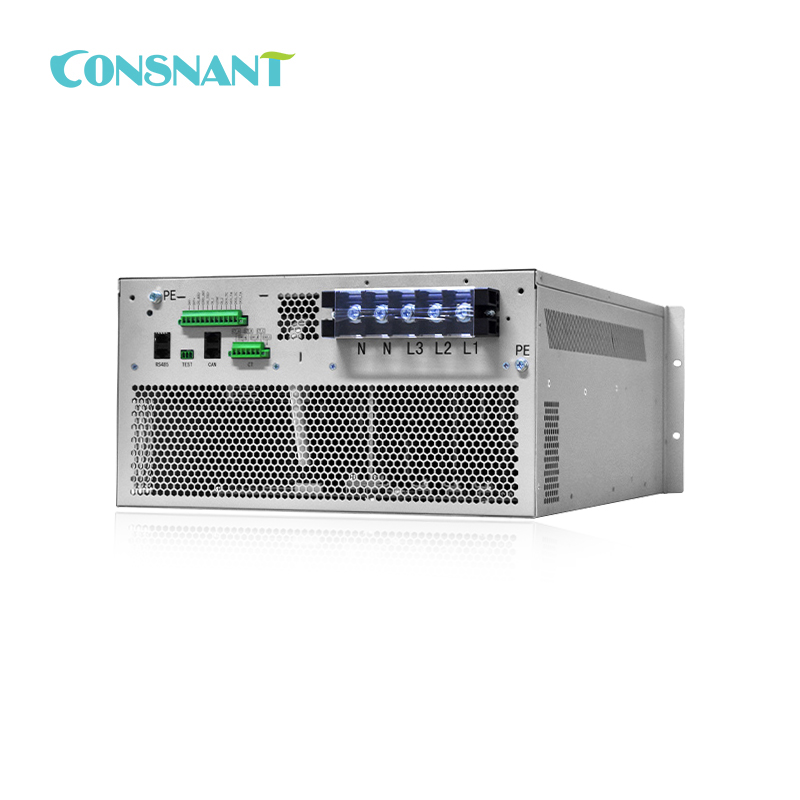

60-100 KgAPF (Active Power Filter) is a new power electronic harmonic filtering device based on voltage source inverter that dynamically generates reverse harmonic current through real-time detection of load current waveforms to achieve filtered (offset) harmonic,dynamic reactive power compensation system,voltage fluctuations,resonance suppression,power factor improvement,and other functions.
APF module generates PWM-signal of the internal IGBTsthrough DSP calculation. It has complete protection function and stable performance. Output characteristics cf the system are not affected, no danger of harmonic amplification,fast response,wide filter range,high filtering efficiency,small size and light weight.It has become an important means of harmonic suppression and reactive power compensation.
Working principles:
1. External current transformer(CT)could detect real-time load current .
2. Internal DSP calculates and analyzes the reactive power content of the system.
3. Control PWM to send signal to IGBT to generate reactive power compensation current for power factor compensation.
Typical Application:
• Commercial Buildings APF(three-phase four-wire products)
• Industrial-type Large-capacity LoadAPF(three-phase three-wire products)
• Telecommunication IDC Room
• UPS Systems
• Central Air Conditioning System
• Residential Building
• Municipal Facilities
• Electrified Railway and Urban Rail Transit Industry
• Petrochemical and Natural Gas Industries
• Power Industry
• Metallurgical Industry ·BulldingMaterialsIndustry Coal Industry
• Textile Industry
• Paper Mill
• Precision Manufacturing
• Automotive Industry

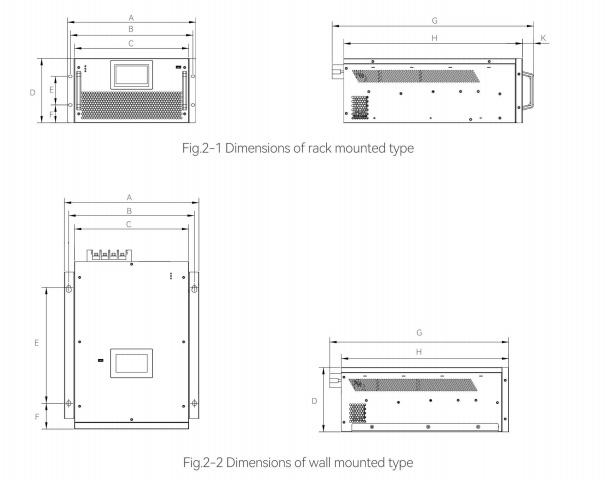

APF Dimensions
Ordering instruction
lf you have technical solution, you can check our products directly.
If you need our technical guide,please advise your problemdetails as many as you can.We can give more reasonable solutions.You may provide the following:
Single line drawing
Panel primary scheme drawing
Power quality test report(mainly about harmonics)
If you have no any drawings,you can advise us
Load nameplate,load condition,existing powerfactor,target power factor,harmonic frequency,etc.
Or rated voltage,compensation capacity,harmonic frexjuency(reactordetuningfactor),andothercomponents
If you can not provide enough information
We can supply you with our productsaccording to your technical requirements.
We can go to your project site, and give a professional test report after test.
Technical service
• Project-site power quality test (or test report for customer)
• Improvement solution and budget
• Product solution and price
• Products supply
• Product commissioning
Compensation Effect
• Harmonic filtering meets the standards
• Power factor is over 0.95,electrical bill saving, low reactive power penalty killing
• Reducing the losses of transformer and line, improve the distribution ability.prolong the lifespan of electrical equipments
Conform to IEC standards
IEC61000-4-5:2005 IEC61921:2003
IEC60931-1:1996 IEC60529:2001
IEC60664-1:2007 IEC60439-1:2005
IEC61000-4-3/2/4/5/18 IEC61000-2-4
IEC60831-1:1996 IEC622082011...
IEC60255 IEC255-22-1
Electrical Features& Specifications
| Item | Description | |
| Main Function | Harmonic Filter | Setting filtering from 2-51 times(under only harmonic filtering function) |
| While choose priority, the harmonic filtering is 2-13th | ||
| Auto/Priority function | The user can also set the priority function, including H+Q/ Q+H/Q+H+B/H+Q+B (Q power factor, H harmonic filtering, B, unblance )ref:Tab.4-1 | |
| Application | Hotel,Car park, Car charger station,Car 4S store,IDC, hospital,Railway,water treatment and other non-liner load | |
|
Electrical Specifications |
Rated voltage | 380/400Vac or 690Vac |
| Wiring | 3P3W or 3P4W | |
| Frequency | 50±2Hz | |
| Capacity | 20~100A(According to SVG type) | |
| Module Consumption | ＜2kW | |
| Efficiency | Up to 97.5% | |
| switching frequency | 20kHz | |
| Response time | Fast response time＜50μs | |
| Total response time＜5ms | ||
| CT ratio | 150:5~6000:5 | |
| Parallel | Max.5 (customization acceptable) | |
| Terminals | Communication | RS485 |
| Environment | Operating environment | In-door, free from moisture, dust, corrodent or flammable gases, oil mist, vapor, water leakage or salt water. |
| Altitude | <1000m （customized acceptable） | |
| Work temperature | -20℃~+50℃( derating is required from 40℃ to 50℃, increase every 1℃ above 40℃, derating 2%, highest temperature allowed: 50℃ ) | |
| Humidity | Less than 95%RH, no condensing | |
| Storage temperature | -20℃~+70℃ | |
| Vibration | Less than 5.9m/s2 (0.6g) | |
| Enclosure | Protection degree | IP20 |
| Colour | 7035 grey (customization acceptable) | |
| Size | According to APF type(refer: APF Dimensions) | |
| Cooling |
Fan cooling |
|
Specification Sheet
| Model | Compensation Current(A) |
Rated Voltage (Vac) |
Electrical Wiring | Type |
| APF-50A-3P3W-WM 400VAC | 50 | 380/400/415 | 3 phase, 3 wires | Wall Mounted |
| APF-50A-3P4W-WM 400VAC | 50 | 380/400/415 | 3 phase, 4 wires | Wall Mounted |
| APF-75A-3P3W-WM 400VAC | 75 | 380/400/415 | 3 phase, 3 wires | Wall Mounted |
| APF-75A-3P4W-WM 400VAC | 75 | 380/400/415 | 3 phase, 4 wires | Wall Mounted |
| APF-100A-3P3W-WM 400VAC | 100 | 380/400/415 | 3 phase, 3 wires | Wall Mounted |
| APF-100A-3P4W-WM 400VAC | 100 | 380/400/415 | 3 phase, 4 wires | Wall Mounted |
| APF-150A-3P3W-WM 400VAC | 150 | 380/400/415 | 3 phase, 3 wires | Wall Mounted |
| APF-150A-3P4W-WM 400VAC | 150 | 380/400/415 | 3 phase, 4 wires | Wall Mounted |
| APF-50A-3P3W-RM 400VAC | 50 | 380/400/415 | 3 phase, 3 wires | Rack Mount |
| APF-50A-3P4W-RM 400VAC | 50 | 380/400/415 | 3 phase, 4 wires | Rack Mount |
| APF-100A-3P3W-RM 400VAC | 100 | 380/400/415 | 3 phase, 3 wires | Rack Mount |
| APF-100A-3P4W-RM 400VAC | 100 | 380/400/415 | 3 phase, 4 wires | Rack Mount |
| APF-150A-3P3W-RM 400VAC | 150 | 380/400/415 | 3 phase, 3 wires | Rack Mount |
| APF-150A-3P4W-RM 400VAC | 150 | 380/400/415 | 3 phase, 4 wires | Rack Mount |
| APF-200A-3P3W-RM 400VAC | 200 | 380/400/415 | 3 phase, 3 wires | Rack Mount |
| APF-200A-3P4W-RM 400VAC | 200 | 380/400/415 | 3 phase, 4 wires | Rack Mount |
Note: The standard voltage for above models is 400Vac; 220Vac/690Vac for option.
Usage Condition:
| Ambient Temp | -25℃~+45℃ | ||
| Humidity | ≤95% | ||
| Aptitude | ≤1000m(customization acceptable) | ||
| Max. Operating Voltage | ≤110%(nominal voltage) | ||
| Max. Current | ≤130%(nominal current) | ||
| Environment Around | No corrosive gas, no conductive dust and no explosive and flammable medium around | ||
| nstallation Site | No severe vibration and bump, installation angle ≤5° | ||
