Model Number: SVG 3P3W 50A – 200A, SVG 3P4W 50A – 200A
Rail transit, petrochemical industry, offshore oil, automobile manufacturing, machinery heavy industry, sewage treatment, mining smelting, municipal engineering, telecommunications banks, hospitals, intelligent buildings, conference centers , amusement centers, cement, electronics, paper, rubber, semiconductors, steel mills, non-ferrous metal smelting, electrification, etc.
Item No :
SVG 3P3W 50A – 200A, SVG 3P4W 50A – 200AOrder(MOQ) :
10 pcsPayment :
T/TProduct Origin :
ChinaColor :
7035 grey(customization acceptable)Shipping Port :
ShenzhenLead Time :
3-5 daysWeight :

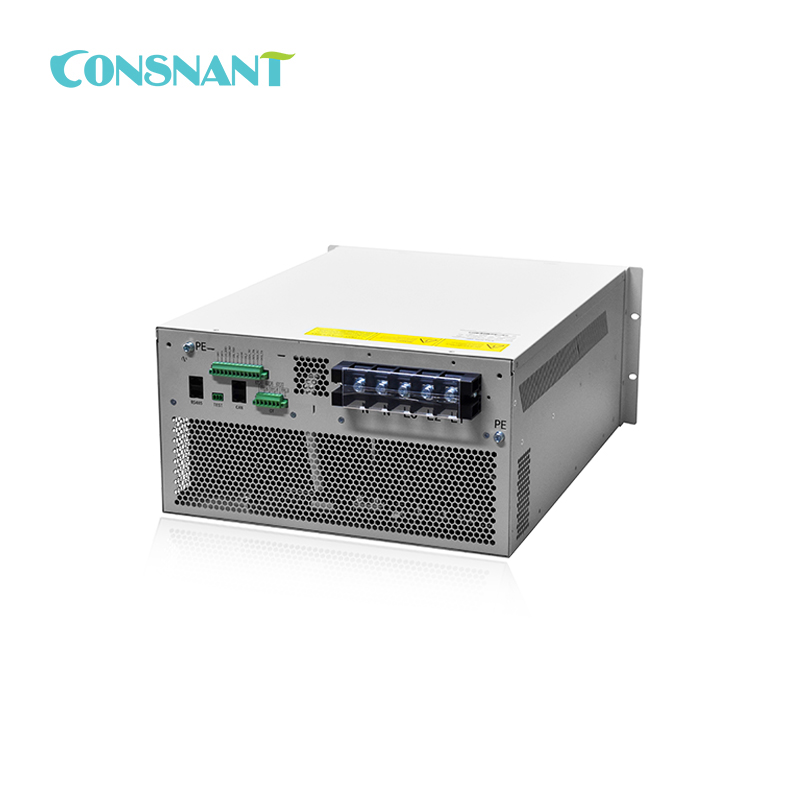

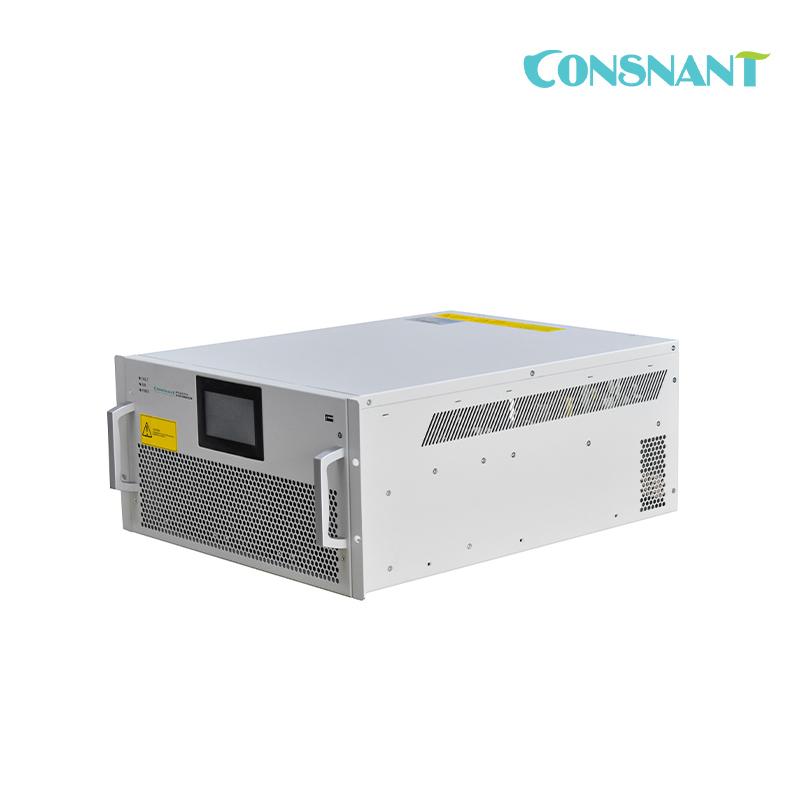

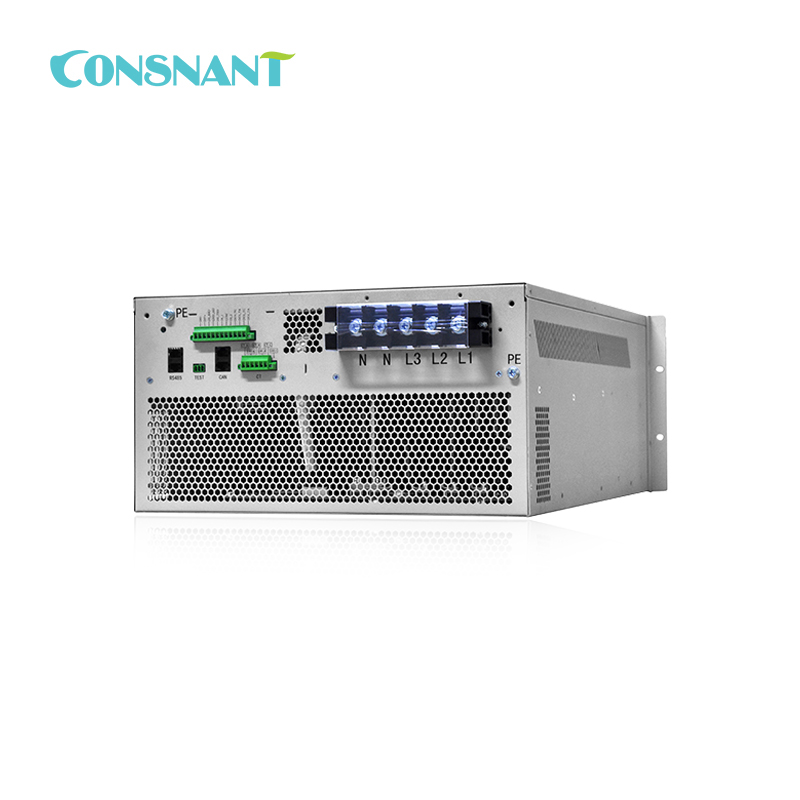

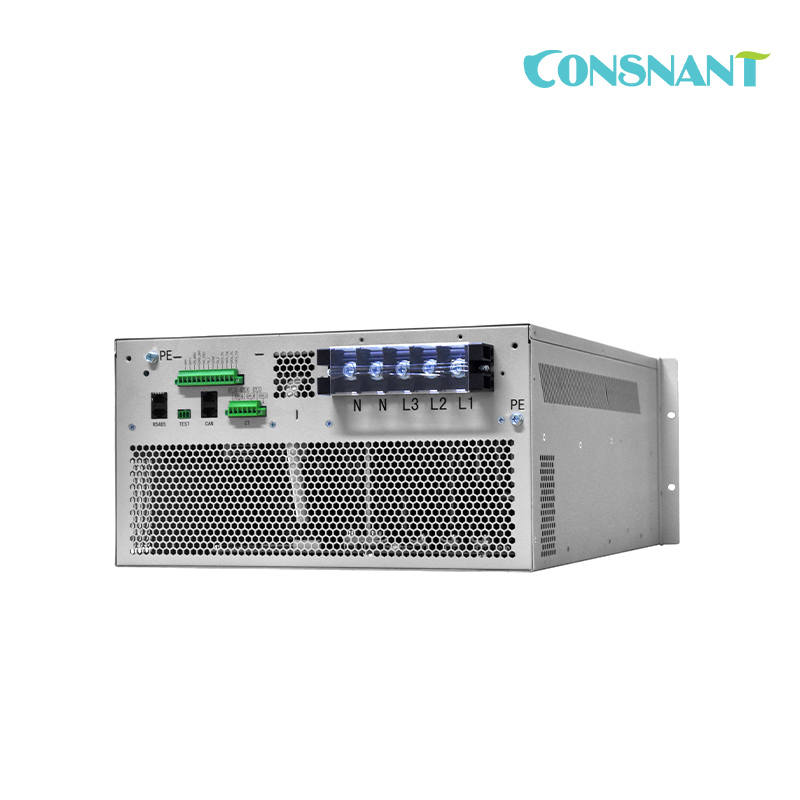

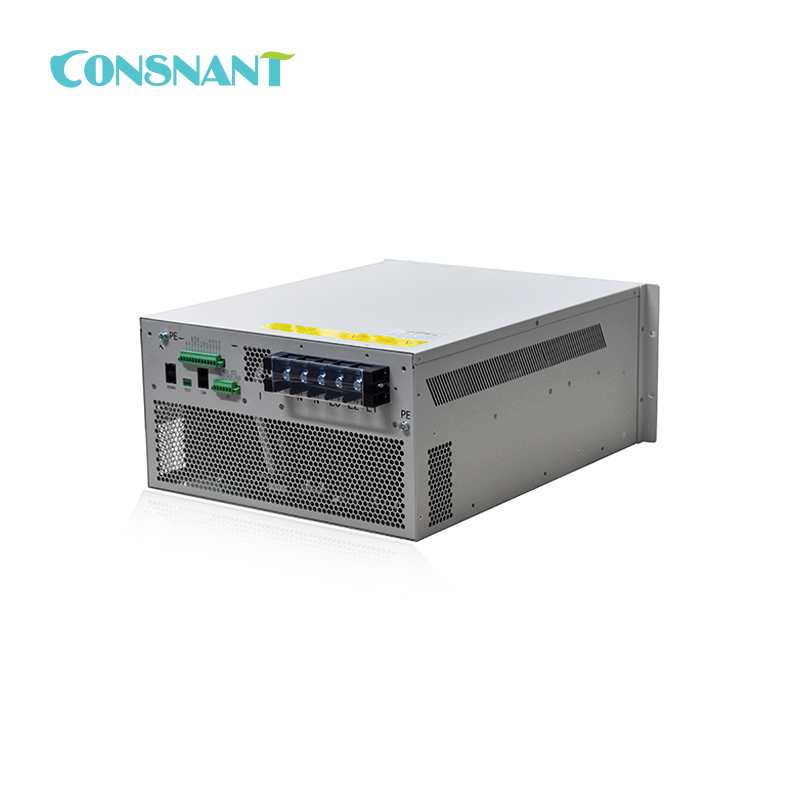

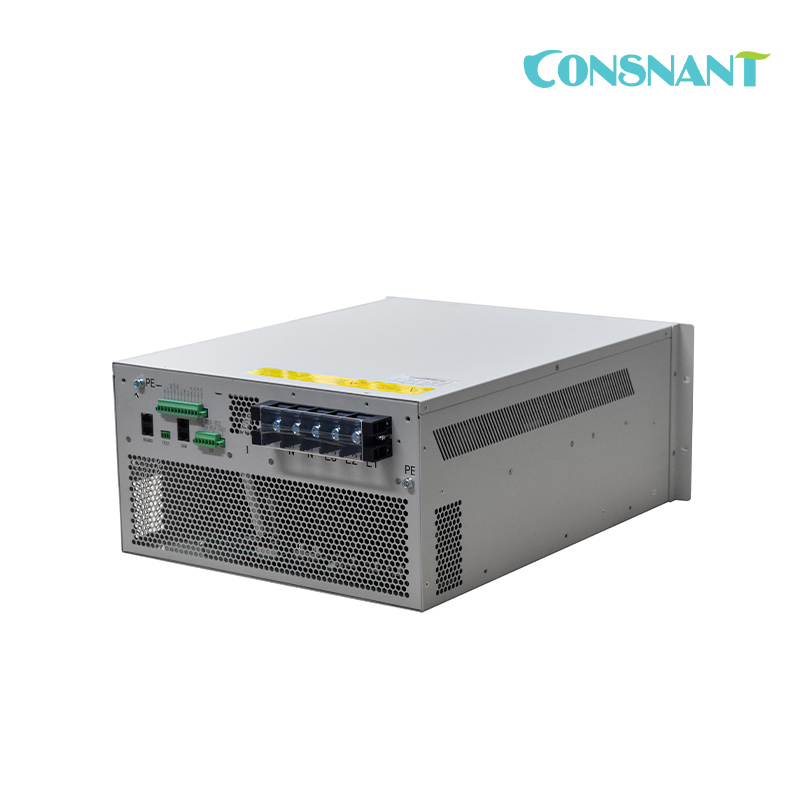

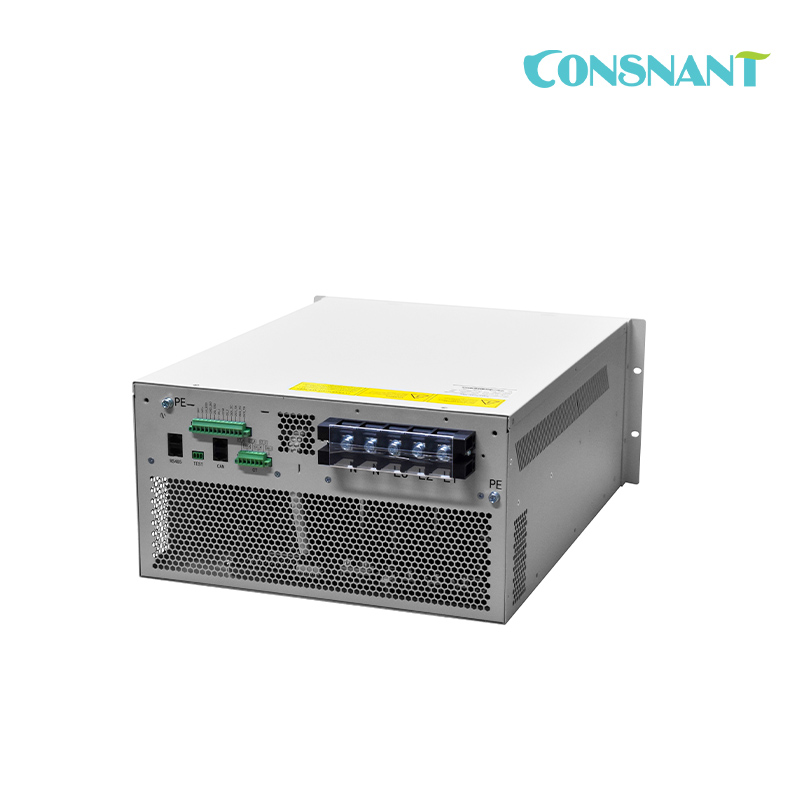

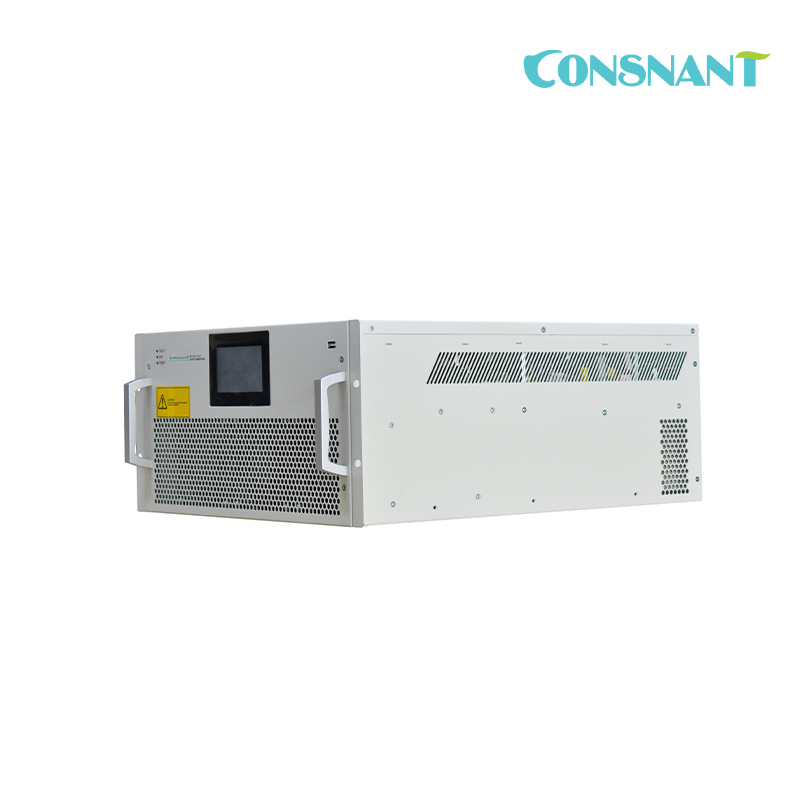

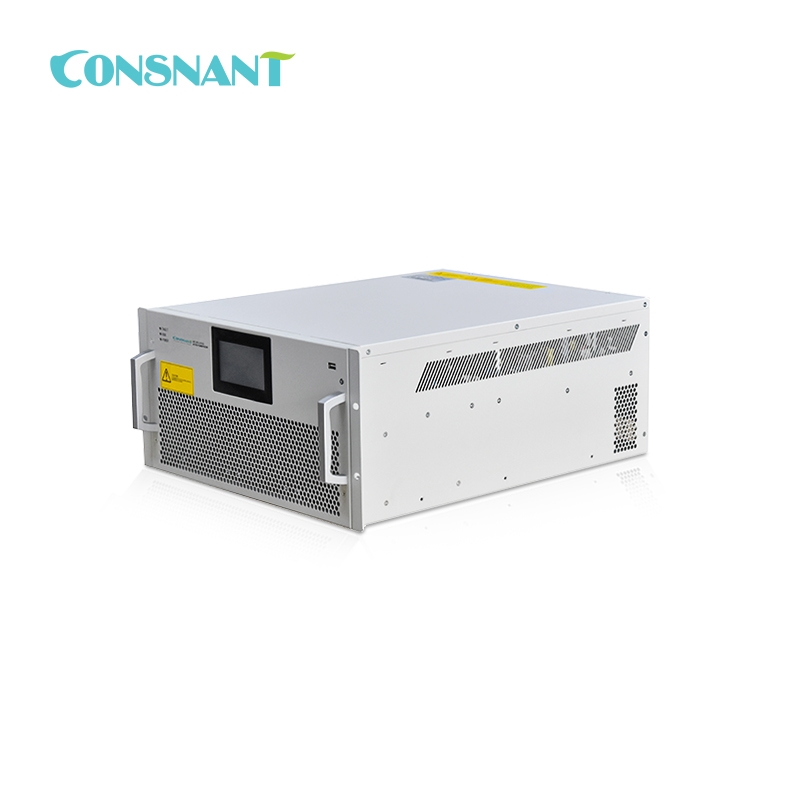

60-100 KgRack Mount Static Var Generator (SVG) 50A – 200A
SVG STATIC VAR GENERATOR
A revolutionary modular three level inverter reactive power management system used for power factor correction, current balancing, voltage balancing, voltage regulation and VAR support. Ideal for industrial, commercial and electricity network applications.
Available in 50/75/100kVar wall mount and 50/100/150kVar rack mount modules,400VAC three phase.
Features:
● Adopt the latest IGBT technology witha high switching frequency up to 35KHz.
● Quick response and minimal thermal and electric energy losses.
● Quickly responding DSP+FPGA processors.
● The SVGM series products adopt full digital control systems DSP, which can immediately respond to the load changes and have no overcompensation and undercompensation,and support continuous automatic control adjustment.
● Unique and spacious design for optimal thermal management.
● Best-in-business three-level topology that can better offset the current to the sine wave compared with traditional two-level inverters.

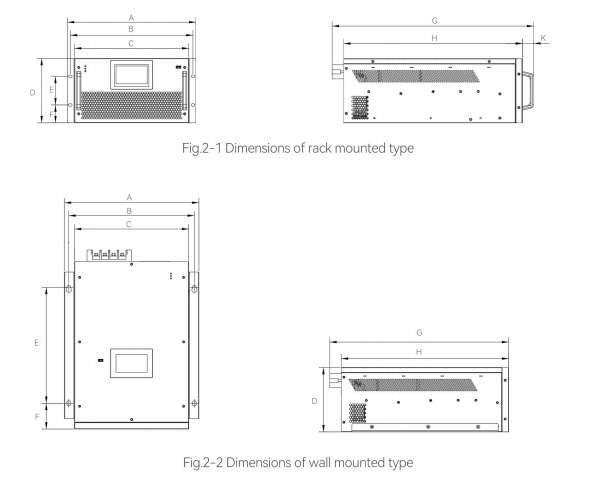

SVG Dimensions
Ordering instruction
lf you have technical solution, you can check our products directly.
If you need our technical guide,please advise your problemdetails as many as you can.We can give more reasonable solutions.You may provide the following:
Single line drawing
Panel primary scheme drawing
Power quality test report(mainly about harmonics)
If you have no any drawings,you can advise us
Load nameplate,load condition,existing powerfactor,target power factor,harmonic frequency,etc.
Or rated voltage,compensation capacity,harmonic frexjuency(reactordetuningfactor),andothercomponents
If you can not provide enough information
We can supply you with our productsaccording to your technical requirements.
We can go to your project site, and give a professional test report after test.
Technical service
• Project-site power quality test (or test report for customer)
• Improvement solution and budget
• Product solution and price
• Products supply
• Product commissioning
Compensation Effect
• Harmonic filtering meets the standards
• Power factor is over 0.95,electrical bill saving, low reactive power penalty killing
• Reducing the losses of transformer and line, improve the distribution ability.prolong the lifespan of electrical equipments
Conform to IEC standards
IEC61000-4-5:2005 IEC61921:2003
IEC60931-1:1996 IEC60529:2001
IEC60664-1:2007 IEC60439-1:2005
IEC61000-4-3/2/4/5/18 IEC61000-2-4
IEC60831-1:1996 IEC622082011...
IEC60255 IEC255-22-1
Electrical Features& Specifications
| Item | Description | |||
| Function | Main | Maintain receiving end voltage and strengthen system voltage stability | ||
| Inverter topology: 3 level NPC topology, IGBT | ||||
| Compensate system reactive power, improve power factor, reduce line loss, save energy and reduce cost | ||||
| Suppress voltage fluctuation and flicker | ||||
| Suppress three phase unbalance | ||||
| Compensate both inductive and capacitive loads to achieve PF0.99 and avoid under and over compensation | ||||
| Ability to set compensation priority, set with power factor and balance,various combinations of harmonics. | ||||
| Harmonic | Setting filtering from 2-13 times | |||
| Application | Hotel, Car park, Car charger station, Car4S store, IDC, Hospital, Railway water treatment and other non-liner load | |||
| Electrical Specifications |
Rated voltage | 380/400Vac | ||
| Wiring | 3P3W/3P4W | |||
| Frequency | 50±3Hz | |||
| Capacity | 20~100kVar (According to SVG type) | |||
| Efficiency | Up to 97.5% | |||
| Switching frequency | 20kHz | |||
| Response time | Fast response time<50us Total response time <5ms | |||
| CT ratio | 150:5~6000:5 | |||
| Parallel | Max. 5(customization acceptable) | |||
| Terminals | Relay output | Max. 2, default 1 | ||
| Digital input | Max.2, default 1 | |||
| Communication | RS485 | |||
| Environment | Operating environment |
Indoor, free from moisture, dust, corrodent or flammable gases, oil mist vapor, water leakage and salt water. | ||
| Altitude | <1000m,use as per GB/T3859.2(customization acceptable) | |||
| Work temperature | -10℃~+40℃(derating is present from 40℃ to 50℃, derate by 2% per every 1℃ increase above 40℃, highest temperature allowed: 50℃) | |||
| Humidity | Less than 95%RH, no condensing | |||
| Storage temperature | -40℃~+70℃ | |||
| Vibration | Less than 5.9m/s2(0.6g) | |||
| Enclosure | Protection degree | IP20 | ||
| Colour | 7035 grey(customization acceptable) | |||
| Size | According to SVG type (refer to SVG Dimensions) | |||
| Cooling | Fan cooling | |||
| Other | Design standard | IEC61000 EN55011 EN62477 EN61800 | ||
Specification Sheet
| Model | Compensation Current (KVar) |
Rated Voltage (Vac) |
Electrical Wiring | Type |
| SVG-50K-3P3W-WM 400VAC | 50 | 380/400/415 | 3 phase, 3 wires | Wall Mounted |
| SVG-50K-3P4W-WM 400VAC | 50 | 380/400/415 | 3 phase, 4 wires | Wall Mounted |
| SVG-75K-3P3W-WM 400VAC | 75 | 380/400/415 | 3 phase, 3 wires | Wall Mounted |
| SVG-75K-3P4W-WM 400VAC | 75 | 380/400/415 | 3 phase, 4 wires | Wall Mounted |
| SVG-100K-3P3W-WM 400VAC | 100 | 380/400/415 | 3 phase, 3 wires | Wall Mounted |
| SVG-100K-3P4W-WM 400VAC | 100 | 380/400/415 | 3 phase, 4 wires | Wall Mounted |
| SVG-50K-3P3W-RM 400VAC | 50 | 380/400/415 | 3 phase, 3 wires | Rack Mount |
| SVG-50K-3P4W-RM 400VAC | 50 | 380/400/415 | 3 phase, 4 wires | Rack Mount |
| SVG-100K-3P3W-RM 400VAC | 100 | 380/400/415 | 3 phase, 3 wires | Rack Mount |
| SVG-100K-3P4W-RM 400VAC | 100 | 380/400/415 | 3 phase, 4 wires | Rack Mount |
| SVG-150K-3P3W-RM 400VAC | 150 | 380/400/415 | 3 phase, 3 wires | Rack Mount |
| SVG-150K-3P4W-RM 400VAC | 150 | 380/400/415 | 3 phase, 4 wires | Rack Mount |
Note: The standard voltage for above models is 400Vac; 220Vac/690Vac for option.
Usage Condition:
| Ambient Temp | -25℃~+45℃ | ||
| Humidity | ≤95% | ||
| Aptitude | ≤1000m(customization acceptable) | ||
| Max. Operating Voltage | ≤110%(nominal voltage) | ||
| Max. Current | ≤130%(nominal current) | ||
| Environment Around | No corrosive gas, no conductive dust and no explosive and flammable medium around | ||
| nstallation Site | No severe vibration and bump, installation angle ≤5° | ||
