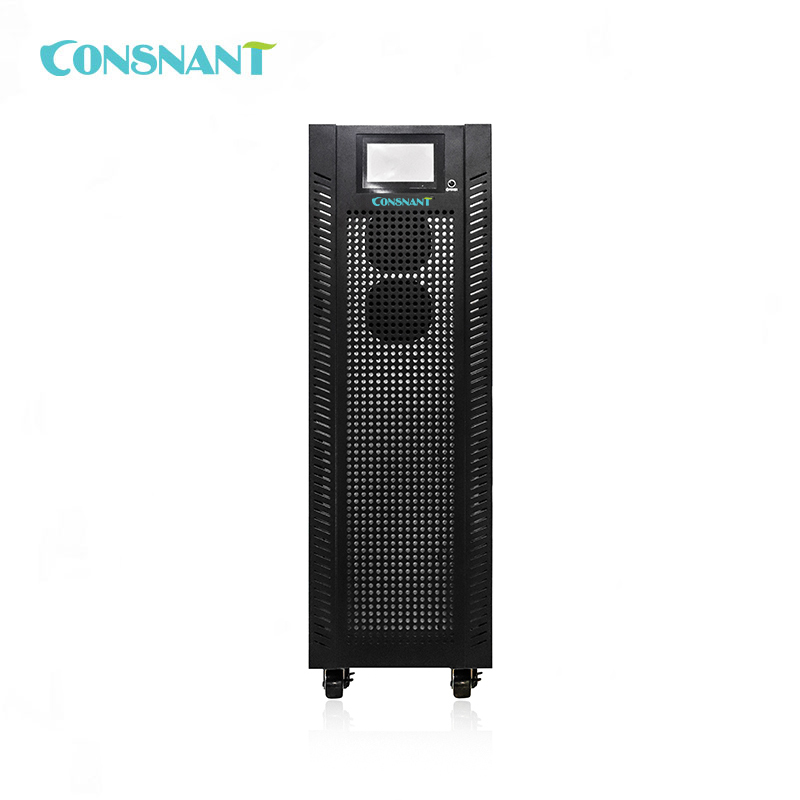

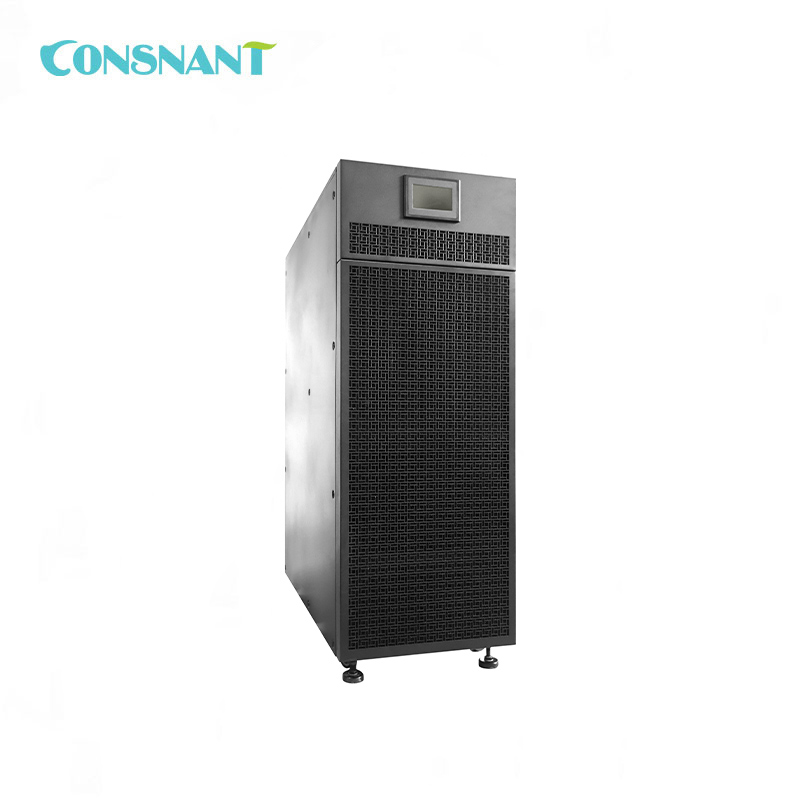

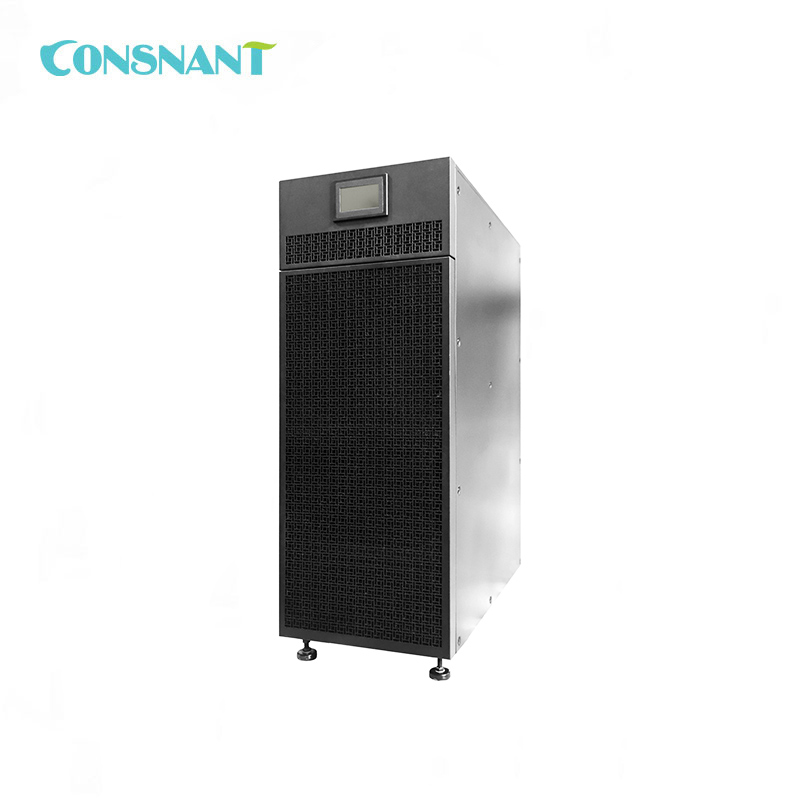

3P/3P 400V High Frequency Online UPS 30-60K
Model Number: CNH330 30 - 60KVA
Nominal Capacity: 30-60KW
Nominal Voltage: 380/400/415VAC
Input Voltage Range: 110 – 300VAC
Nominal Frequency: 50/60HZ
Item No :
CNH330 30 - 60KVAOrder(MOQ) :
1 pcsPayment :
T/TProduct Origin :
ChinaColor :
BlackShipping Port :
ShenzhenLead Time :
1 weekWeight :
55-229Kg3P/3P 400V High Frequency Online UPS 30-60K
Feature：
● DSP technology guarantees high reliability
DSP and MCU dual chips to secure the product reliability.
● Output power factor 1
For critical applications,this 3-phase online UPS with output power factor 1.0 ensures higher efficiency and advanced performance.
● Adapting the latest Silicon carbide diodes to enhance the system efficiency
Through adapting the latest Silicon carbide diodes,no matter it's in AC mode and battery mode, the efficiency ishigher than 96%.
● Dual Inputs
CNH330 series is also available for optional dual inputs to support various in puts to have flexibility for systemconfiguration.
● Very powerful charger to shorten the recharge time
Adapting the charger rating equals to 30% of UPS capacity on 10/20Kva.Charger rating is also 20% of UPS capacity for 30Kva and above models.
● Adjustable charging current
Users can adjust charging current via LCD setting based on various battery configurations.
● Parallel up to 6 units with common battery pack
Supports maximum 6 units in parallel with common battery pack for the parallel system.
● 5" color touch type LCD display
Inbuilt 5"color touch type LCD display with 500 event/data logs.
● Optional programmable relay dry contact card
Configurable4 dry contact ports definition through software for various applications.
● Voice warning / error code notice
Inbuilt the speaker to have human voice for the warning / error codes notice instead oftraditional beeps.
● High overload capability
Supporting 110% overload capacity for 60 min and up to 1 min overload condition at 150% load.
● Adjustable battery design
The number of connected batteries can be adjusted flexibly based on different power demands.
● Dynamic password feature optimizes service performance
This dynamic password is automatically generated from our exclusive utility tool. Each time when it is required to change service-related settings, this utility tool would generate an unique password on time basis. It secures UPS from unexpected operation due to unauthorized settings.
● Power walk-in function
CNH330 is designed to have flexible power walk-in by way of adjusting the power walk-in time. This setting will optimize generator sizing and reduce the impact to the AC source by having different walk-in time period for different paralleled UPS system when AC grid is recovered.
Technical Parameters:
|
MODEL |
30K |
40K |
50K |
60K |
|
|
CAPACITY* |
30KVA/30KW |
40KVA/ 40KW |
50KVA/50KW |
60KVA/60KW |
|
|
INPUT |
|||||
|
Voltage Range |
Low Line Loss |
110 VAC(Ph-N) ± 3 % at 50% Load; 176 VAC(Ph-N) ± 3 % at 100% Load |
|||
|
Low Line Comeback |
Low Line Loss Voltage + 10V |
||||
|
High Line Loss |
300 VAC(L-N) ± 3 % at 50% Load; 276 VAC(L-N) ± 3 % at 100% Load |
||||
|
High Line Comeback |
High Line Loss Voltage - 10V |
||||
|
Frequency Range |
46Hz ~ 54 Hz @ 50Hz system; 56Hz ~ 64 Hz @ 60Hz system |
||||
|
Phase |
3 Phase with Neutral |
||||
|
Power Factor |
≥ 0.99 at 100% Load |
||||
|
OUTPUT |
|||||
|
Phase |
3 Phase with Neutral |
||||
|
Output voltage |
360*/380/400/415VAC (Ph-Ph) |
||||
|
208*/220/230/240VAC (Ph-N) |
|||||
|
AC Voltage Regulation |
± 1% |
||||
|
Frequency Range (Synchronized Range) |
46Hz ~ 54 Hz @ 50Hz system; 56Hz ~ 64 Hz @ 60Hz system |
||||
|
Frequency Range (Batt. Mode) |
50/ 60 Hz ± 1% |
||||
|
Overload |
AC mode |
100%~110%: 60min; 111%~125%: 10min; 126%~150%: 1min; >150%: 400ms |
|||
|
Battery mode |
100%~110%: 60min; 111%~125%: 10min; 126%~150%: 1min; >150%: 400ms |
||||
|
Current Crest Ratio |
3:1 max |
||||
|
Harmonic Distortion |
≦ 1 % @ 100% Linear Load; ≦ 3 % @ 100% Non-linear Load |
||||
|
Transfer Time |
Line Battery |
0 ms |
|||
|
Inverter Bypass |
0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass) |
||||
|
Inverter ECO |
<10 ms |
||||
|
EFFICIENCY |
|||||
|
AC Mode |
95.5% |
||||
|
ECO Mode |
98.5% |
||||
|
Battery Mode |
94.5% |
||||
|
BATTERY |
|||||
|
Standard Model |
Type |
12V/7Ah |
12V/9Ah |
N/A |
|
|
Numbers |
(16+16) x 2 |
||||
|
Charging Current (max.) |
2A |
||||
|
Charging Voltage |
+/- 13.65 VDC * N ± 1% (N = 16~20) |
||||
|
Long-run Model |
Type |
Depending on applications |
|||
|
Numbers |
32 ~ 40 (adjustable) |
||||
|
Charging Current (max.) |
1~12A (adjustable) |
1~18A (adjustable) |
|||
|
Charging Voltage |
+/- 13.65 VDC * N ± 1% (N = 16~20) |
||||
|
PHYSICAL |
|||||
|
Standard Model |
Dimension, D X W X H mm |
815 x 300 x 1000 |
NA |
||
|
Net Weight (kgs) |
207 |
229 |
NA |
||
|
Long-run Model |
Dimension, D X W X H mm |
815 x 300 x 1000 mm |
974 x 600 x 1600 mm |
||
|
Net Weight (kgs) |
55 |
58 |
83 |
87 |
|
|
ENVIRONMENT |
|||||
|
Operation Temperature |
0 ~ 40°C (the battery life will be reduced when > 25°C) |
||||
|
Operation Humidity |
<95 % and non-condensing |
||||
|
Operation Altitude** |
<1500m** |
||||
|
Protection |
IP20 |
||||
|
Acoustic Noise Level |
Less than 65dB @1 Meter |
Less than 70dB @1 Meter |
Less than 75dB @1 Meter |
||
|
MANAGEMENT |
|||||
|
Smart RS-232 or USB |
Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix, and MAC |
||||
|
Optional SNMP |
Power management from SNMP manager and web browser |
||||
* Derate capacity to to 90% when the output voltage is adjusted to 3 x 360VAC.
**If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated 1% per 100m.
***Product specifications are subject to change without further notice.
