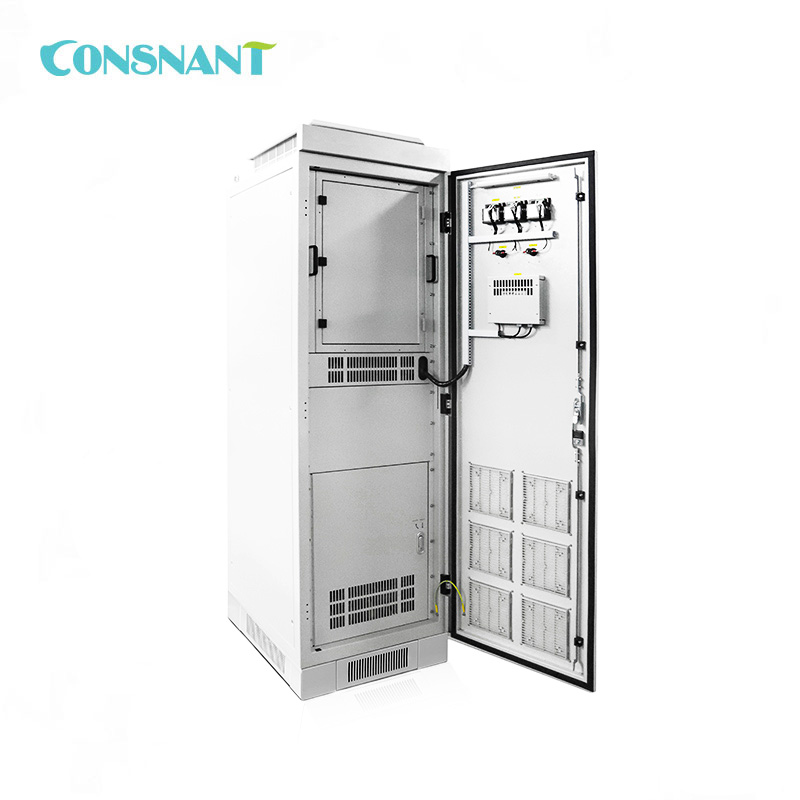

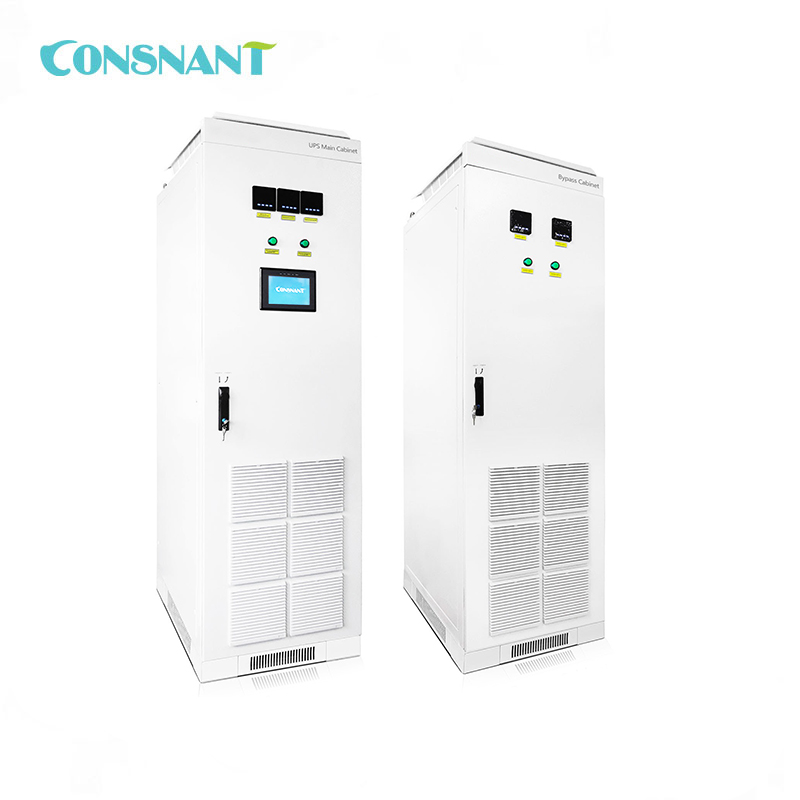

Three phase Output Industrial Online UPS 10 - 40KVA

Three phase Output Industrial Online UPS 10 - 40KVA

Model Number: CNI330 10-40KVA

Nominal Capacity: 10 – 40KVA

Nominal Voltage: 380/400/415VAC

Maximum Input Voltage Range: +-20%

Nominal Frequency: 50/60HZ

Application field:

Power Plant DCS Control System
Boiler Safety Monitoring System
Steam turbine inspection
Bypass systems and other automatic protection devices
Petrochemical, natural gas, plastics, production lines
laboratory testing equipment

Item No :
CNI330 10-40KVA
Order(MOQ) :
1 pcs
Payment :
T/T
Product Origin :
China
Color :
RAL7035
Shipping Port :
Shenzhen
Lead Time :
3-4 weeks
Weight :
200-260 Kg

Inquire Now

Three-phase Output Industrial Online UPS 10-40KVA

Description

Industrial UPS are regarded as fully customized power supply systems for rugged environments and designed particularly to safeguard critical loads in industrial applications where voltage transients, created by degraded mains supply, can seriously damage both UPS and the critical load.

Application:
Petroleum, chemical industry, gas and power station and so on.

Key features:
• Adopt full digital control technology.
• Intelligent detection and monitoring function.
• Digitally control the static switch with zero switch.
• Full isolation between input and output.
• Super low output zero earth voltage.
• DC UPS isolated with utility power completely.
• Cubical design with power standard (customization).
• Multifunctional protection for over-voltage, under voltage, over current, short circuit and over temperature and so on.
• Large-screen LCD monitor with Chinese and English operation interface.
• Ultra-long 256 event record, user-friendly analysis and management to the situation of the power supply (touch screen display).
• Static bypass has a strong anti-overload capability.

Product advantages：

Adopting High-speed DSP Control

Adopting voltage and current stepping technology under CPU control, the rectifier of UPS has a soft start function. The input step is less than 15 seconds (adjustable), and the maximum impact current on the power grid does not exceed the rated current.

High Reliability

Built-in input transformer, output transformer, and bypass transformer realize complete Galvanic isolation. Instead of discrete IGBT and SCR components, we uses Modular IGBT and SCR in Rectifier and Inverter, bringing in extremely high reliability.

Advanced BMS

Intelligent battery management, comprehensive charge and discharge management of batteries, including charging voltage and current limiting, discharge cut-off voltage, extending battery lifetime 30%-50%.

Flexible customization

Industrial UPS can be customized according to the customer's environment, including input and output voltage, phase, frequency, battery voltage, charging current and IP level of the cabinet, etc.

Integrated design

The entire machine adopts a less fuse design, using circuit breakers, contactors, and electronic static switches. The circuit protection technology is advanced, greatly improving the reliability of the entire machine.

Strong Impact Ability

Adopting pulse-by-pulse technology to ensure that the maximum short-circuit current does not exceed the allowable range of single pulse short time IGBT, a pulse-by-pulse current limiting scheme is adopted.

Suitable for harsh environments

It can be applied in harsh environmental conditions such as dust, pests, high-temperature conditions, and earthquake areas to protect your important production processes and systems.

Parallel operation

Advanced distributed active parallel technology can realize parallel operation of 6PCS UPS units without the need for centralized bypass cabinet.

High compatibility

Compatible with Lead Acid (vented/sealed), NiCd (vented/gas recombination) batteries and lithium batteries.

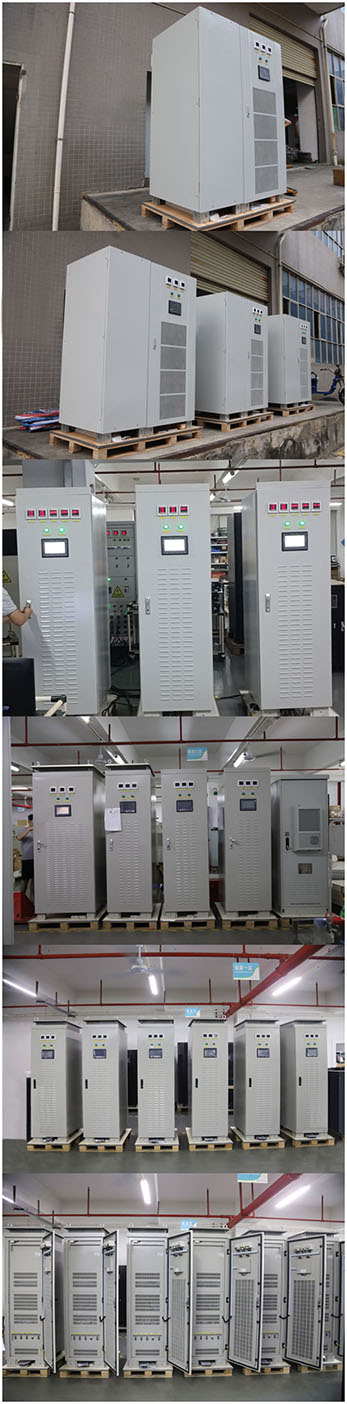

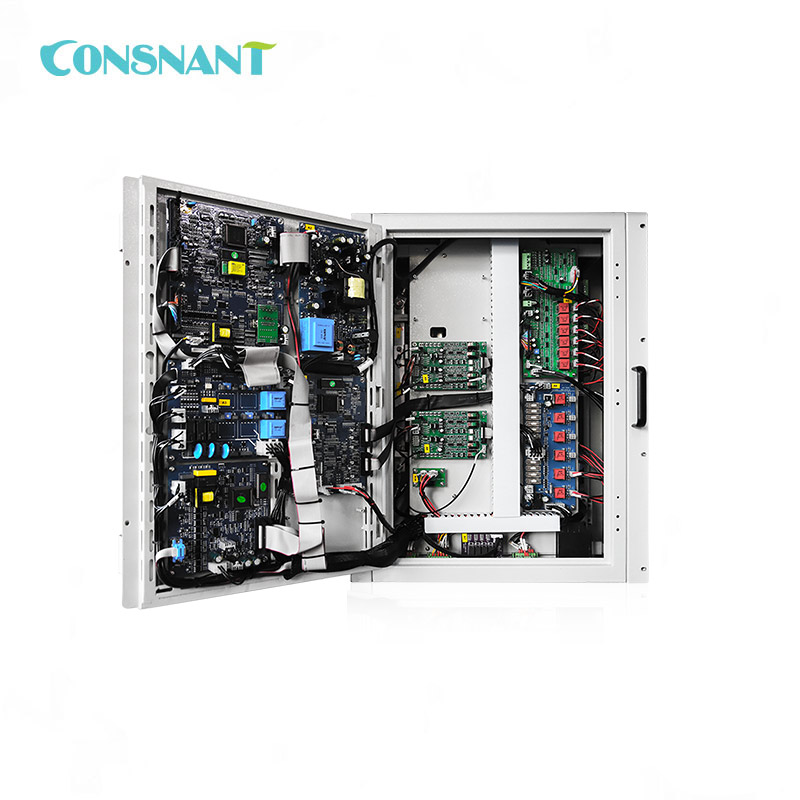

Production Pictures：

Other Service

Service hours: 9:00am-19:00pm (China time)

Product service:

1. Pre-sales consultation; After-sales worry-free.

2. Support ODM and OEM.

3. Online guidance and Technical support.

Product Warranty:

One year warranty period against the B/L date 45 days later.（Possible to extend the warranty period to three years by add money）

FAQ：

What is a UPS?

A UPS is an electrical device that provides continuous, conditioned, uninterrupted power to acritical AC load. It also provides isolation between the input and the output. It consists of aRectifier/Battery Charger, Battery System, and inverter. The Battery Charger converts incoming commercial/utility AC power to DC power. This power is then supplied both to a Battery system and an inverter. The inverter then converts this DC power back into AC power which is fed to the critical load(s). The Battery is an emergency DC supply that is connected in parallel with the output of the Battery Charger, and supplies the DC power to the inverter (without any switching) in the event that the incoming commercial power is lost or outside of specified tolerances.

A true UPS is an on-line system, which means that under normal operating conditions, the power flow is through the Battery Charger, then through the inverter to the load. This differs from off-line, or stand-by systems, which are designed such that under normal conditions, power for the load is supplied directly from the commercial power source, NOT through the inverter. Depending on the design, and cost, the power may be conditioned by means of a Voltage Regulating Transformer or Power Conditioner placed in the power path between the commercial power source and the load. In an off-line or standby system, the inverter only supplies power to the load if the utility power fails. The Battery then picks up the inverter load for a finite period of time (typically 15–20 minutes).When the battery is depleted, the inverter will turn off, and the load will go down.

In order for a power supply to be considered a true UPS, it must accept three sources of power. The first source is the commercial, or utility, power that supplies AC power to the Battery Charger; the second is the Battery, which provides emergency DC power. The third source is a bypass, or alternate, AC source, which provides emergency AC power to the load if the inverter is unable to supply power, either because of an inverter failure, or a fault on the load. Under these conditions, the load would be automatically transferred to the bypass source via a static (electronic) transfer switch. The bypass source also supplies power in the event that the load is transferred manually from the inverter via a manual maintenance bypass switch.

A true on-line UPS is also referred to as a double conversion system. This means, as the name implies, that the power is converted twice. First it is converted from AC to DC at the Rectifier; then it is converted back from DC to AC at the inverter. Another common term is reverse transfer. This refers to the fact that the load, under certain conditions as described above (faults, equipment failure, or manual operation), is transferred back onto the commercial/utility power source.

Again, this differentiates it from an off-line system where, under normal operation, the load is powered from the utility source.

Why single phase instead of three phase?

UPS systems are available in a variety of single phase, three phase, and so-called split phase voltage configurations.

However, many loads in the industrial market are single phase only – particularly DCS, SCADA, and PLC applications. In years past, the EDP market – especially large main frame computer applications gave rise to a need for three phase UPS systems. There are, obviously, some three phase industrial loads, notably large motors, but by and large most industrial situations require single phase.

This is actually good news, because a single phase UPS offers some advantages over three phase systems. First, the fault clearing capability of a single phase inverter is approximately three times greater than a three phase unit. Downstream fault protection coordination is also easier to accomplish with single phase.

Second, there are no loads to balance. When using a three phase inverter to drive single phase loads, care must be taken that loads are balanced within a few percent of each other. Load imbalance can lead to voltage regulation that is out of spec, as well as increased harmonics, which can lead to distortion in the output waveform and/or overheating.

Single phase distribution panel boards and switchboards are less expensive, smaller, and easier to work with than three phase units. Again, since industrial controls systems for the most part consist of single phase loads it probably doesn’t make a lot of sense to install three phase panels and inverters in the distribution system. This is likewise true for so-called split phase distribution systems. Many panel boards are rated for 120/240 volt operation. Therefore, many electricians think that they need to provide an inverter (UPS system) with a 120/240 volt output, rather than a straight 120 volt output, even though the actual loads are only 120 volts. In reality, a 120 volt unit is what they need – all they need to do is split the loads at the panel board. Many panel board manufacturers will make a straight 120 volt panel if requested to do so, usually at no extra cost.

Although it may be a trade-off at higher power levels, it can be easier and less expensive to run cables for a single phase system. The trade-off comes when taking into consideration the breakers and cable sizes.

In general, unless you truly have some three phase loads, then, it is usually a better bet to use a single phase UPS, rather than three phase. Check with your UPS supplier to make sure that they can provide a single phase system, even at higher power levels – say 75 or 100kVA. Even at those ratings, the advantages of single phase may outweigh the perceived installation cost savings of three phase.

Technical Parameters:

Model	CNI330-10KVA	CNI330-15KVA	CNI330-20KVA	CNI330-30KVA	CNI330-40KVA
Capacity	10KVA/8KW	15KVA/12KW	20KVA16KW	30KVA/24KW	40KVA/32KW
Input
Rated voltage	380/400/415 Vac three-phase
Voltage range	±20%
Frequency range	50/60HZ±5%
Power factor	≥0.8
Current harmonic distortion	<5%with harmonic filter
Soft Start	0-100% in 10″
Bypass Input
Rated voltage	220/230/240 Vac single-phase
Permitted voltage range	±15%(selectable from ±10% to±25% from front panel)
Rated frequency	50/60Hz
Permitted frequency range	±2%(selectable from ±1% to 5% from front panel)
Standard features	BackFeed portection;split bypass line
Batteries
Type	Maintenance-free lead-acid VRLA AGM/GEL;NICd
Maximum recharge current(A)	0.2 X C10
DC Voltage	384VDC
AC ripple voltage	<1%
Inverter output
Number of phases	1
Rated voltage(V)	230Vac single-phase
Regulation of the output voltage	220~244Vac phase/neutral(from control panel)
Crest factor(Ipeak/Irms)	3:1
Static stability	±1%
Dynamic stability	±5%
Frequency	50/60Hz configurable
Overload	110% 125% 150% of the rated current for 5h/10’/1′
Frequency stability	±0.05% on mains failure
System
Remote signaling	Volt free contacts
Remote controls	EPO and Bypass
Communication	RS232+romote contacts
Operation temperature	0℃/+40℃
Relative humidity	<95% non condensing
Colour	Light grey (RAL7035)
Noise	54dBA at 1m		60dBA at 1m		65dBA at 1m
Protection degree	IP42
Efficiency Smart Mode	up to 98%
Compliance	Safty: EN 62040-1-1(Directive 2006/95/EC);EMC:6200-2(Directive 2004/108/EC)
Weight(KG)N.W	200		220	230	260
