AC input: MCB 63A / 3P * 1, UK35 * 1
PV input: MCB 25A / 2P * 6, DC-SPD * 6
Battery access: MCB 125A / 1P * 3
Primary load disconnect: MCB 125A/1P*3, 63A/1P*3
Primary load disconnect is controlled by a 400A contactor (normally closed)
Configuration: AC Class C 3 + 1 mode 20 KA / 40 KA SPD * 1, DC output lightning protection: Class C DC SPD * 1
Application field:
Telecom;
Data center
Item No :
TRSS-48300Order(MOQ) :
1 pcsPayment :
T/TProduct Origin :
ChinaColor :
BlackShipping Port :
ShenzhenLead Time :
1-2 weeksWeight :

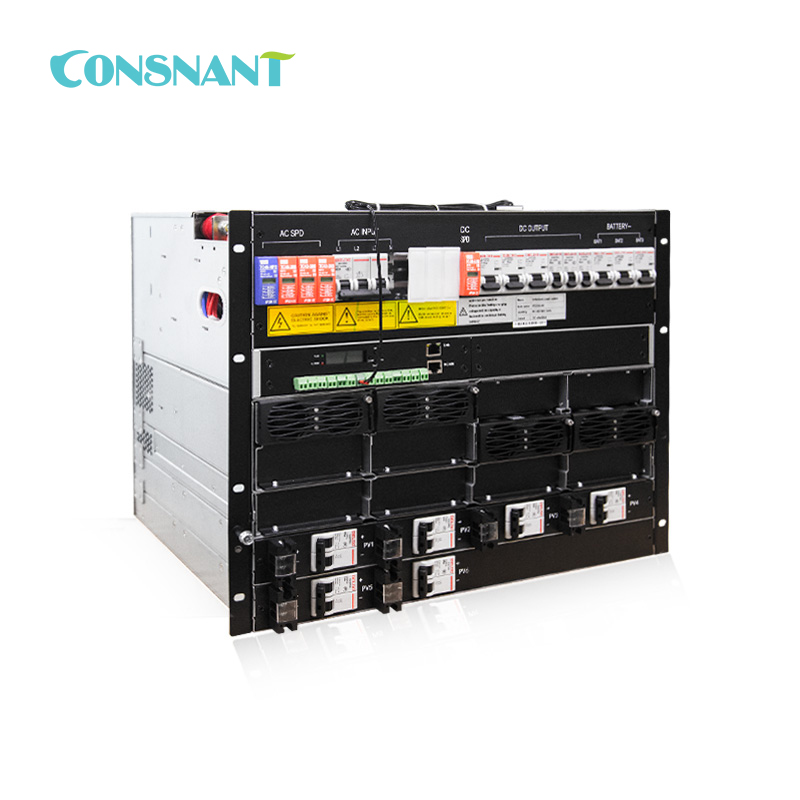

37 Kg48V 300A Embedded Telecom Power System

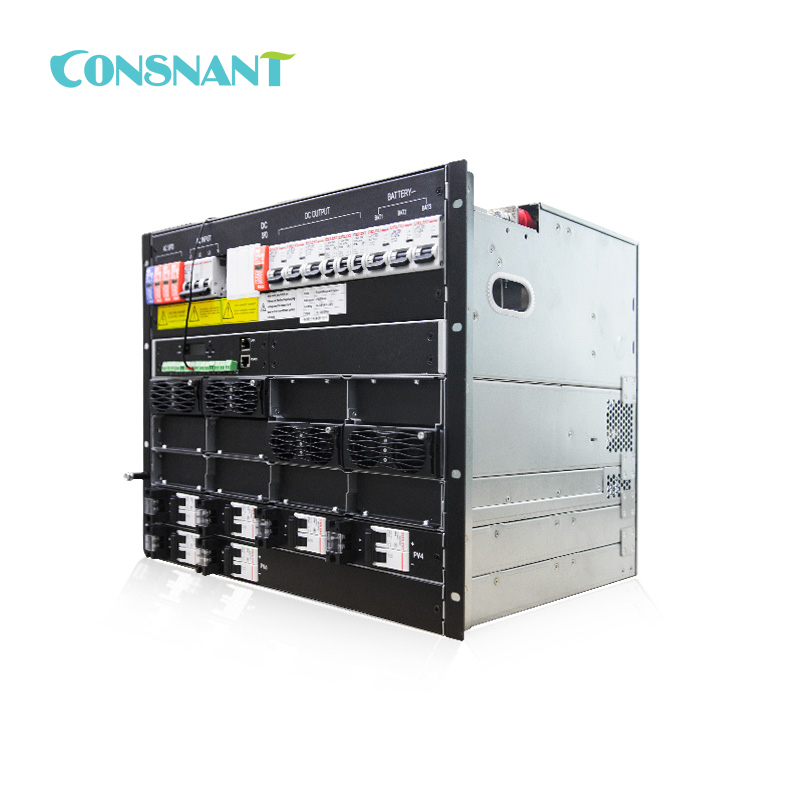

Description
TRSS-48300 embedded power supply is a new generation of highly reliable and high-performance hybrid energy system designed by the company based on years of development and online operation experience. The system configuration supports 1-6 hot-swappable rectifier modules and 1-6 photovoltaic modules. The system monitoring module has battery management function and power supply system monitoring function. Appropriately configured sensors can realize environmental monitoring, and provide multiple sets of backup monitoring quantities. It can provide RS485 communication interface to facilitate remote monitoring and unattended operation.

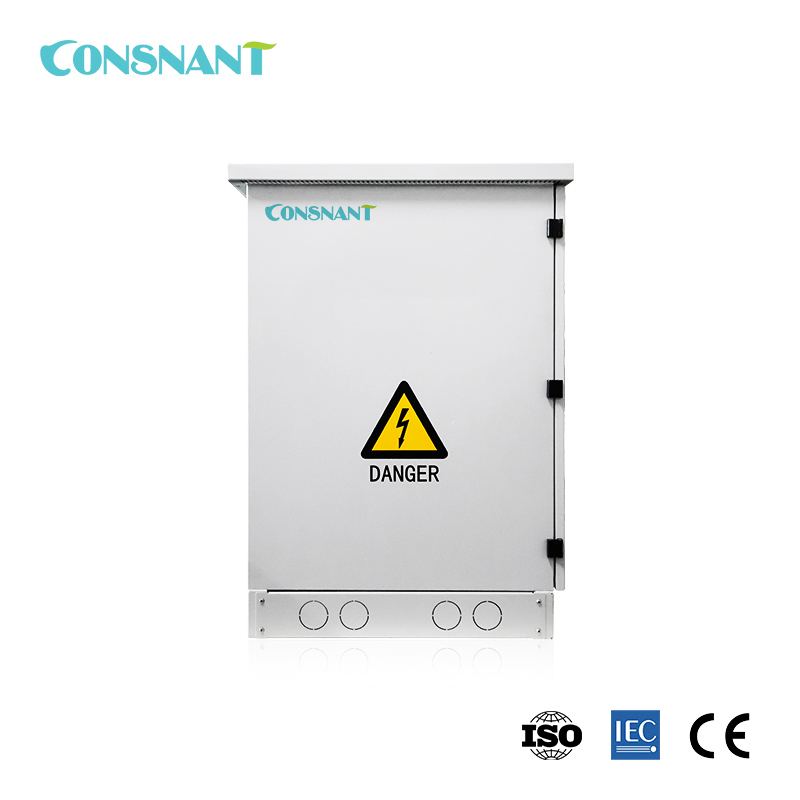

This embedded power supply is mainly used in outdoor cabinets.
Main product specifications
|
Input voltage range |
Output voltage |
Output(MAX) |
Output maximum power |
Configuration quantity |
|
Rectifier module |
176~300Vac |
-53.5V d c |
300A |
18KW |
6 |
|
Solar Charge Controller Module |
120~425Vdc |
-54.5V d c |
300A |
18KW |
6 |
|
Configure |
||||||
AC input: MCB 63A / 3P * 1, UK35 * 1 PV input: MCB 25A / 2P * 6, DC-SPD * 6 Battery access: MCB 125A / 1P * 3 Primary load disconnect: MCB 125A/1P*3, 63A/1P*3 Primary load disconnect is controlled by a 400A contactor (normally closed) |
Specific configuration: it can be customized according to the customer
|
|||||
Configuration: AC Class C 3 + 1 mode 20 KA / 40 KA SPD * 1, DC output lightning protection: Class C DC SPD * 1 |
Principle introduction

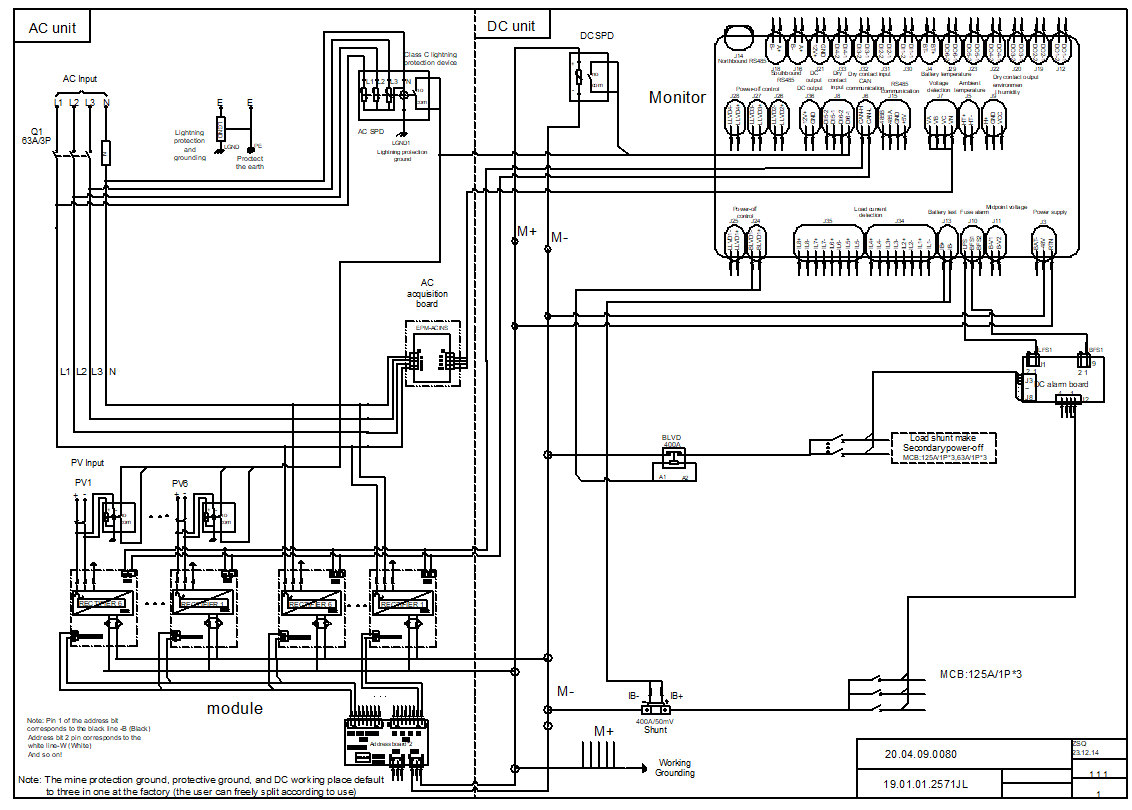

The principle of TRSS-48300 embedded power supply system is as follows:
The system is powered by three-phase AC mains power through the AC input circuit breaker, all the way to supply power to the rectifier module; at the same time, the three-phase samples are sent to the monitoring board for AC voltage detection. After the output of the rectifier module is combined, the negative pole is divided into two channels. The first channel is output to the negative input terminal of the DC load through the DC contactor and the circuit breaker respectively, and the second channel is connected to the negative input terminal of the battery through the main shunt and the circuit breaker;The DC contactor protects the battery from over-discharge under the control of monitoring; the positive pole of the output of the rectifier module is connected to the positive pole of the load and the positive pole of the battery is connected to the output positive row.
Environmental Conditions
Enviromental parameter |
Operating environment conditions |
Transportation environmental conditions |
Storage environmental conditions |
Remarks |
||
Project |
Parameter |
|||||
Climate conditions |
Temperature |
Low temperature |
-40℃ |
-40℃ |
-45℃ |
-40℃ full load start, + 45~ + 75℃ linear drop |
High temperature |
45℃ |
70℃ |
70℃ |
|||
Humidity |
Low relative humidity |
5% |
/ |
5% |
/
|
|
High relative humidity |
95% |
/ |
95% |
|||
Condensation |
not have |
/ |
not have |
|||
Altitude |
4000m |
4000m |
|
3000~4000m capacity reduction output |
||
Mechanical stress conditions |
Vibrate |
Sinusoidal vibration: 5~9Hz: amplitude of 3.5mm; 9~200Hz: Acceleration of 10m/s2; 3 Axial, sweep 5 vibration in each direction |
2~10Hz :30m2/s3; 10~200Hz :3m2/s3; 200~500Hz :1m2/s3; 3 Axial, 30min in each direction |
/ |
For the plug-in frame only, take out the rectifier module and monitoring module during testing |
|
Impact (collision) |
Acceleration of 250m/s2; Pulse width: 6ms; 3 axis 6 to each collision 500 times |
Acceleration of 400 m/s2; Pulse width: 6ms; 3 axis 6 to each collision 500 times |
/ |
|||
Drop |
/ |
Drop height of 1m; bottom surface 1 time |
/ |
|||
Cooling method |
Module forced air cooling |
Wind comes in from the front and comes out from the back |

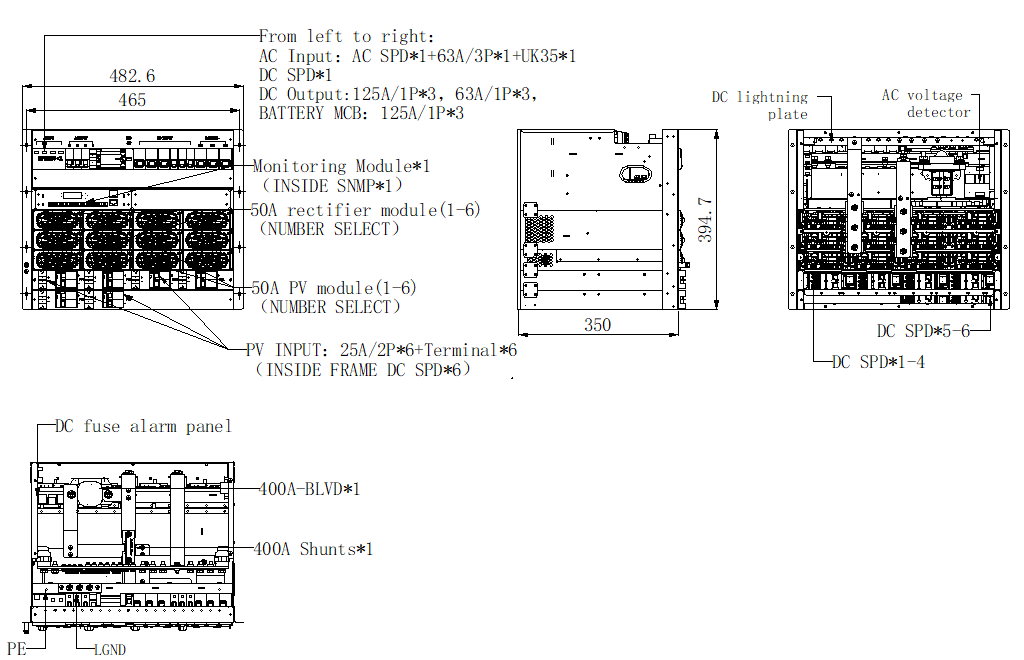

System Structure and Layout Drawing:
Technical Parameters
1.Input characteristics |
||||
ON. |
Project |
Technical parameter |
Remarks |
|
1.1 |
AC input rated voltage |
Single-phase 220Vac / three-phase 380Vac |
|
|
1.2 |
AC-input voltage range |
176Vdc~300Vac |
Full of work |
|
1.3 |
AC input maximum current |
40A |
1 phase, the most power supply: 2 modules |
|
1.4 |
AC input voltage frequency |
45~65Hz (Typical value 50 / 60Hz ) |
|
|
1.5 |
AC power factor |
≥0.99 |
220 Vac rated load |
|
1.6 |
Pv module input |
120Vdc ~ 425Vdc(starting voltage over 160Vdc) |
|
|
1.7 |
Pv-rated input voltage |
340Vdc |
|
|
1.8 |
MPPT voltage range |
120Vdc to 340Vdc |
|
|
1.9 |
Maximum input current of PV module |
17A |
|
|
1.10 |
Photovoltaic module reverse pole protection |
Wrong input polarity, no damage |
|
|
1.11 |
Photovoltaic module input insurance |
Positive and negative insurance |
|
|
1.12 |
PV maximum input voltage |
450Vdc (Power supply not be damaged) |
|
|
2. Output characteristics |
||||
Project |
Technical parameter |
Remarks |
||
2.1 |
Rectifier output voltage range |
-43.2Vdc~ -57.6Vdc(typical value-53.5Vdc) |
|
|
2.2 |
Recfier output maximum power |
18kW |
|
|
2.3 |
PV output voltage range |
-42Vdc~ -58Vdc (typical value-54.5Vdc) |
|
|
2.4 |
Voltage stabilization accuracy |
≤±1% |
|
|
2.5 |
Output ripple & noise |
≤200mVp-p |
Rated input voltage and load and bandwidth limit of 20 MHz |
|
2.6 |
Current-sharing imbalance |
≤±5% |
Within the 50- -100% load range |
|
2.7 |
Rectifier module efficiency |
≥93% |
220 Vac / rated load |
|
2.8 |
PV module efficiency |
≥95% |
@340/40%~70% Load -54.5Vdc |
|
2.9 |
Startup time |
3~10S |
The rated input voltage starts to the output voltage establishes to the setting value, the starting output needs to use the pre-flow limit function |
|
2.10 |
On/off overshoot amplitude |
≤±5% |
When either module is hot plugged (the load current should not be greater than the total output current in the working module), the system output voltage fluctuates |
|
2.11 |
Dynamic response |
Overshoot range |
≤±5% |
25% -50% -25% or 50% -75% -50% load change |
Recovery time |
≤200µS |
|||
2.12 |
Temperature coefficient |
≤±0.02%/℃ |
|
|
2.13 |
Psophometrically weighted noise voltage |
≤2mV |
|
|
2.14 |
Wide-band noise voltage |
3.4~150KHz |
≤50mV |
|
0.15~30M Hz |
≤20mV |
|
||
2.15 |
Discrete noise voltage |
3.4~150KHz |
≤5mV |
|
15~200KHz |
≤3mV |
|
||
20~500KHz |
≤2mV |
|
||
0.5~30M Hz |
≤1mV |
|
||
2.16 |
Voltage drop |
≤500mV |
|
|
ON. |
Project |
Technical parameter |
Remarks |
|
3.1 |
AC input overvoltage protection |
300Vdc |
Can self-recovery, the difference of not less than 10 Vac |
|
3.2 |
Photovoltaic input overvoltage protection |
430Vdc |
Can self-recovery, the difference of not less than 15 Vac |
|
3.3 |
AC input undervoltage protection |
85Vdc |
Can self-recover with a return difference of not less than 5 Vac |
|
3.4 |
Photovoltaic input undervoltage protection |
110Vdc |
Can self-recovery, the difference of not less than 40 Vac |
|
3.5 |
Recfier output overvoltage protection |
-59Vdc~-61Vdc |
Lock, can not recover, need to restart |
|
3.6 |
Photovoltaic output overvoltage protection |
Internal-58.5 to-60.5Vdc, external: 63Vdc |
Lock, can not recover, need to restart |
|
3.7 |
Output undervoltage protection |
Battery disconnect protection |
Through monitoring, the battery can be powered down, and the protection point can be set |
|
3.8 |
Output limit protection |
Have |
|
|
3.9 |
Output short circuit protection |
Have |
Long-term short circuit, can recover from itself |
|
3.10 |
Overtemperature protection |
It can recover automatically at the ambient temperature of 75℃ |
|
|
3.11 |
Battery polarity is connected to reverse protection |
Not have |
According to the user needs can have the battery polarity reverse connection protection function |
|
3.12 |
PV underpower protection |
Input power <50W and shutdown for 5 minutes |
The module starts when the input voltage is greater than 160 Vdc for 5 minutes. |
