Model:CNS110 1-12KW
Nominal voltage:120VAC 1-6KW;220/230/240VAC1-12KW
Nominal frequency:50/60Hz
Item No :
CNS110 1-12KWOrder(MOQ) :
10 pcsPayment :
T/TProduct Origin :
ChinaColor :
WhiteShipping Port :
ShenzhenLead Time :
2 weeksWeight :
20-60 KgAC/SOLAR Charging Off Grid Hybrid Inverter
Description

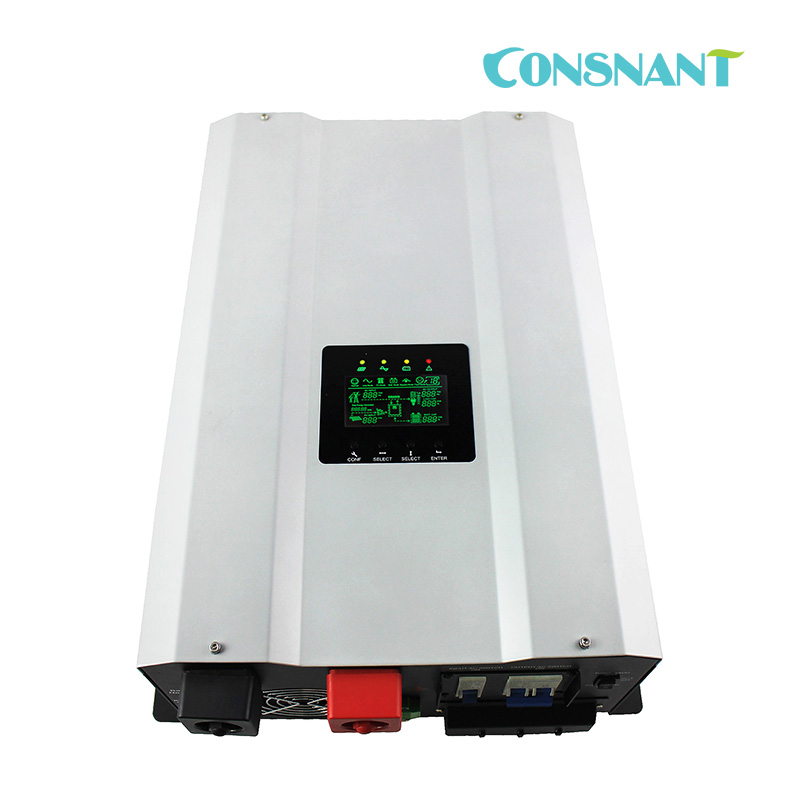

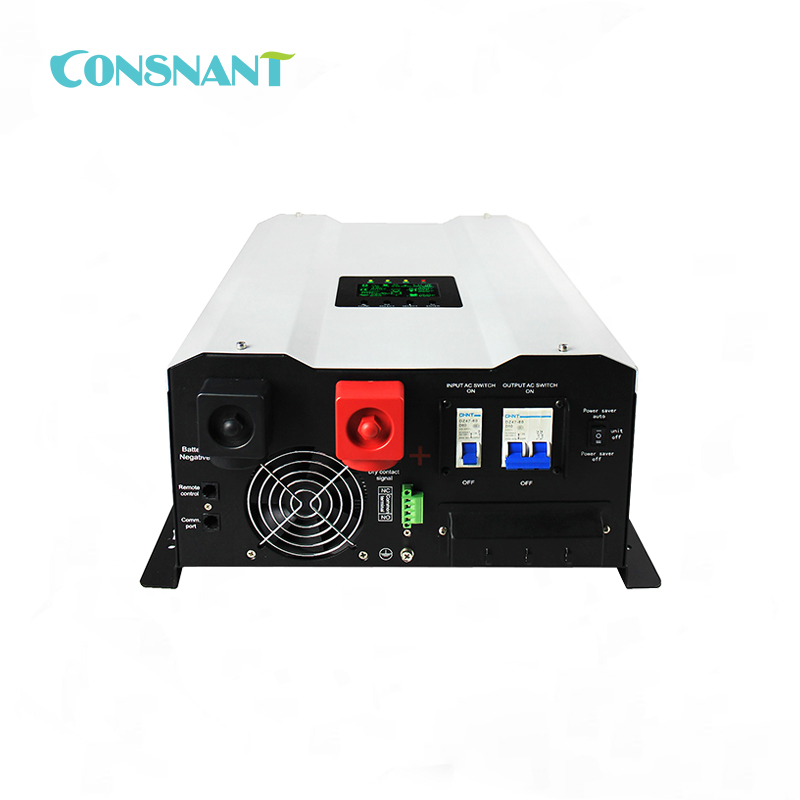

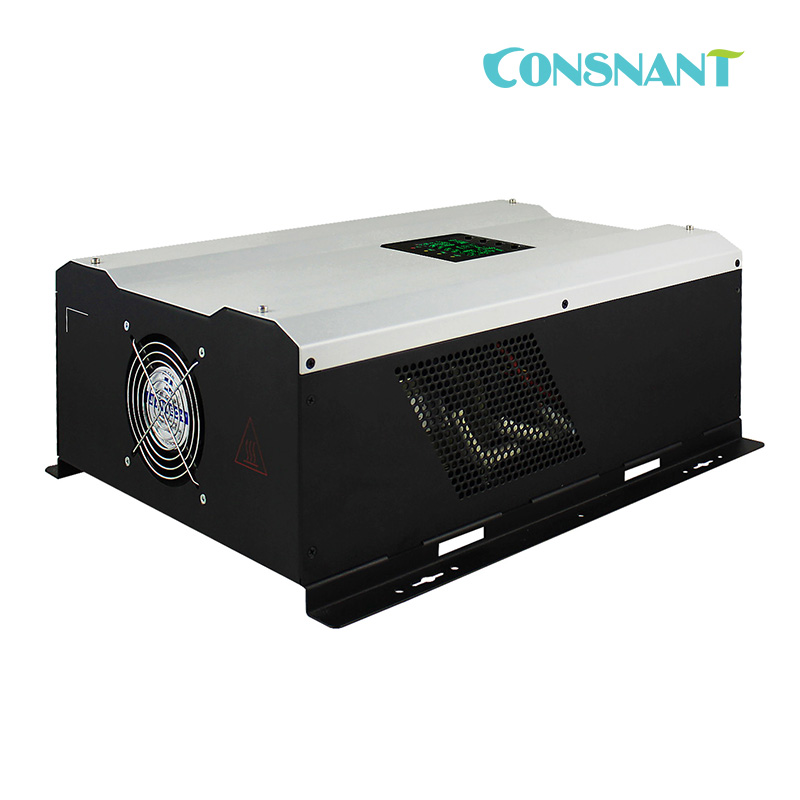

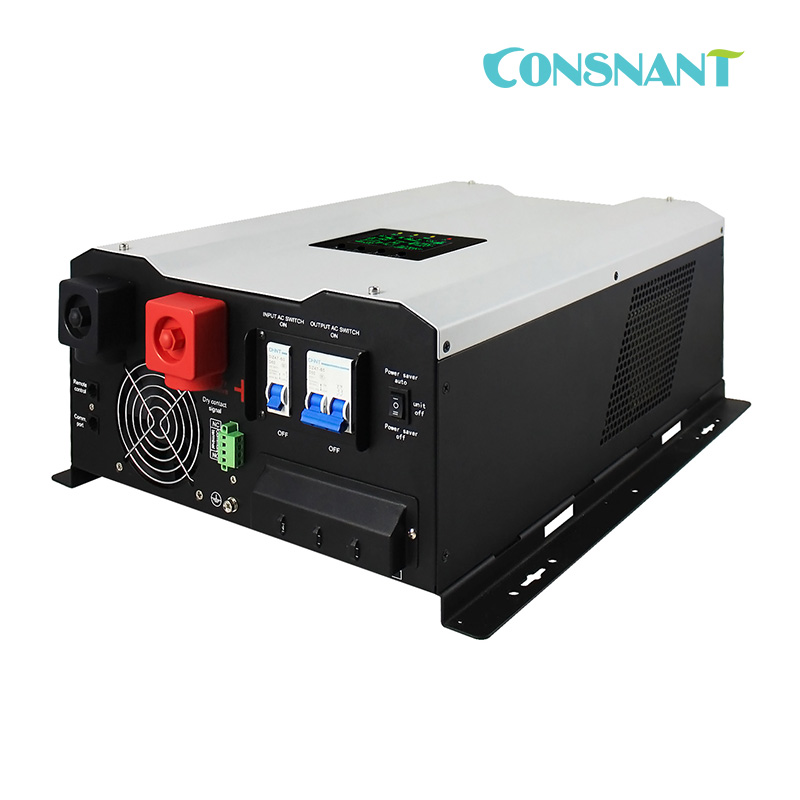

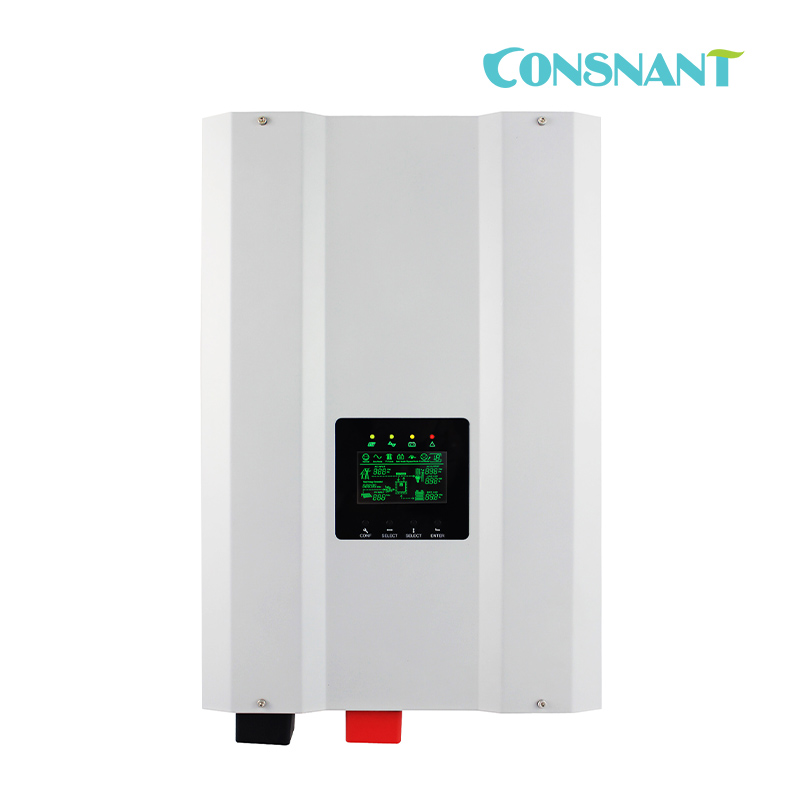

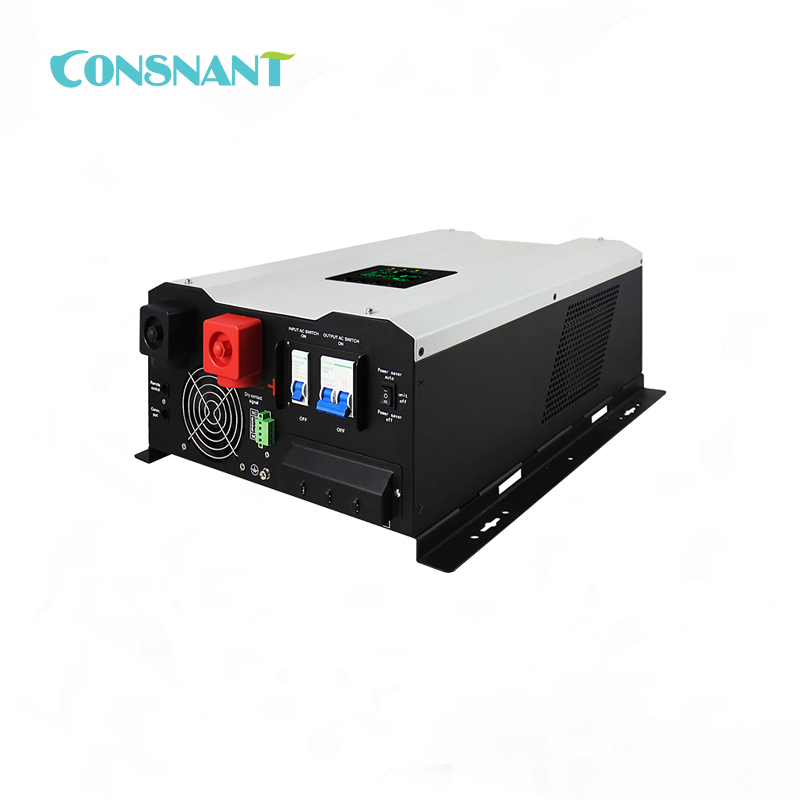

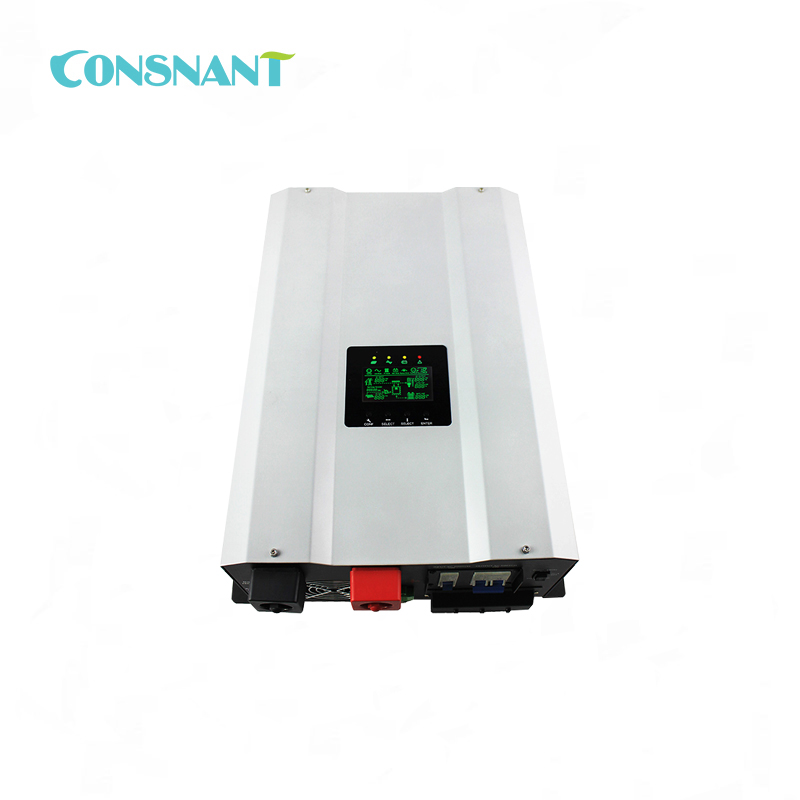

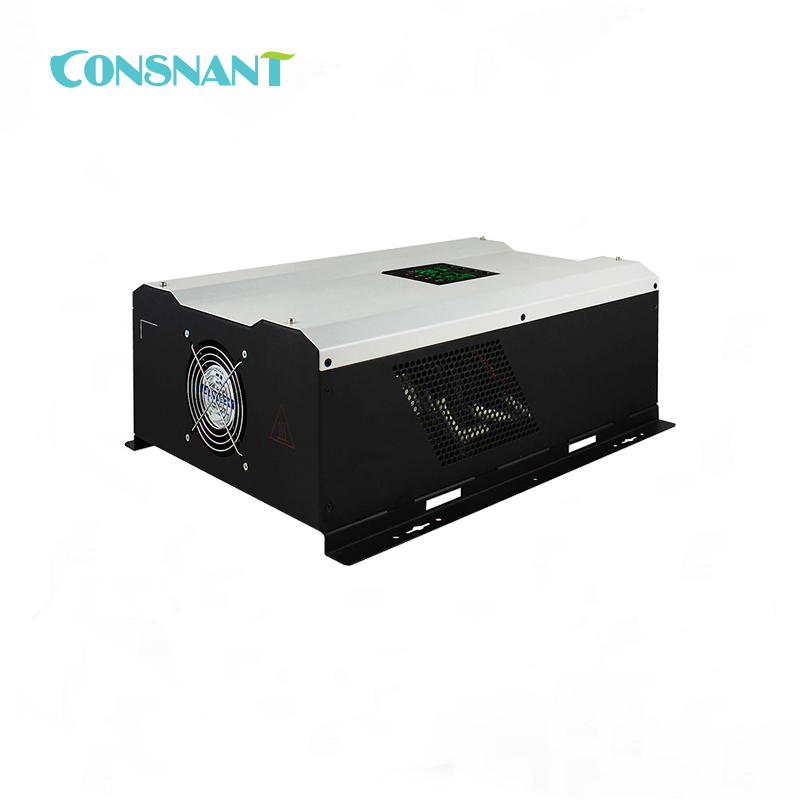

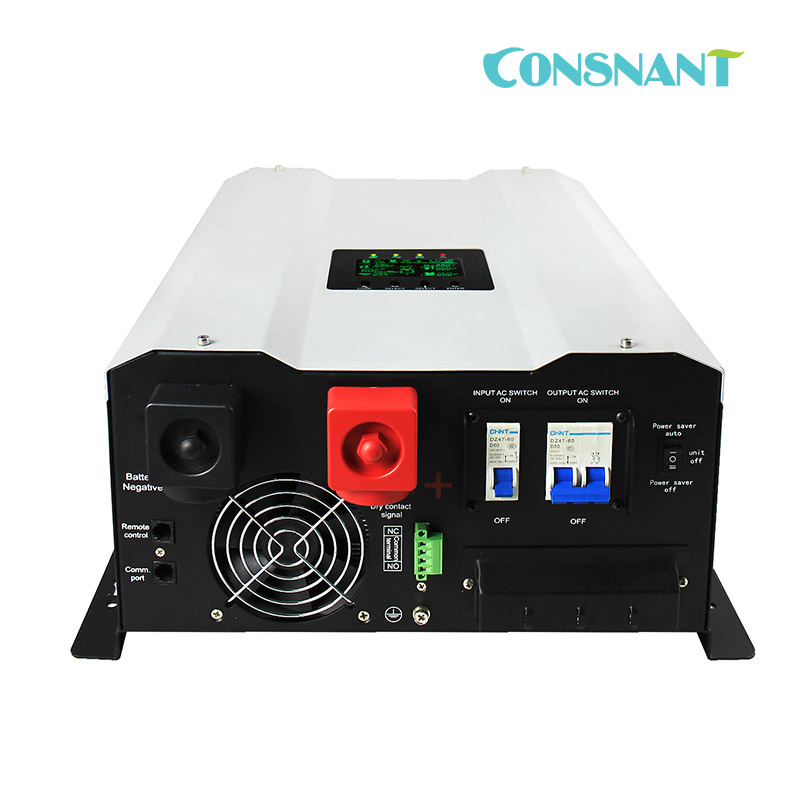

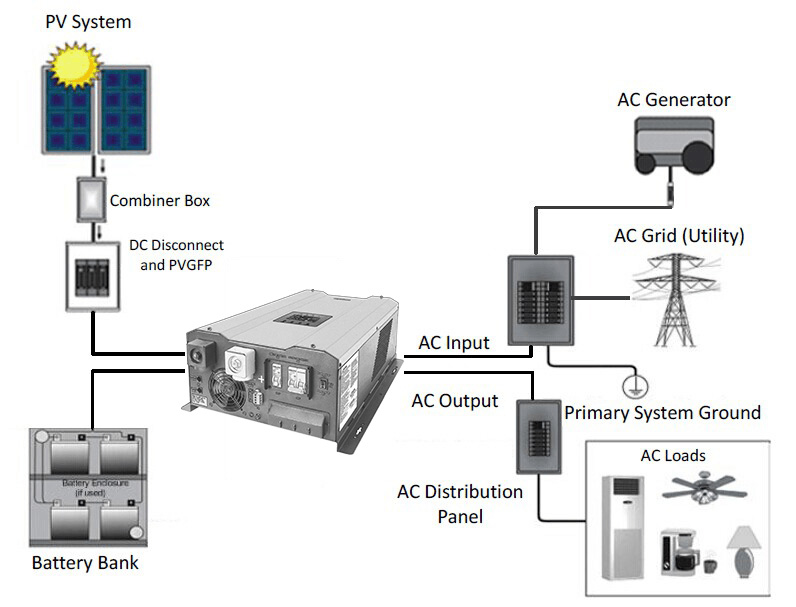

CNS110 Series inverter is low frequency pure sine wave Dc 48V to AC 220V all in one inverter. Electrically integrated solar inverter consists of a 1KW-12KW DC 48V to 120/240-volt AC split phase pure sine wave inverter with 60A or 120A MPPT solar charge controller, and AC charger to DC battery charger and an automatic transfer switch ideal for your off-grid solar system.
Features:
• AC/Solar charger Off grid Hybrid lnverter.
• LED/LCD display,Enhanced functions setting via LCD,Man-machine intelligent design.
• Built-in 60A optional MPPT solar charger controller.
• LCD shows the solar capacity.
• 5 stages adjustable AC charging current.
• AC charging also can be closed.
• AC/DC priority modes can be closed.
• Generator restart signal(Dry contact).
• 3 times peak power.Strong loading capacity.
• Overload,output short-circuit protection.
Technical specifications
| Model | CNS110-1KW -12KW | ||
| LV Model(1-6KW) | HV Model(1-12KW) | ||
| Line Mode Specifications: | |||
| Input Voltage | Input Voltage Waveform | Sinusoidal (utility or generator) | |
| Nominal Input Voltage | LV 120Vac | HV 230Vac | |
| Low Line Disconnect | Normal:85Vac±4% | Normal:184Vac±4% | |
| Wide:80Vac±4% | Wide:135Vac±4% | ||
Low Line Re-connect |
Normal:95Vac±4% | Normal:194Vac±4% | |
| Wide:85Vac±4% | Wide:145Vac±4% | ||
High Line Disconnect |
Normal:136Vac±4% | Normal:263Vac±4% | |
| Wide:140Vac±4% | Wide:263Vac±4% | ||
| High Line Re-connect | Normal:131Vac±4% | Normal:253Vac±4% | |
| Wide:135Vac±4% | Wide:253Vac±4% | ||
| Max AC Input Voltage | 150Vrms | 270Vrms | |
| Input Frequency | Nominal Input Frequency | 50Hz/ 60Hz(Auto detection) | |
|
Low Line Frequency Re-connect |
51+0.3Hz for 60Hz; 41+0.3Hz for 50Hz; |
||
| Low Line Frequency Disconnect | 50+0.3Hz for 60Hz; 40+0.3Hz for 50Hz; |
||
|
High Line Frequency Re-connect |
64+0.3Hz for 60Hz; 54+0.3Hz for 50Hz; |
||
| High Line Frequency Disconnect | 65+0.3Hz for 60Hz; 55+0.3Hz for 50Hz; |
||
| Main Functions | Output Voltage Waveform | As same as Input Waveform | |
| Over-Load Protection (SMPS load) | Air switch | ||
| Output Short Circuit Protection | Air switch | ||
| Max Bypass Overload Current | 40A/50A | ||
| Battery Inverter Mode Specifications: | |||||
| output | Output Voltage Waveform | Sine wave | |||
| Rated Output Power (KW) | LV:1/KW/2KW3KW/ 4KW/5KW/6KW |
HV:1KW/2KW/3KW/4KW/5KW/6KW/ 7KW/8KW/9KW/10KW/12KW |
|||
| Power Factor | 0.9~1.0 | ||||
| Nominal Output Voltage (V) | LV:120Vac±10%rms | HV:230Vac±10%rms | |||
| Nominal Output Frequency (Hz) | 60Hz±0.3Hz 50Hz±0.3Hz |
||||
| DC Voltage | Nominal DC Input Voltage | 12VDC/24VDC/48VDC | |||
| DC Voltage range | 10-15.5Vdc for 12VDC 20-31.0Vdc for 24VDC 40-62.0Vdc for 48VDC |
||||
| Low Battery Alarm | 10.5Vdc±0.3Vdc for 12V battery 21.0Vdc±0.6Vdc for 24V battery 42.0Vdc±1.2Vdc for 48V battery |
||||
| Low DC input Shut-down | 10.0Vdc±0.3Vdc for 12V battery 20.0vdc± 0.6Vdc for 24V battery 40.0Vdc±1.2Vdc for 48V battery |
||||
| High DC input Alarm & Fault | 16Vdc±0.3Vdc for 12V battery 32Vdc±0.6Vdc for 24V battery 64Vdc±1.2Vdc for 48V battery |
||||
| High DC input Recovery | 15.5Vdc±0.3Vdc for 12V battery 31.0Vdc±0.6Vdc for 24V battery 62.0Vdc±1.2Vdc for 48V battery |
||||
| AC Charger | Nominal Charge Current | 20A/35A/50A/70A/90A(5 stages adjustable charging current) | |||
| Charge Current Regulation | ±5Adc | ||||
| Over Charge Protection | Bat.V≥15.5VDC for 12V battery Bat.V≥31.0VDC for 24V battery Bat.V≥62.0VDC for 48V battery beeps 0.5s every 1s & fault after 60s |
||||
| Algorithm | Three stage: Boost CC (constant current stage)→ Boost CV (constant voltage stage)→ Float (constant voltage stage) |
||||
| Solar charger | Rated Charge Current | 40A | 60A | ||
| Rated charge battery Voltage type | 12V/24V/48V | 12V/24V | |||
| Max.PV open circuit array voltage |
12V for 40Vdc |
||||
| Charger mode | MPPT | ||||
| PV Low Voltage Re-connect | PV≥Bat.V=3V | ||||
| PV Low Voltage Disconnect | PV≤Bat.V | ||||
| Efficiency | Efficiency | ≥97% | |||
| Efficiency (Battery Mode) | ≥85% | ||||
| Efficiency (Line Mode) | >98% | ||||
| Transfer Time | Ac to Dc | 20ms(Max) | |||
| Dc to Ac | 15ms (Max) | ||||
| System parameter | Over-Load Protection | 110%<load<150%, beeps 0.5s every 1s, and Fault after 60s off the output, Load>150%, beeps 0.5s every 1s, and Fault after 20s. |
|||
| Output Short Circuit Protection | Current limit (Fault after 10s) | ||||
| Surge rating(10s) | 1:3(VA) | ||||
| Power saver | Load≤25W(Enabled on"P/S auto" setting of Remote control) | ||||
| Protections | Low battery, over charging, over load , over temp. | ||||
| Indicators | LED+LCD Display | ||||
General Specifications |
Operating Temperature Range | 0℃ to 40℃ | |||
| Storage temperature | -15℃~60℃ | ||||
| Operation humidity | 5% to 95%(non-condensing) | ||||
| Audible Noise | 60dB max | ||||
| Cooling | Forced air, variable speed fan | ||||
| Dimension(L*W*H) | 1-3KW: 526x423x260mm 4-6KW: 530*396*190mm 7-12KW:627*416*204mm |
||||
| Net weight(Kg) | 1KW 21.5Kg;1.5KW 23.5kg;2KW 26Kg; 3KW 30.5kg;4KW 32kg; 5KW 36.5kg; 6KW 40.5kg;7KW 43.5kg; 8KW 50kg; 10KW 57.5kg;12KW 60 kg |
||||
