Model: CNS110 8000-48 PLUS
Nominal Capacity: 8KW
Nominal Voltage: 48VDC
Output Voltage Range: 184-265VAC
Input Voltage Range: 120-280VAC
MPPT Operating Voltage Range: 120-450VDC
Item No :
CNS110 8000-48 PLUSOrder(MOQ) :
10Payment :
T/TProduct Origin :
ChinaColor :
WhiteShipping Port :
ShenzhenLead Time :
3-5 daysWeight :

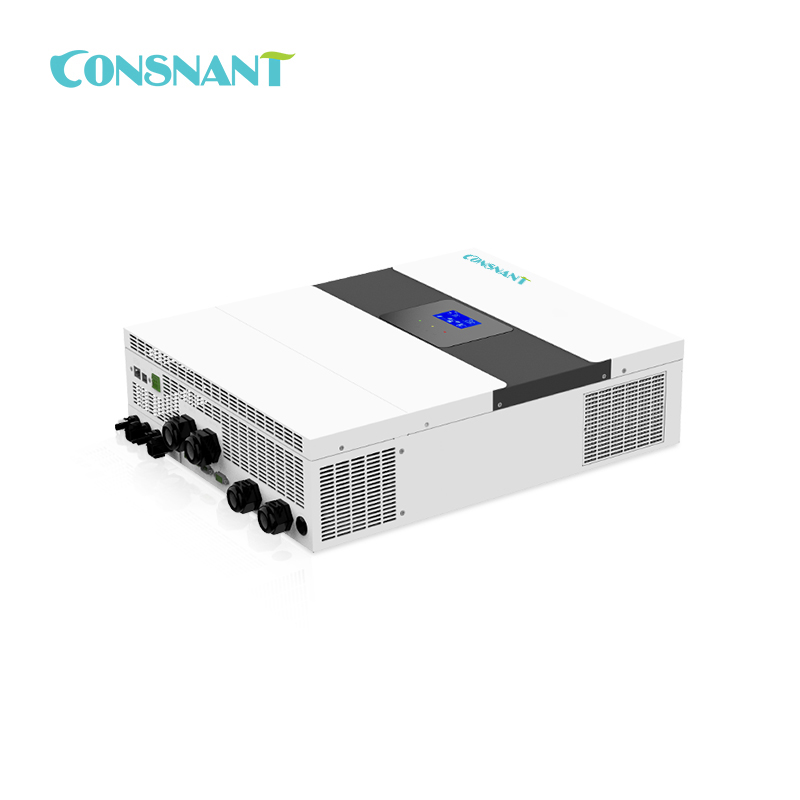

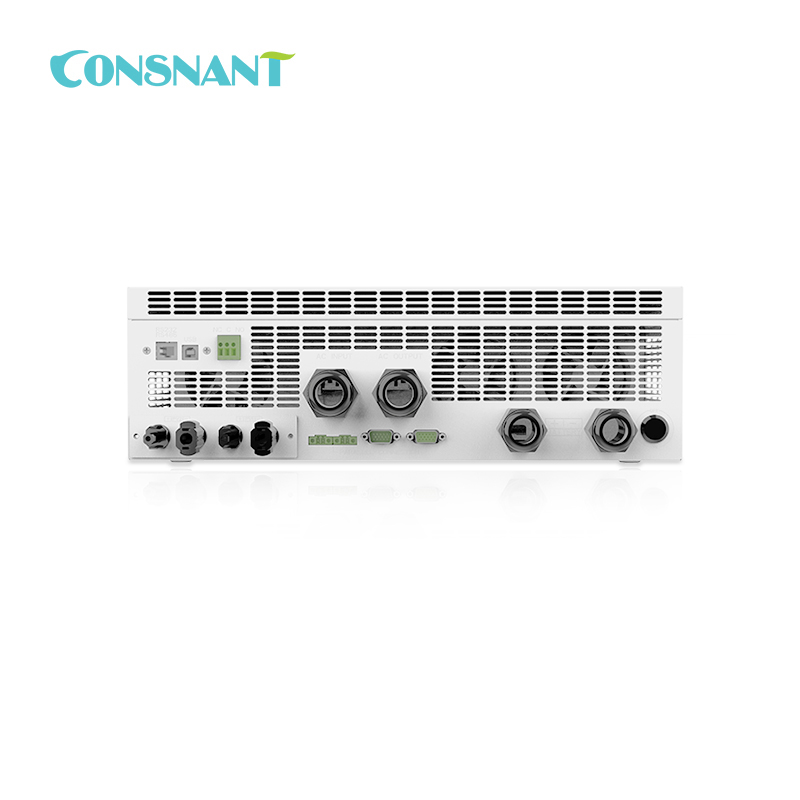

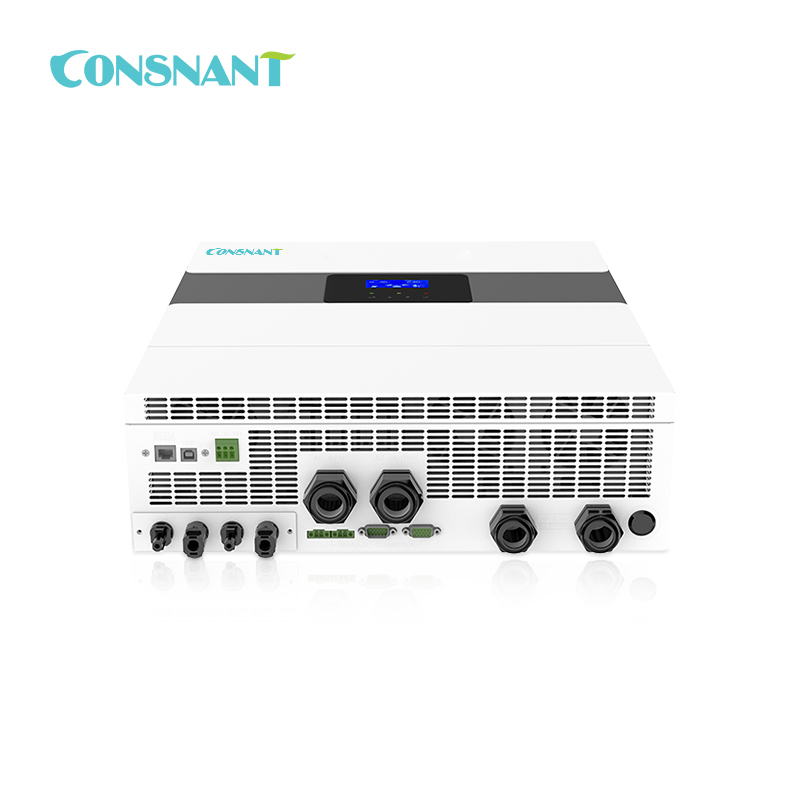

23 KgHigh Power Hybrid Inverter 8KW
SINGLE HIGH-POWER 8KW

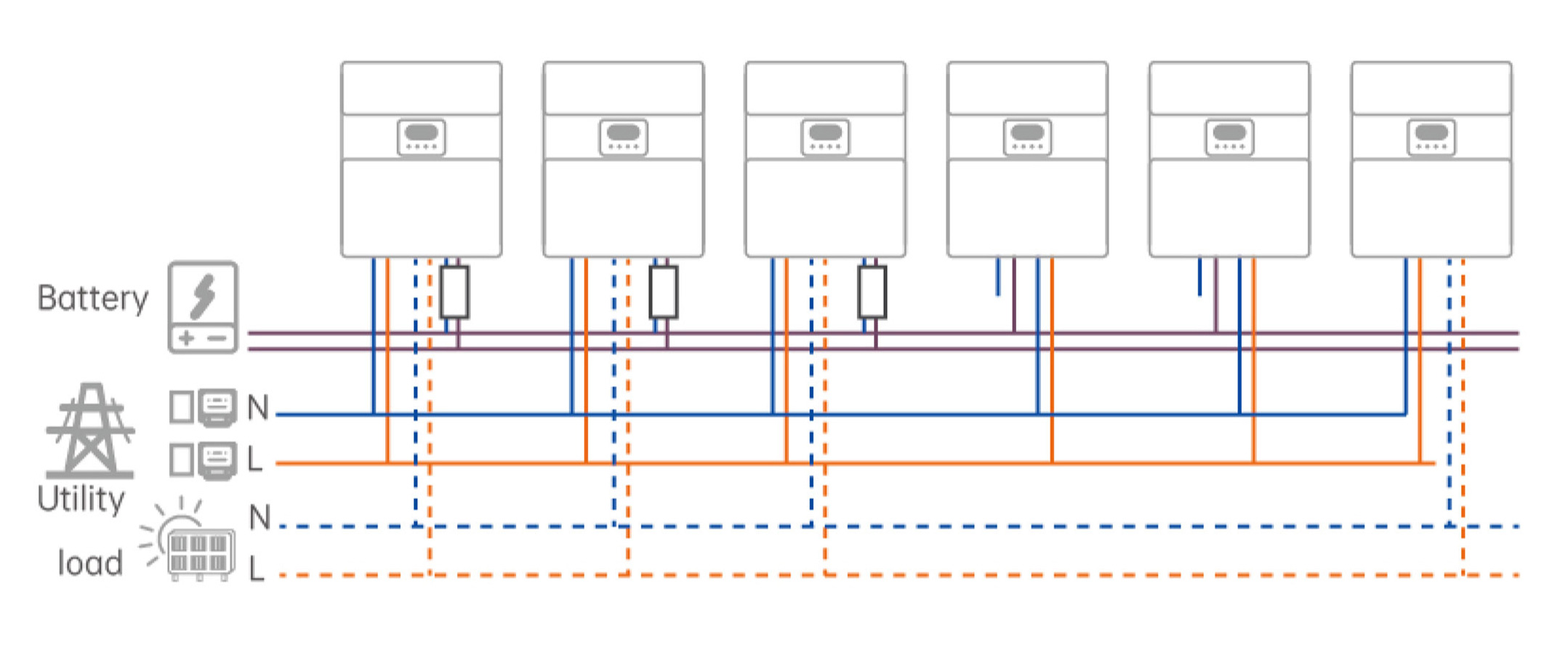

SUPPORTS THREE-PHASE MODE
Hybrid Energy Storage System
Technical Parameters
| Model | CNS110 8000-48 PLUS | ||
| Max PV Array Power | 8000W | ||
| Rated Output Power | 8000W | ||
| Maximum PVArray Open Circuit Voltage | 500VDC | ||
| MPPT Range @Operating Voltage | 120-450VDC | ||
| Grid Output(AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Voltage Range | 184-265VAC | ||
| Nominal Output Current | 25.5A/24.3A/23.3A | ||
| Ef Fciency | 93.5% | ||
| Off-Grid,Hybrid Operation | |||
| Grid Input Acceptable Input Voltage Range | 120-280VAC | ||
| Frequency Range | 50Hz/60Hz | ||
| Battery Mode Output(AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Wave Form | Pure Sine Wave | ||
| Battery &Charger | |||
| Nominal DC Voltage | 48VDC | ||
| Maximum Solar Charger Current | 120A | ||
| Maximum AC Charge Current | 120A | ||
| Maximum Charge Current | 120A | ||
| Emergency Output Power | |||
| Maximum Output Power | 8000W | ||
| Surge Power | 16000VA | ||
| Automatic Transfer Time | <8ms | ||
| Interface | |||
| Parallel Function | Yes | ||
| Communication | USB &RS232 RS485CAN | ||
| Environment | |||
| Relative Humidity | 0~90%RH(No Condensing) | ||
| Operating Temperature | 0℃to 50℃ |
||
| Net Weight(KG) | 21 | ||
| Gross Weight (KG) | 23 | ||
| Product Size(mm) | 490*580*139 | ||
| Package Size(mm) | 588*677*254 | ||
