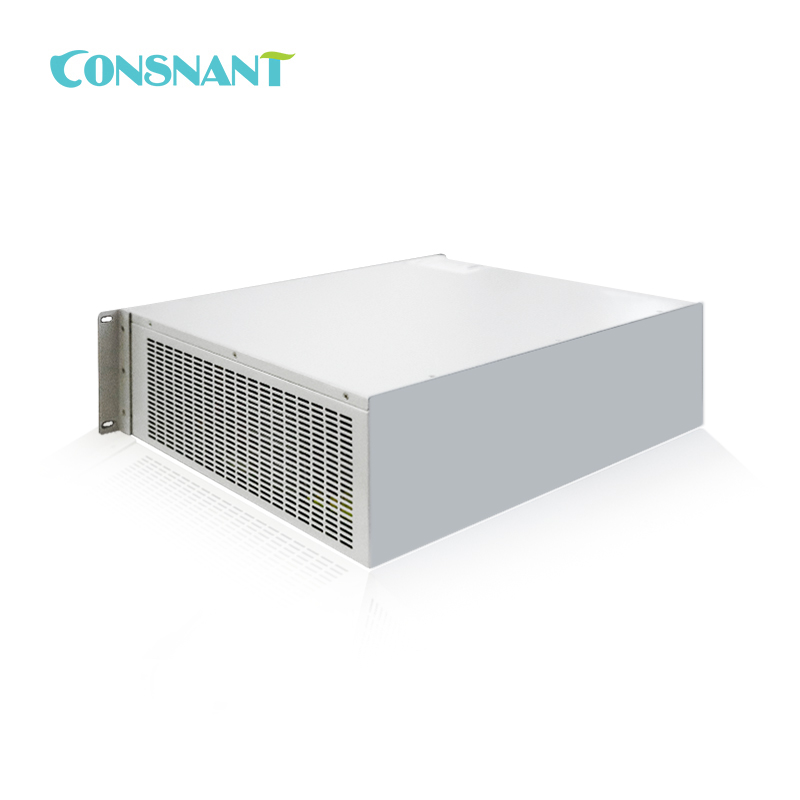

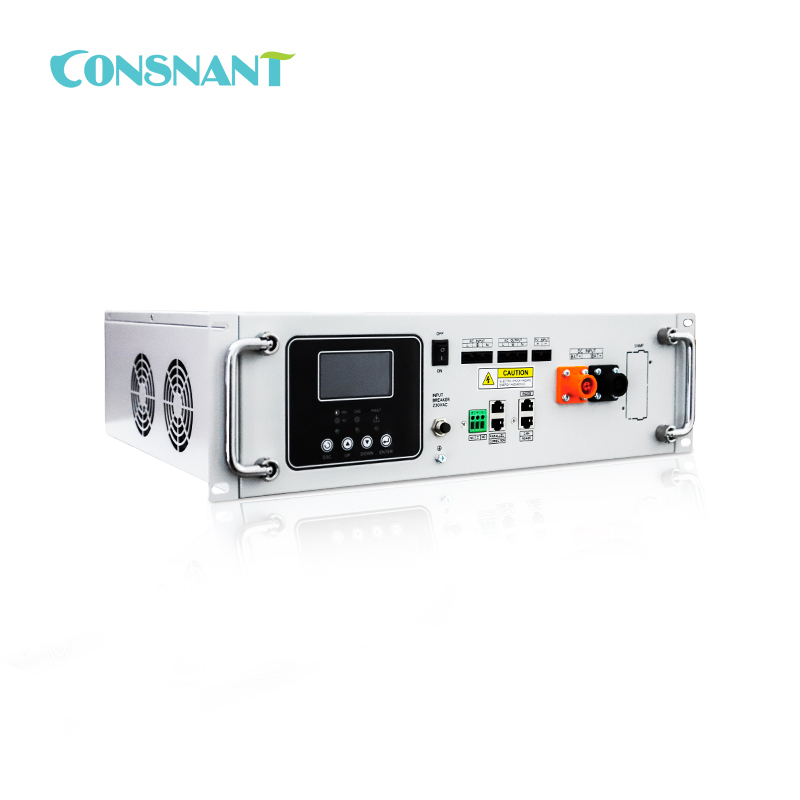

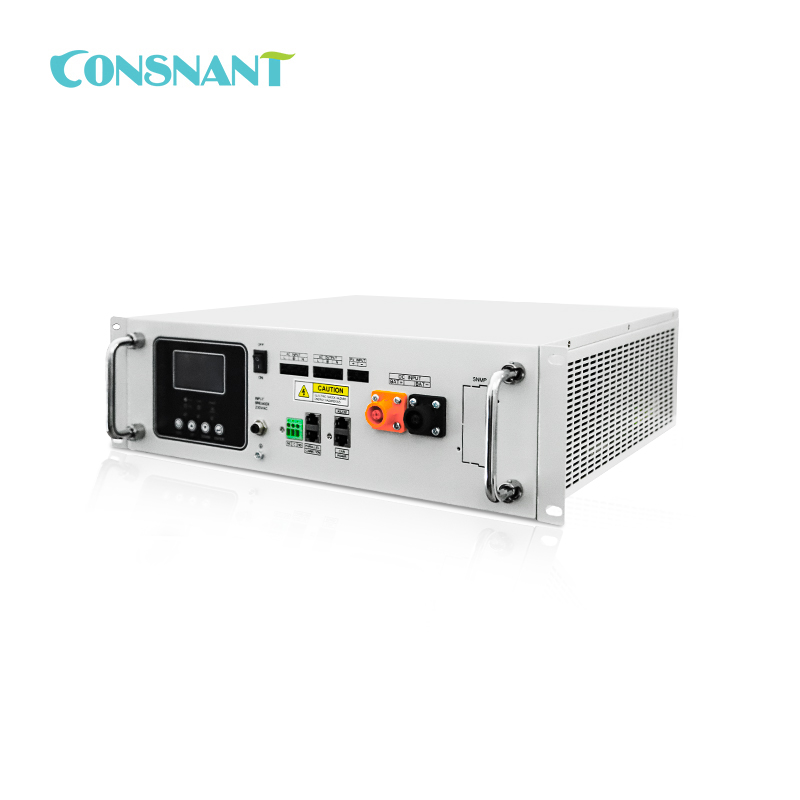

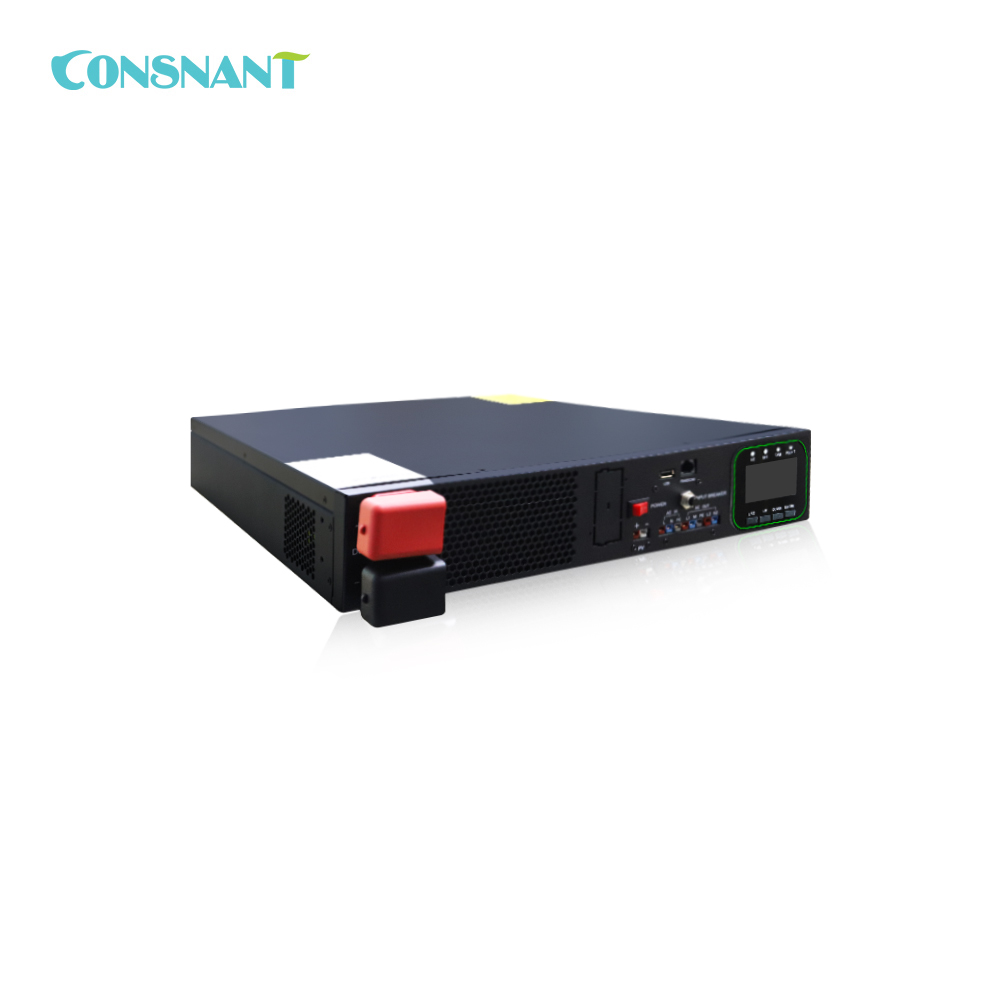

Rack Mount Solar Inverter 5500W

CNS110R 5500-48

Nominal Capacity: 3.5KW/5.5KW

DC Input Voltage:48VDC

Output Voltage: 230VAC

Item No :
CNS110R 5500-48
Order(MOQ) :
50 pcs
Payment :
T/T
Product Origin :
China
Color :
RAL7035
Shipping Port :
Shenzhen
Lead Time :
2 weeks
Weight :
11.5 Kg

Inquire Now

Rack Mount Solar Inverter 5500W

INTRODUCTION

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery

charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user- configurable and easy-accessible button operation such as battery charging current, mains/solar charger priority, and acceptable input voltage based on different applications.

Features:

• Pure sine wave inverter.

• Configurable mains input voltage range for home appliances and personal computers via load requirements.

• Configurable battery charging current based on load requirements.

• Configurable Mains/Solar Charger priority via LCD setting.

• Compatible to mains input and generator input.

• Auto restart while mains is recovering.

• Overload/Over temperature/ short circuit protection.

• Smart battery charger design for optimized battery performance.

• Cold start function.

• Remote monitor function via SNMP Card(optional)

Basic System Architecture

The following illustration shows basic application for this solar inverter. It also includes following devices to have a complete running system:

• Generator or Mains.

• PV modules.

Consult with your system integrator for other possible system architectures depending on your requirements.

This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.

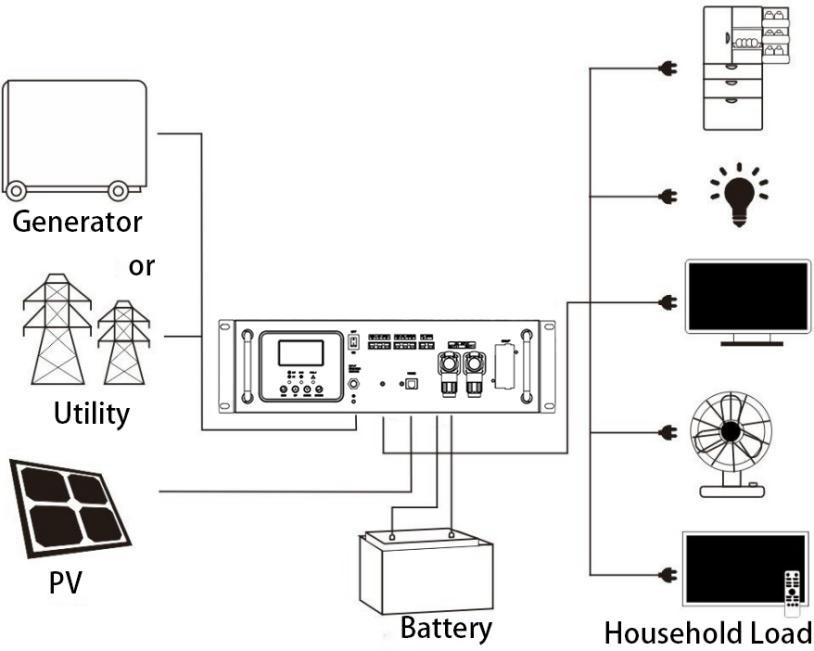

Figure 1 Hybrid Power System

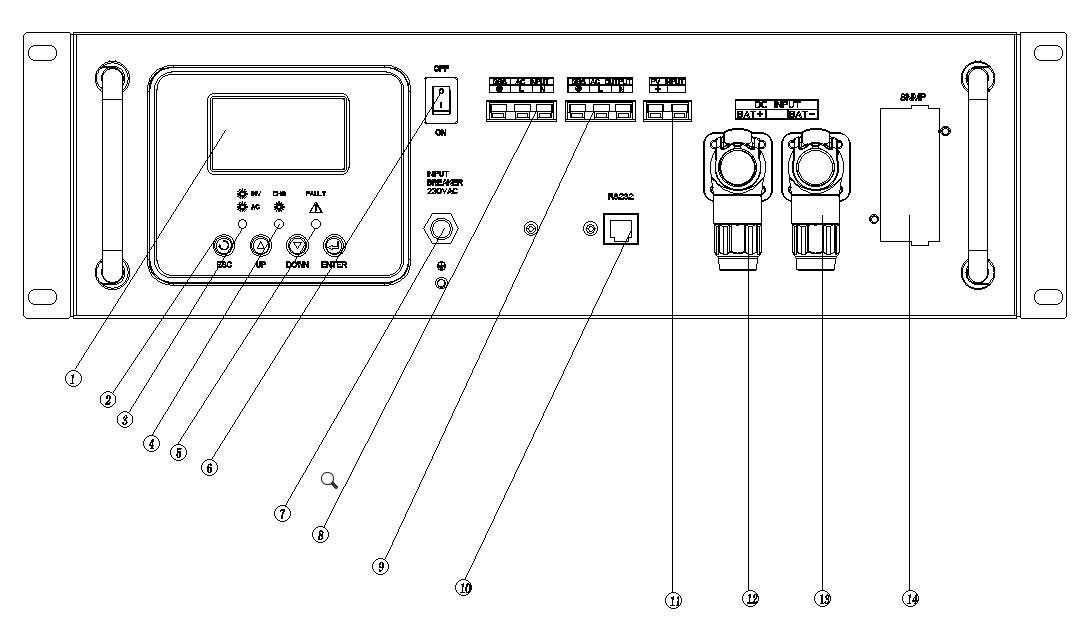

Product Overview

1. LCD display

2. Function Keys

3. Status indicator

4. Charging indicator

5. Fault indicator

6. Power ON/OFF switch

7. Breaker

8. Mains input

9. Mains output

10. RS-232 communication port

11. PV input

12. Battery Positive Industrial Connector

13. Battery Negative Industrial Connector

14. SNMP smart card slot

Mounting the Unit:

Read this manual carefully and familiarize yourself with the installation procedures before installing.

• Be very careful when installing the battery, and wear protective goggles when installing lead-acid liquid battery. Once in contact with the battery acid, rinse the contact part with water in time.

• Avoid placing metal objects near the battery to prevent a short circuit.

• Acidic gases may be generated when the battery is charged, so make sure the environment is well ventilated.

• When installing the cabinet, be sure to leave enough space around the machine for heat dissipation; do not install the machine and lead-acid liquid battery in the same cabinet, so as to avoid the acid gas generated when the battery works that may corrode the machine.

• Only charge the battery that meets the requirements of this all-in-one machine.

• The false connection points and corroded wires may generate great heat that may melt the wire insulation, burn the surrounding material, or even cause fire, so male sure that the connectors are tightened, and the wires should be fixed with ties to avoid shaking when moving the machine, causing the connectors to be loose.

• The system connection wires should be selected according to the current density of not more than 5A/mm2.

• When installing outdoors, avoid direct sunlight and rainwater infiltration.

• When the power is turned off, there is still a high voltage inside the machine, so do not open or touch the internal components and wait for the capacitor runs out of power.

• Do not install the all-in-one machine in harsh environments such as wet, greasy, flammable, explosive or dusty.

• Do not reverse the polarity of the battery input end of this product, otherwise the equipment may easily damaged or unpredictable danger may occur.

• The mains input and AC output are high voltage, so do not touch the wire connections.

• When the fan is working, do not touch to prevent injury.

• It is necessary to confirm that it is the only input device for loads as needed and it is prohibited to use it in parallel with other input AC power to avoid damage.

Technical Parameters:

Model	CNS110R 3500-24	CNS110R 5500-48
Rated Power	3500VA/3500W	5500VA/5500W
Input
Voltage	230VAC
Optional Voltage Range	170-280VAC(For Personal Computers);90-280VAC(For Home Appliances)
Frequency Range	50HZ/60HZ(Auto Sensing)
Output
AC Voltage Regulation	230VAC±5%
Surge Power	7000VA	11000VA
Eficiency(Peak)	93.5%
Transfer Time	10ms(For Personal Computers);20ms(For Home Appliances)
Waveform	Pure Sine Wave
Battery
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	60VDC
PV Charge & AC Charge
Max.PV Array Power	3500W	5500w
Max.PV Array Open Circuit Voltage	500V DC
MPPT Range &Operating Voltage	120~450V DC
Max.Solar Charge Current	80A
Max.AC Charge Current	80A
Solar Charger Type	MPPT
Physical Properties
Packagesize,D"WH(mm)	500500232
Net Weight(kgs)	10.5	12.5
Communication Interface	RS232/RS485CAN/SNMP/Dry contact
Environment
Relative Humidity	5%to95%
Operating Temperature	-10℃to 50℃
Storage Temperature	15℃ to 60℃
