AGM Series 12VDC (7AH-260AH)
Capacity Range(C20): 7Ah – 260Ah
Nominal Voltage: 12VDC
Design Life: five years (less than 20AH), ten years (more than 20Ah) (under 25℃±5℃ environment)
Item No :
AGM Series 7Ah – 260AhOrder(MOQ) :
50-500 pcsPayment :
T/TProduct Origin :
ChinaColor :
WhiteShipping Port :
ShenzhenLead Time :
2 weeksWeight :
2-70 KgAGM Series Valve Regulated Lead-Acid Battery 12VDC (7AH-260AH)
Product Features：
• Capacity range:7Ah-260Ah
• Voltage class:12V
• Long design life (25℃): 12 years
• Low self-discharge rate:≤3%/month
• Good high rate discharge performance
• High sealed reaction efficiency:≥ 99%
• Wide operation temperature range:-20℃~60℃
• Structure: compact design,lower internal resistance
• Plate: Pasted flat type, with patent formula of AM
• Terminal: two or more types terminals are convenient for selection
• Separator: using improved AGM separator,makes lower resistance,higher assembling pressure to increase deep cycle life
• Battery case: made of high strength ABS(UL94-HB)and UL94-V0is optional
• Terminal sealing: double sealing technics(mechanical + epoxy gule)
Main Application Fields:
Float Use:
Communication and power equipment
Emergency lighting equipment
Warning system
Various ranging instruments
Office computers, microcomputer processors and OA equipment
UPS/EPS power
Transformer, power station emergency power system
Medical instruments
Recycle:
Portable power, VCR, video etc.
Electric toys, lawn mowers, vacuum cleaners and other power tools
Video camera
Portable measuring machine
Lighting equipment
Various signaling systems
Technical parameters:
| Model | Nominal Voltage |
Capacity |
Dimension | Weight | Terminal Type |
Terminal Position |
|||
| Length | Width | Height | Total Height | Kg | |||||
| (V) | (Ah) | mm | mm | mm | mm | ||||
| AGM 7-12 | 12 | 7 | 151 | 65 | 94 | 100 | 1.95 | F1/F2 | F |
| AGM 9-12EP | 12 | 9 | 151 | 65 | 94 | 100 | 2.55 | F1/F2 | F |
| AGM 9-12 | 12 | 9 | 151 | 65 | 94 | 100 | 2.30 | F1/F2 | F |
| AGM 9-12S | 12 | 9 | 151 | 65 | 111 | 117 | 2.45 | F1/F2 | F |
| AGM 12-12 | 12 | 12 | 151 | 98 | 95 | 101 | 3.50 | F1/F2 | F |
| AGM 12-12A | 12 | 12 | 151 | 98 | 95 | 101 | 3.15 | F1/F2 | F |
| AGM 18-12 | 12 | 18 | 181 | 77 | 167 | 167 | 4.85 | F3(M5)/F13-BP(M5) | D |
| AGM 24-12 | 12 | 24 | 166 | 176 | 125 | 125 | 7.00 | F3(M5)/F13-BP(M5) | D |
| AGM 24-12S | 12 | 24 | 165 | 125 | 174 | 174 | 7.40 | T28(M5)/F11(M6) | D |
| AGM 40-12 | 12 | 40 | 198 | 166 | 169 | 169 | 11.5 | F4(M5)/F11(M6) | D |
| AGM 65-12 | 12 | 65 | 350 | 167 | 182 | 182 | 17.5 | F5(M8)/F11(M6) | C |
| AGM 80-12 | 12 | 80 | 260 | 169 | 211 | 216 | 22.0 | F15(M6)/F11(M6) | C |
| AGM 80-12 | 12 | 80 | 350 | 167 | 182 | 182 | 21.5 | F5(M8)/F11(M6) | C |
| AGM 100-12 | 12 | 100 | 328 | 172 | 215 | 220 | 27.0 | F5(M8)/F12(M8)/L7 | C |
| AGM 100-12 | 12 | 100 | 306.5 | 168.5 | 210 | 215 | 26.5 | F15(M6)/F12(M8) | C |
| AGM 100-12 | 12 | 100 | 328 | 172 | 215 | 220 | 27.5 | F5(M8)/F12(M8) | C |
| AGM 120-12 | 12 | 120 | 407 | 177 | 225 | 225 | 32.5 | F5(M8)/F12(M8) | C |

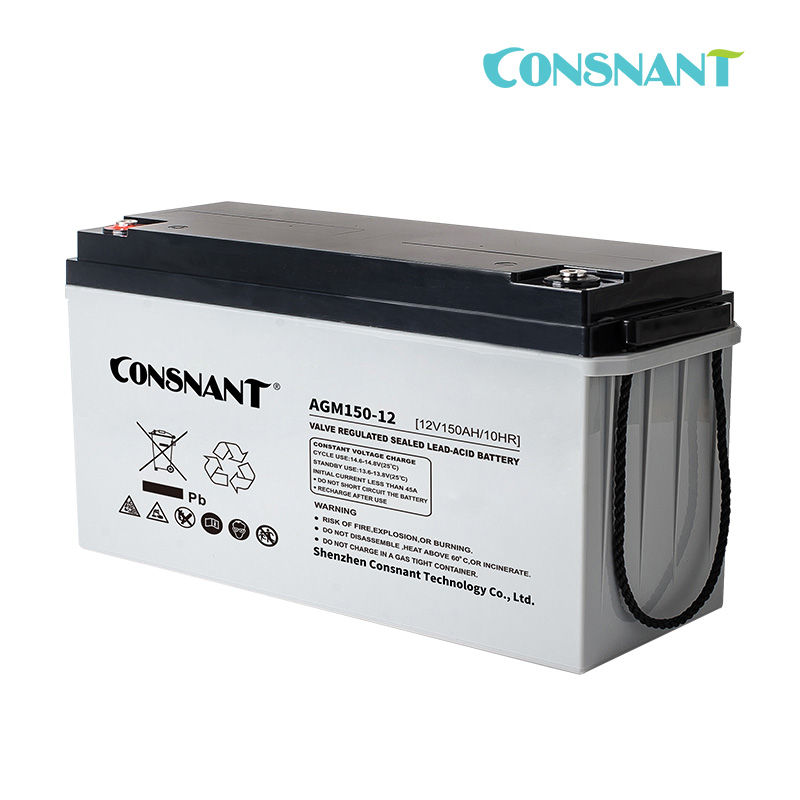

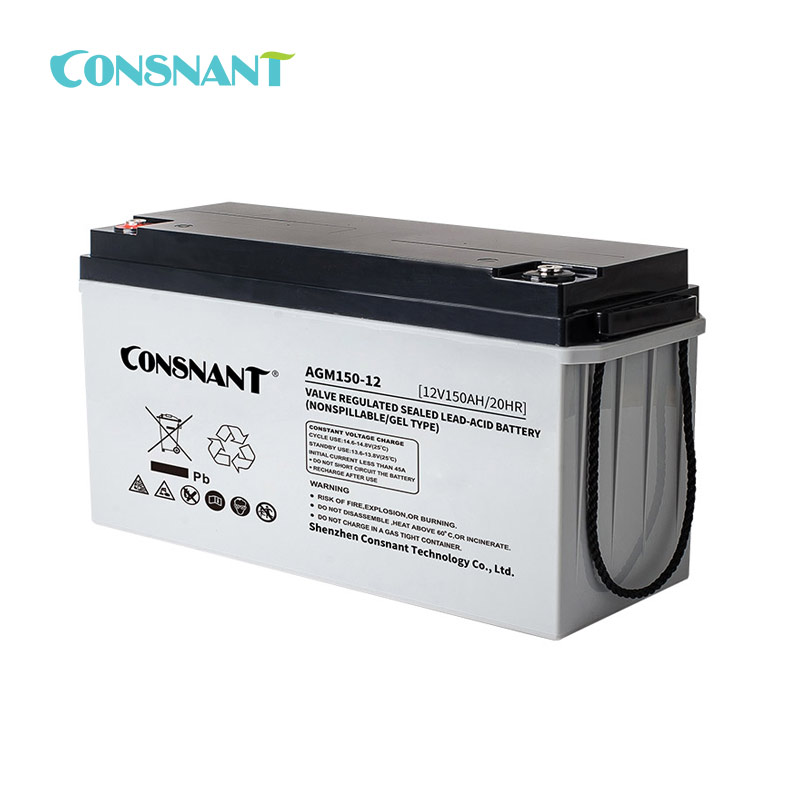

| AGM 150-12 | 12 | 150 | 483 | 170 | 241 | 241 | 43.0 | F5(M8)/F12(M8) | C |

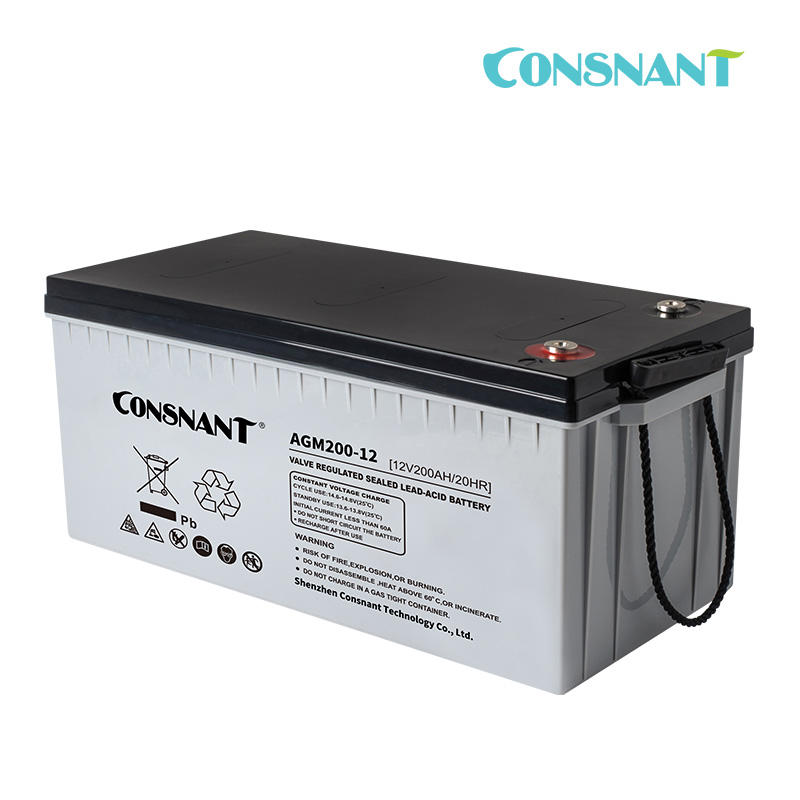

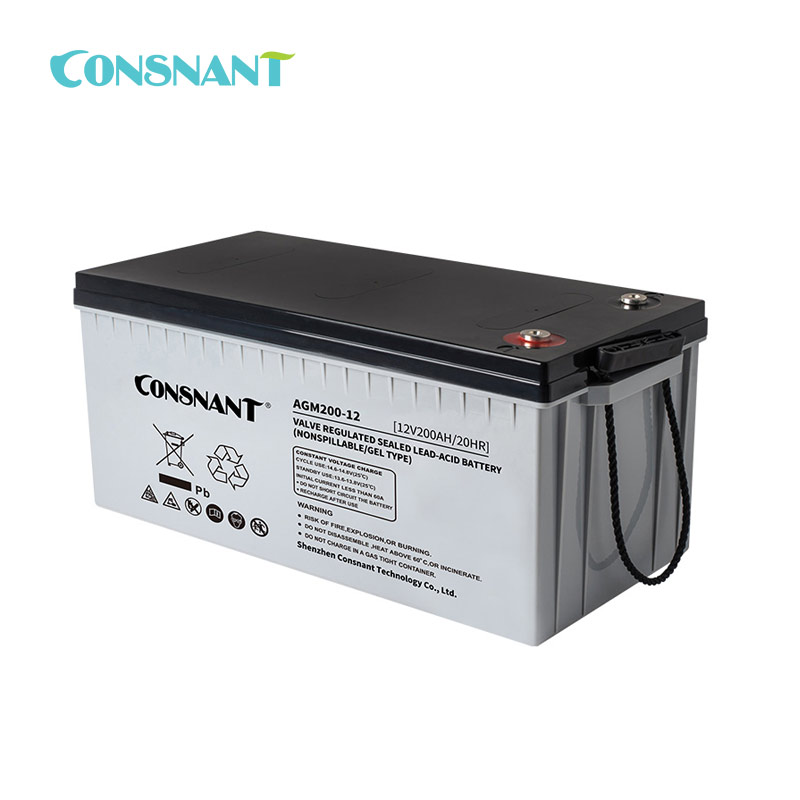

| AGM 200-12 | 12 | 200 | 522 | 240 | 219 | 224 | 56.5 | F16(M8)/F10(M8) | E |

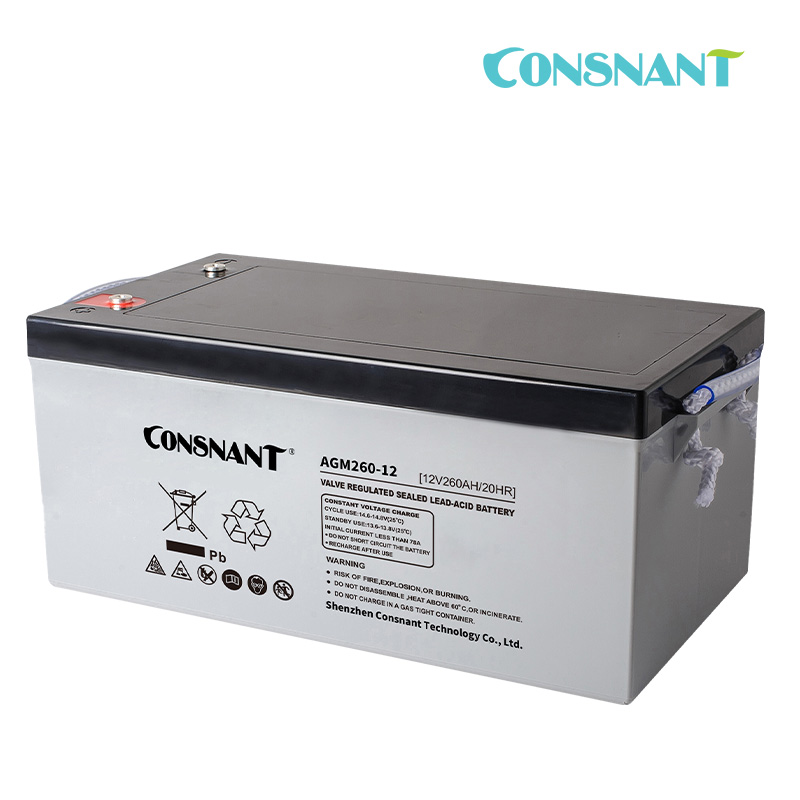

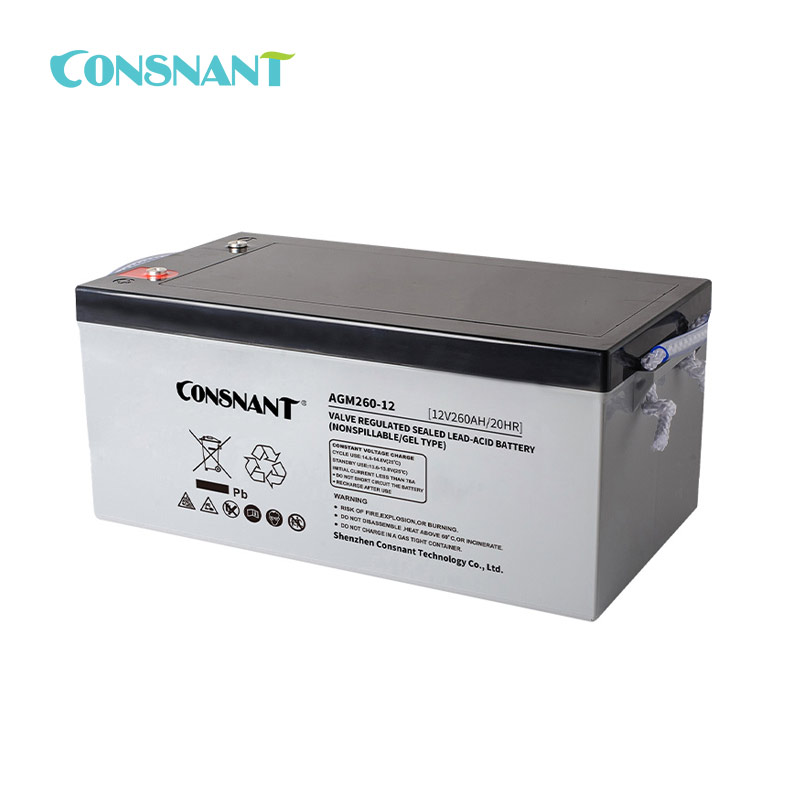

| AGM 260-12 | 12 | 260 | 521 | 268 | 220 | 225 | 70.0 | F14(M8)/L6 | E |
