Model Number:CNB-LA192,CNB-LA240
Capacity Range(C20): 7Ah/9Ah
Nominal Voltage: 192VDC/240VDC
Application:
Supporting rack-mounted UPS, inserted into the cabinet for use;
Data center
Item No :
CNB-LA192,CNB-LA240Order(MOQ) :
50 pcsPayment :
T/TProduct Origin :
ChinaColor :
BlackShipping Port :
ShenzhenLead Time :
2 weeksWeight :
50-62 KgRack Mount Battery Pack 192VDC/240VDC
Description

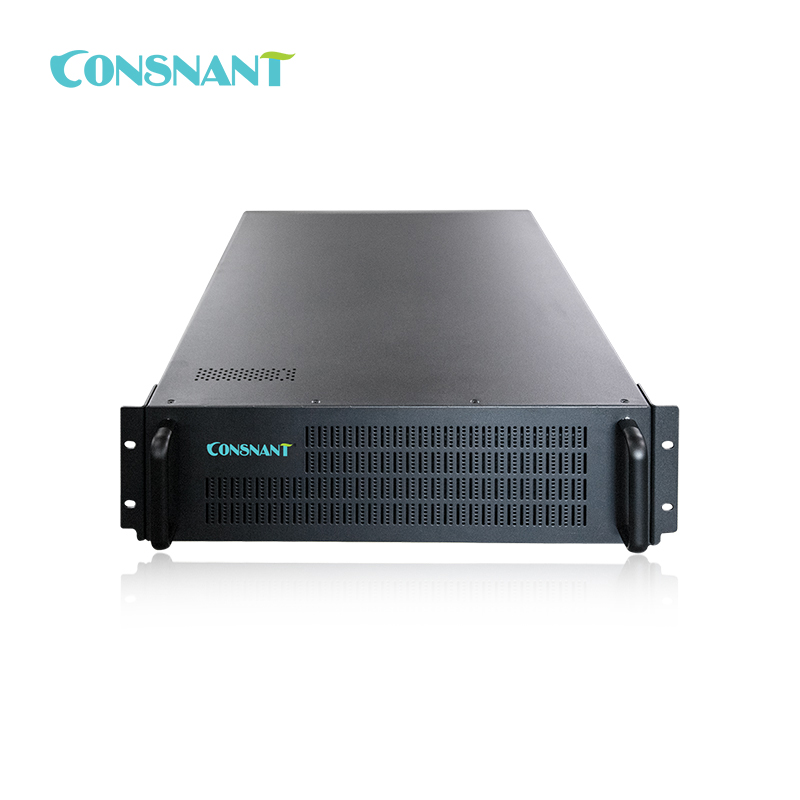

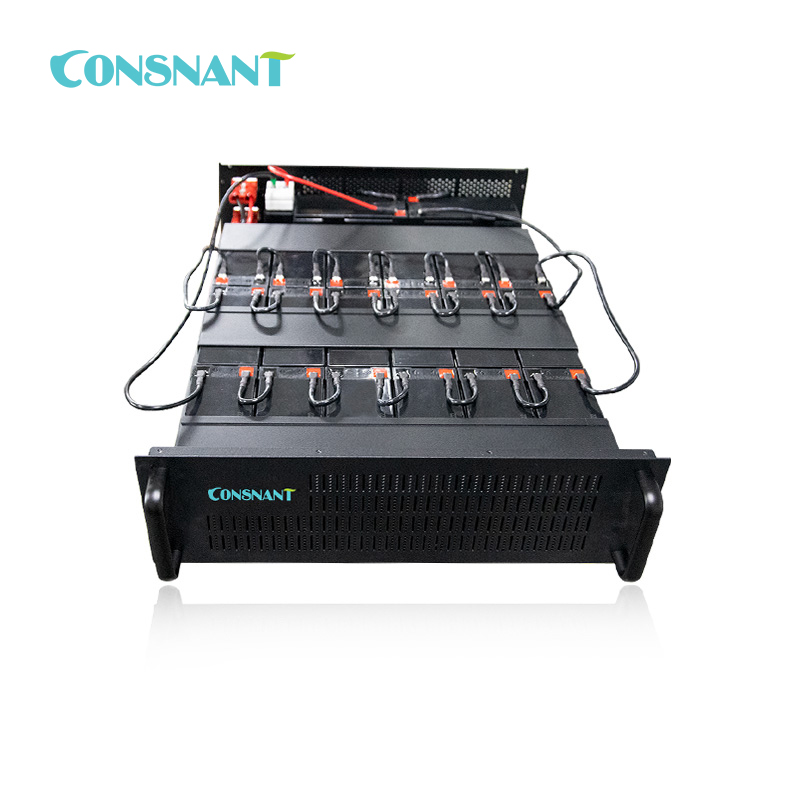

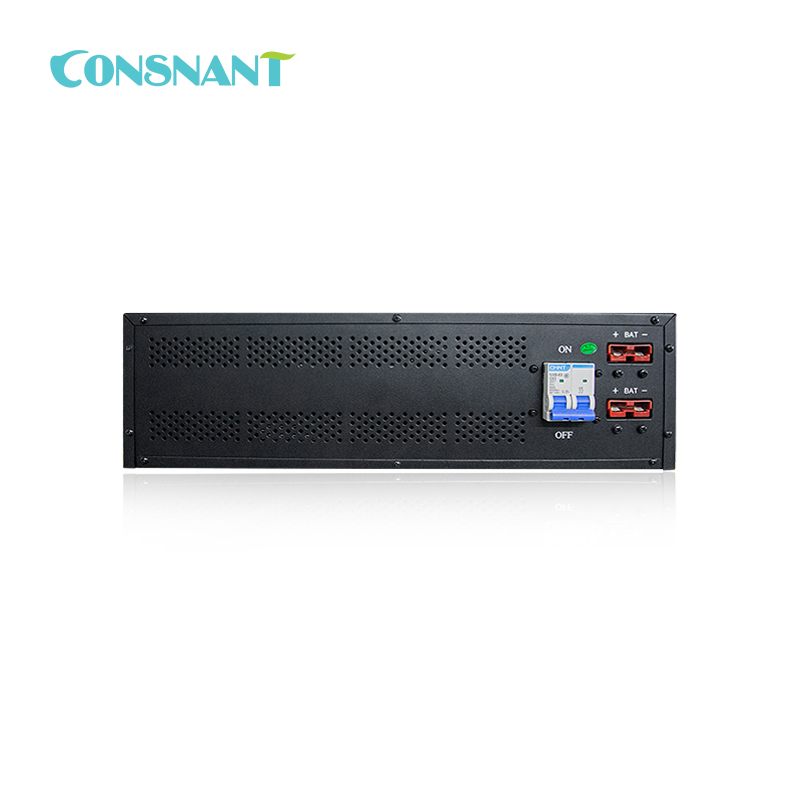

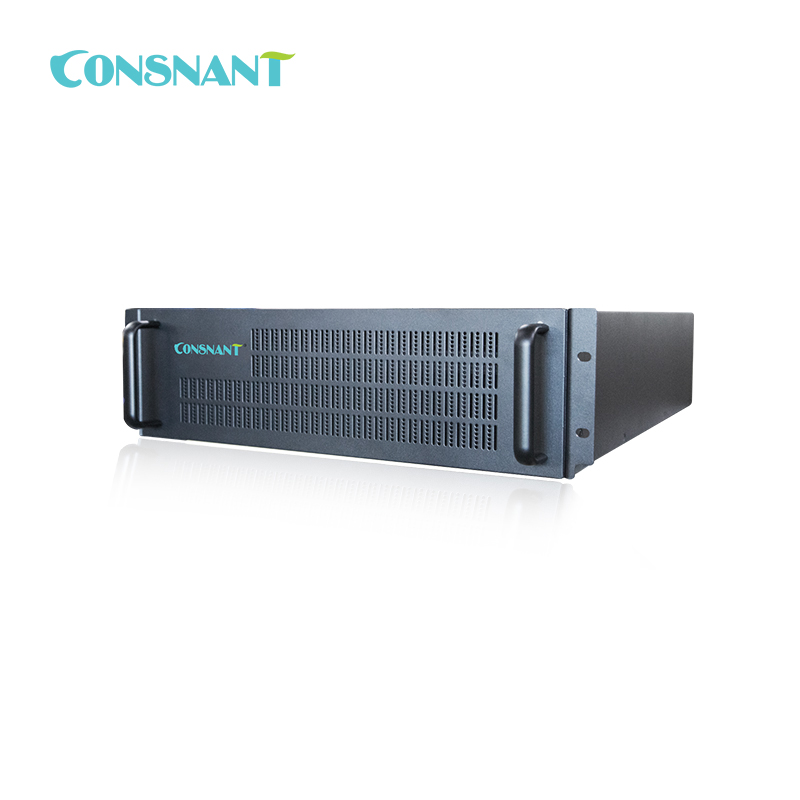

The CNB-LA192/240 rack-mount external battery pack offers extended battery runtime when used in conjunction with expandable CNB-LA192/240 rack-mountable UPS systems.
It includes heavy gauge cabling with high current DC connector for safe & simple installation. Included mounting accessories support 3U rack-mount installation.
Product Highlights:
Technical Parameters:
| Model | CNB-LA192 | CNB-LA240 |
| Capacity(Max) | 192VDC – 7/9Ah | 240VDC – 7/9Ah |
| Input Specification | ||
| Input Phase | For Single & Three Phase UPS Systems | |
| Battery Specification | ||
| Battery Type | VRLA Maintenance Free Sealed Lead Acid Battery | |
| DC System Voltage (VDC) | 192VDC | 240VDC |
| AH Cpacity | 7Ah / 9Ah | |
| Qty In Series | 16 | 20 |
| Standard Charging Current | 4-6 Hours To 90% (Depends On UPS Charging Current) | |
| Environmental Specification | ||
| Operating Temp | 0 - 40 °C | |
| Storage Temperature | -15 - 45 °C | |
| Operating Relative Humidity | 0 - 95 % | |
| Physical Specification | ||
| Material Of Construction | Steel | |
| External Battery Pack Form Factor | Standard 19" Rack Type | |
| Colour | Black | |
| Height | 3U | |
| Size (mm) | 130 X 482.1 X 624.8 (H*W*L) |
130 X 482.1X 624.8(H*W*L) |
| Weight (Kg) | 49.5 | 61.5 |
